phoenix_title wx.lib.agw.aui.auibook.AuiNotebook

AuiNotebook is a notebook control which implements many features common in applications with dockable panes. Specifically, AuiNotebook implements functionality which allows the user to rearrange tab order via drag-and-drop, split the tab window into many different splitter configurations, and toggle through different themes to customize the control’s look and feel.

An effort has been made to try to maintain an API as similar to that of Notebook.

The default theme that is used is AuiDefaultTabArt, which provides a modern, glossy look and feel. The theme can be changed by calling AuiNotebook.SetArtProvider.


class_hierarchy Class Hierarchy

Inheritance diagram for class AuiNotebook:

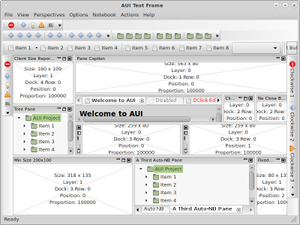

appearance Control Appearance


wxMSW

wxMSW

wxMAC

wxMAC

wxGTK

wxGTK


sub_classes Known Subclasses

wx.lib.agw.aui.tabmdi.AuiMDIClientWindow


super_classes Known Superclasses

wx.Panel


method_summary Methods Summary

__init__

Default class constructor.

AddControlToPage

Adds a control inside a tab (not in the tab area).

AddPage

Adds a page. If the select parameter is True, calling this will generate a

AddTabAreaButton

Adds a button in the tab area.

AdvanceSelection

Cycles through the tabs.

AssignImageList

Sets the image list for the AuiNotebook control.

CalculateNewSplitSize

Calculates the size of the new split.

CalculateTabCtrlHeight

Calculates the tab control area height.

CloneTabAreaButtons

Clones the tab area buttons when the AuiNotebook is being split.

DeletePage

Deletes a page at the given index. Calling this method will generate a page

Destroy

Destroys the window safely.

DoSizing

Performs all sizing operations in each tab control.

EditTab

Starts the editing of an item label, sending a EVT_AUINOTEBOOK_BEGIN_LABEL_EDIT event.

EnableTab

Enables/disables a page in the notebook.

EnsureVisible

Ensures the input page index indx is visible.

FindNextActiveTab

Finds the next active tab (used mainly when AuiNotebook has inactive/disabled

FindTab

Finds the tab control that currently contains the window as well

FloatPage

Float the page in page_index by reparenting it to a floating frame.

GetActiveTabCtrl

Returns the active tab control. It is called to determine which control

GetAGWWindowStyleFlag

Returns the AGW-specific style of the window.

GetArtProvider

Returns the associated art provider.

GetAuiManager

Returns the associated AuiManager.

GetCurrentPage

Returns the currently active page (not the index), or None if none was selected.

GetDefaultBorder

Returns the default border style for AuiNotebook.

GetEnabled

Returns whether the page specified by the index page_idx is enabled.

GetHeightForPageHeight

Gets the height of the notebook for a given page height.

GetHidden

Returns whether the page specified by the index page_idx is hidden.

GetImageList

Returns the associated image list (if any).

GetMinMaxTabWidth

Returns the minimum and the maximum tab widths for AuiNotebook when the

GetPage

Returns the page specified by the given index.

GetPageBitmap

Returns the tab bitmap for the page.

GetPageCount

Returns the number of pages in the notebook.

GetPageImage

Returns the image index for the given page.

GetPageIndex

Returns the page index for the specified window. If the window is not

GetPageInfo

Returns the AuiNotebookPage info structure specified by the given index.

GetPageText

Returns the tab label for the page.

GetPageTextColour

Returns the tab text colour for the page.

GetPageTooltip

Returns the tab tooltip for the page.

GetSashDClickUnsplit

Returns whether a splitted AuiNotebook can be unsplitted by double-clicking

GetSelection

Returns the index of the currently active page, or -1 if none was selected.

GetShownPageCount

Returns the number of pages shown in the notebook.

GetTabContainer

Returns the instance of AuiTabContainer.

GetTabCtrlFromPoint

Returns the tab control at the specified point.

GetTabCtrlHeight

Returns the tab control height.

GetTabFrameFromTabCtrl

Returns the tab frame associated with a tab control.

GetTabFrameFromWindow

Returns the tab frame associated with a window.

HasCloseButton

Returns whether a tab displays a close button or not.

HasMultiplePages

This method should be overridden to return True if this window has multiple pages. All

HideAllTabs

Hides all tabs on the AuiNotebook control.

HidePage

Sets whether a page is hidden.

InitNotebook

Contains common initialization code called by all constructors.

InsertPage

This is similar to AddPage but allows the ability to specify the insert location.

IsMouseWellOutsideWindow

Returns whether the mouse is well outside the AuiNotebook screen rectangle.

IsRenamable

Returns whether a tab can be renamed or not.

LoadPerspective

Loads a layout which was saved with SavePerspective.

NotebookPreview

Generates a preview of all the pages in the notebook (MSW and GTK only).

OnChildFocusNotebook

Handles the wx.EVT_CHILD_FOCUS event for AuiNotebook.

OnCloseFloatingPage

Handles the wx.EVT_CLOSE event for a floating page in AuiNotebook.

OnNavigationKeyNotebook

Handles the wx.EVT_NAVIGATION_KEY event for AuiNotebook.

OnRenameAccept

Called by TabTextCtrl, to accept the changes and to send the

OnRenameCancelled

Called by TabTextCtrl, to cancel the changes and to send the

OnSize

Handles the wx.EVT_SIZE event for AuiNotebook.

OnTabBeginDrag

Handles the EVT_AUINOTEBOOK_BEGIN_DRAG event for AuiNotebook.

OnTabBgDClick

Handles the EVT_AUINOTEBOOK_BG_DCLICK event for AuiNotebook.

OnTabButton

Handles the EVT_AUINOTEBOOK_BUTTON event for AuiNotebook.

OnTabCancelDrag

Handles the EVT_AUINOTEBOOK_CANCEL_DRAG event for AuiNotebook.

OnTabClicked

Handles the EVT_AUINOTEBOOK_PAGE_CHANGING event for AuiNotebook.

OnTabDClick

Handles the EVT_AUINOTEBOOK_TAB_DCLICK event for AuiNotebook.

OnTabDragMotion

Handles the EVT_AUINOTEBOOK_DRAG_MOTION event for AuiNotebook.

OnTabEndDrag

Handles the EVT_AUINOTEBOOK_END_DRAG event for AuiNotebook.

OnTabMiddleDown

Handles the EVT_AUINOTEBOOK_TAB_MIDDLE_DOWN event for AuiNotebook.

OnTabMiddleUp

Handles the EVT_AUINOTEBOOK_TAB_MIDDLE_UP event for AuiNotebook.

OnTabRightDown

Handles the EVT_AUINOTEBOOK_TAB_RIGHT_DOWN event for AuiNotebook.

OnTabRightUp

Handles the EVT_AUINOTEBOOK_TAB_RIGHT_UP event for AuiNotebook.

ReDockPage

Re-docks a floating AuiNotebook tab in the original position, when possible.

RemoveControlFromPage

Removes a control from a tab (not from the tab area).

RemoveEmptyTabFrames

Removes all the empty tab frames.

RemovePage

Removes a page, without deleting the window pointer.

RemoveTabAreaButton

Removes a button from the tab area.

ReparentControl

Reparents a control added inside a tab.

ResetTextControl

Called by TabTextCtrl when it marks itself for deletion.

SavePerspective

Saves the entire user interface layout into an encoded string, which can then

SetAGWWindowStyleFlag

Sets the AGW-specific style of the window.

SetArtProvider

Sets the art provider to be used by the notebook.

SetCloseButton

Sets whether a tab should display a close button or not.

SetFont

Sets the tab font.

SetImageList

Sets the image list for the AuiNotebook control.

SetMeasuringFont

Sets the font for calculating text measurements.

SetMinMaxTabWidth

Sets the minimum and/or the maximum tab widths for AuiNotebook when the

SetNavigatorIcon

Sets the icon used by the TabNavigatorWindow.

SetNormalFont

Sets the normal font for drawing tab labels.

SetPageBitmap

Sets the tab bitmap for the page.

SetPageImage

Sets the image index for the given page.

SetPageText

Sets the tab label for the page.

SetPageTextColour

Sets the tab text colour for the page.

SetPageTooltip

Sets the tab tooltip for the page.

SetRenamable

Sets whether a tab can be renamed via a left double-click or not.

SetSashDClickUnsplit

Sets whether to unsplit a splitted AuiNotebook when double-clicking on a sash.

SetSelectedFont

Sets the selected tab font for drawing tab labels.

SetSelection

Sets the page selection. Calling this method will generate a page change event.

SetSelectionToPage

Sets the selection based on the input page.

SetSelectionToWindow

Sets the selection based on the input window win.

SetTabCtrlHeight

Sets the tab height.

SetUniformBitmapSize

Ensures that all tabs will have the same height, even if some tabs don’t have bitmaps.

ShowWindowMenu

Shows the window menu for the active tab control associated with this

Split

Performs a split operation programmatically.

UnSplit

Restores original view after a tab split.

UnsplitDClick

Unsplit the AuiNotebook on sash double-click.

UpdateHintWindowSize

Updates the AuiManager hint window size.

UpdateTabCtrlHeight

UpdateTabCtrlHeight does the actual tab resizing. It’s meant


property_summary Properties Summary

NavigatorProps


api Class API

class AuiNotebook(wx.Panel)

AuiNotebook is a notebook control which implements many features common in applications with dockable panes. Specifically, AuiNotebook implements functionality which allows the user to rearrange tab order via drag-and-drop, split the tab window into many different splitter configurations, and toggle through different themes to customize the control’s look and feel.

An effort has been made to try to maintain an API as similar to that of Notebook.

The default theme that is used is AuiDefaultTabArt, which provides a modern, glossy look and feel. The theme can be changed by calling AuiNotebook.SetArtProvider.


Methods

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0, agwStyle=AUI_NB_DEFAULT_STYLE, name="AuiNotebook")

Default class constructor.

Parameters:
  • parent (wx.Window) – the AuiNotebook parent;

  • id (integer) – an identifier for the control: a value of -1 is taken to mean a default;

  • pos (wx.Point) – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

  • size (wx.Size) – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

  • style (integer) – the underlying Panel window style;

  • agwStyle (integer) – the AGW-specific window style. This can be a combination of the following bits:

    Flag name

    Description

    AUI_NB_TOP

    With this style, tabs are drawn along the top of the notebook

    AUI_NB_LEFT

    With this style, tabs are drawn along the left of the notebook. Not implemented yet.

    AUI_NB_RIGHT

    With this style, tabs are drawn along the right of the notebook. Not implemented yet.

    AUI_NB_BOTTOM

    With this style, tabs are drawn along the bottom of the notebook

    AUI_NB_TAB_SPLIT

    Allows the tab control to be split by dragging a tab

    AUI_NB_TAB_MOVE

    Allows a tab to be moved horizontally by dragging

    AUI_NB_TAB_EXTERNAL_MOVE

    Allows a tab to be moved to another tab control

    AUI_NB_TAB_FIXED_WIDTH

    With this style, all tabs have the same width

    AUI_NB_SCROLL_BUTTONS

    With this style, left and right scroll buttons are displayed

    AUI_NB_WINDOWLIST_BUTTON

    With this style, a drop-down list of windows is available

    AUI_NB_CLOSE_BUTTON

    With this style, a close button is available on the tab bar

    AUI_NB_CLOSE_ON_ACTIVE_TAB

    With this style, a close button is available on the active tab

    AUI_NB_CLOSE_ON_ALL_TABS

    With this style, a close button is available on all tabs

    AUI_NB_MIDDLE_CLICK_CLOSE

    Allows to close AuiNotebook tabs by mouse middle button click

    AUI_NB_SUB_NOTEBOOK

    This style is used by AuiManager to create automatic AuiNotebooks

    AUI_NB_HIDE_ON_SINGLE_TAB

    Hides the tab window if only one tab is present

    AUI_NB_SMART_TABS

    Use Smart Tabbing, like Alt + Tab on Windows

    AUI_NB_USE_IMAGES_DROPDOWN

    Uses images on dropdown window list menu instead of check items

    AUI_NB_CLOSE_ON_TAB_LEFT

    Draws the tab close button on the left instead of on the right (a la Camino browser)

    AUI_NB_TAB_FLOAT

    Allows the floating of single tabs. Known limitation: when the notebook is more or less full screen, tabs cannot be dragged far enough outside of the notebook to become floating pages

    AUI_NB_DRAW_DND_TAB

    Draws an image representation of a tab while dragging (on by default)

    AUI_NB_ORDER_BY_ACCESS

    Tab navigation order by last access time for the tabs

    AUI_NB_NO_TAB_FOCUS

    Don’t draw tab focus rectangle

    Default value for agwStyle is: AUI_NB_DEFAULT_STYLE = AUI_NB_TOP | AUI_NB_TAB_SPLIT | AUI_NB_TAB_MOVE | AUI_NB_SCROLL_BUTTONS | AUI_NB_CLOSE_ON_ACTIVE_TAB | AUI_NB_MIDDLE_CLICK_CLOSE | AUI_NB_DRAW_DND_TAB

  • name (string) – the window name.



AddControlToPage(self, page_idx, control)

Adds a control inside a tab (not in the tab area).

Parameters:
  • page_idx (integer) – the page index;

  • control (wx.Window) – almost any wx.Window -derived instance to be located inside a tab.



AddPage(self, page, caption, select=False, bitmap=wx.NullBitmap, disabled_bitmap=wx.NullBitmap, control=None, tooltip="")

Adds a page. If the select parameter is True, calling this will generate a page change event.

Parameters:
  • page (wx.Window) – the page to be added;

  • caption (string) – specifies the text for the new page;

  • select (bool) – specifies whether the page should be selected;

  • bitmap (wx.Bitmap) – the bitmap to display in the enabled tab;

  • disabled_bitmap (wx.Bitmap) – the bitmap to display in the disabled tab;

  • control (wx.Window) – almost any wx.Window -derived instance to be located inside a tab;

  • tooltip (string) – the tooltip to display when the mouse hovers over the tab.



AddTabAreaButton(self, id, location, normal_bitmap=wx.NullBitmap, disabled_bitmap=wx.NullBitmap, name="")

Adds a button in the tab area.

Parameters:
  • id (integer) – the button identifier. This can be one of the following:

    Button Identifier

    Description

    AUI_BUTTON_CLOSE

    Shows a close button on the tab area

    AUI_BUTTON_WINDOWLIST

    Shows a window list button on the tab area

    AUI_BUTTON_LEFT

    Shows a left button on the tab area

    AUI_BUTTON_RIGHT

    Shows a right button on the tab area

  • location (integer) – the button location. Can be wx.LEFT or wx.RIGHT;

  • normal_bitmap (wx.Bitmap) – the bitmap for an enabled tab;

  • disabled_bitmap (wx.Bitmap) – the bitmap for a disabled tab;

  • name (string) – the button name.



AdvanceSelection(self, forward=True, wrap=True)

Cycles through the tabs.

Parameters:
  • forward (bool) – whether to advance forward or backward;

  • wrap (bool) – True to return to the first tab if we reach the last tab.

Note

The call to this function generates the page changing events.



AssignImageList(self, imageList)

Sets the image list for the AuiNotebook control.

Parameters:

imageList – an instance of wx.ImageList.



CalculateNewSplitSize(self)

Calculates the size of the new split.



CalculateTabCtrlHeight(self)

Calculates the tab control area height.



CloneTabAreaButtons(self)

Clones the tab area buttons when the AuiNotebook is being split.

See also

AddTabAreaButton

Note

Standard buttons for AuiNotebook are not cloned, only custom ones.



DeletePage(self, page_idx)

Deletes a page at the given index. Calling this method will generate a page change event.

Parameters:

page_idx (integer) – the page index to be deleted.

Note

DeletePage removes a tab from the multi-notebook, and destroys the window as well.

See also

RemovePage



Destroy(self)

Destroys the window safely.

Use this function instead of the del operator, since different window classes can be destroyed differently. Frames and dialogs are not destroyed immediately when this function is called – they are added to a list of windows to be deleted on idle time, when all the window’s events have been processed. This prevents problems with events being sent to non-existent windows.

Returns:

True if the window has either been successfully deleted, or it has been added to the list of windows pending real deletion.

Note

This method has been added to safely un-initialize the underlying AuiManager which manages the AuiNotebook layout (i.e., tab split, re-ordering, tab floating etc…).



DoSizing(self)

Performs all sizing operations in each tab control.



EditTab(self, page_index)

Starts the editing of an item label, sending a EVT_AUINOTEBOOK_BEGIN_LABEL_EDIT event.

Parameters:

page_index (integer) – the page index we want to edit.



EnableTab(self, page_idx, enable=True)

Enables/disables a page in the notebook.

Parameters:
  • page_idx (integer) – the page index;

  • enable (bool) – True to enable the page, False to disable it.



EnsureVisible(self, indx)

Ensures the input page index indx is visible.

Parameters:

indx (integer) – the page index.



FindNextActiveTab(self, idx)

Finds the next active tab (used mainly when AuiNotebook has inactive/disabled tabs in it).

Parameters:

idx (integer) – the index of the first (most obvious) tab to check for active status;



FindTab(self, page)

Finds the tab control that currently contains the window as well as the index of the window in the tab control. It returns True if the window was found, otherwise False.

Parameters:

page – an instance of AuiNotebookPage.



FloatPage(self, page_index)

Float the page in page_index by reparenting it to a floating frame.

Parameters:

page_index (integer) – the index of the page to be floated.

Warning

When the notebook is more or less full screen, tabs cannot be dragged far enough outside of the notebook to become floating pages.



GetActiveTabCtrl(self)

Returns the active tab control. It is called to determine which control gets new windows being added.



GetAGWWindowStyleFlag(self)

Returns the AGW-specific style of the window.

See also

SetAGWWindowStyleFlag for a list of possible AGW-specific window styles.



GetArtProvider(self)

Returns the associated art provider.



GetAuiManager(self)

Returns the associated AuiManager.



GetCurrentPage(self)

Returns the currently active page (not the index), or None if none was selected.



GetDefaultBorder(self)

Returns the default border style for AuiNotebook.



GetEnabled(self, page_idx)

Returns whether the page specified by the index page_idx is enabled.

Parameters:

page_idx (integer) – the page index.



GetHeightForPageHeight(self, pageHeight)

Gets the height of the notebook for a given page height.

Parameters:

pageHeight (integer) – the given page height.



GetHidden(self, page_idx)

Returns whether the page specified by the index page_idx is hidden.

Parameters:

page_idx (integer) – the page index.



GetImageList(self)

Returns the associated image list (if any).



GetMinMaxTabWidth(self)

Returns the minimum and the maximum tab widths for AuiNotebook when the AUI_NB_TAB_FIXED_WIDTH style is defined.

Note

Minimum and maximum tabs widths are used only when the AUI_NB_TAB_FIXED_WIDTH style is present.

See also

SetMinMaxTabWidth for more information.



GetPage(self, page_idx)

Returns the page specified by the given index.

Parameters:

page_idx (integer) – the page index.



GetPageBitmap(self, page_idx)

Returns the tab bitmap for the page.

Parameters:

page_idx (integer) – the page index.



GetPageCount(self)

Returns the number of pages in the notebook.



GetPageImage(self, page)

Returns the image index for the given page.

Parameters:

page (integer) – the given page for which to retrieve the image index.



GetPageIndex(self, page_wnd)

Returns the page index for the specified window. If the window is not found in the notebook, wx.NOT_FOUND is returned.

Parameters:

page_wnd (wx.Window) – the window we are looking for.



GetPageInfo(self, page_idx)

Returns the AuiNotebookPage info structure specified by the given index.

Parameters:

page_idx (integer) – the page index.



GetPageText(self, page_idx)

Returns the tab label for the page.

Parameters:

page_idx (integer) – the page index.



GetPageTextColour(self, page_idx)

Returns the tab text colour for the page.

Parameters:

page_idx (integer) – the page index.



GetPageTooltip(self, page_idx)

Returns the tab tooltip for the page.

Parameters:

page_idx (integer) – the page index.



GetSashDClickUnsplit(self)

Returns whether a splitted AuiNotebook can be unsplitted by double-clicking on the splitter sash.



GetSelection(self)

Returns the index of the currently active page, or -1 if none was selected.



GetShownPageCount(self)

Returns the number of pages shown in the notebook.



GetTabContainer(self)

Returns the instance of AuiTabContainer.



GetTabCtrlFromPoint(self, pt)

Returns the tab control at the specified point.

Parameters:

pt (wx.Point) – the mouse location.



GetTabCtrlHeight(self)

Returns the tab control height.



GetTabFrameFromTabCtrl(self, tab_ctrl)

Returns the tab frame associated with a tab control.

Parameters:

tab_ctrl – an instance of AuiTabCtrl.



GetTabFrameFromWindow(self, wnd)

Returns the tab frame associated with a window.

Parameters:

wnd (wx.Window) – the window for which we want to locate the TabFrame.



HasCloseButton(self, page_idx)

Returns whether a tab displays a close button or not.

Parameters:

page_idx (integer) – the page index.

Note

This can only be called if AUI_NB_CLOSE_ON_ALL_TABS is specified.



HasMultiplePages(self)

This method should be overridden to return True if this window has multiple pages. All standard class with multiple pages such as Notebook, Listbook and Treebook already override it to return True and user-defined classes with similar behaviour should do it as well to allow the library to handle such windows appropriately.

Note

Overridden from Panel.



HideAllTabs(self, hidden=True)

Hides all tabs on the AuiNotebook control.

Parameters:

hidden (bool) – if True hides all tabs.



HidePage(self, page_idx, hidden=True)

Sets whether a page is hidden.

Parameters:
  • page_idx (integer) – the page index;

  • hidden (bool) – True to hide the page, False to show it.



InitNotebook(self, agwStyle)

Contains common initialization code called by all constructors.

Parameters:

agwStyle (integer) – the notebook style.

See also

__init__ for a list of available agwStyle bits.



InsertPage(self, page_idx, page, caption, select=False, bitmap=wx.NullBitmap, disabled_bitmap=wx.NullBitmap, control=None, tooltip="")

This is similar to AddPage, but allows the ability to specify the insert location.

Parameters:
  • page_idx (integer) – specifies the position for the new page;

  • page (wx.Window) – the page to be added;

  • caption (string) – specifies the text for the new page;

  • select (bool) – specifies whether the page should be selected;

  • bitmap (wx.Bitmap) – the bitmap to display in the enabled tab;

  • disabled_bitmap (wx.Bitmap) – the bitmap to display in the disabled tab;

  • control (wx.Window) – almost any wx.Window -derived instance to be located inside a ;

  • tooltip (string) – the tooltip to display when the mouse hovers over the tab.



IsMouseWellOutsideWindow(self)

Returns whether the mouse is well outside the AuiNotebook screen rectangle.



IsRenamable(self, page_idx)

Returns whether a tab can be renamed or not.

Parameters:

page_idx (integer) – the page index.

Returns:

True is a page can be renamed, False otherwise.



LoadPerspective(self, layout)

Loads a layout which was saved with SavePerspective.

Parameters:

layout (string) – a string which contains a saved AuiNotebook layout.



NotebookPreview(self, thumbnail_size=200)

Generates a preview of all the pages in the notebook (MSW and GTK only).

Parameters:

thumbnail_size (integer) – the maximum size of every page thumbnail (default=200 pixels).

Note

this functionality is currently unavailable on wxMAC.



OnChildFocusNotebook(self, event)

Handles the wx.EVT_CHILD_FOCUS event for AuiNotebook.

Parameters:

event – a ChildFocusEvent event to be processed.



OnCloseFloatingPage(self, event)

Handles the wx.EVT_CLOSE event for a floating page in AuiNotebook.

Parameters:

event – a CloseEvent event to be processed.



OnNavigationKeyNotebook(self, event)

Handles the wx.EVT_NAVIGATION_KEY event for AuiNotebook.

Parameters:

event – a NavigationKeyEvent event to be processed.



OnRenameAccept(self, page_index, value)

Called by TabTextCtrl, to accept the changes and to send the EVT_AUINOTEBOOK_END_LABEL_EDIT event.

Parameters:
  • page_index (integer) – the page index in the notebook;

  • value (string) – the new label for the tab.



OnRenameCancelled(self, page_index)

Called by TabTextCtrl, to cancel the changes and to send the EVT_AUINOTEBOOK_END_LABEL_EDIT event.

Parameters:

page_index (integer) – the page index in the notebook.



OnSize(self, event)

Handles the wx.EVT_SIZE event for AuiNotebook.

Parameters:

event – a wx.SizeEvent event to be processed.



OnTabBeginDrag(self, event)

Handles the EVT_AUINOTEBOOK_BEGIN_DRAG event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabBgDClick(self, event)

Handles the EVT_AUINOTEBOOK_BG_DCLICK event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabButton(self, event)

Handles the EVT_AUINOTEBOOK_BUTTON event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabCancelDrag(self, event)

Handles the EVT_AUINOTEBOOK_CANCEL_DRAG event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabClicked(self, event)

Handles the EVT_AUINOTEBOOK_PAGE_CHANGING event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabDClick(self, event)

Handles the EVT_AUINOTEBOOK_TAB_DCLICK event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabDragMotion(self, event)

Handles the EVT_AUINOTEBOOK_DRAG_MOTION event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabEndDrag(self, event)

Handles the EVT_AUINOTEBOOK_END_DRAG event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabMiddleDown(self, event)

Handles the EVT_AUINOTEBOOK_TAB_MIDDLE_DOWN event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabMiddleUp(self, event)

Handles the EVT_AUINOTEBOOK_TAB_MIDDLE_UP event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabRightDown(self, event)

Handles the EVT_AUINOTEBOOK_TAB_RIGHT_DOWN event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



OnTabRightUp(self, event)

Handles the EVT_AUINOTEBOOK_TAB_RIGHT_UP event for AuiNotebook.

Parameters:

event – a AuiNotebookEvent event to be processed.



ReDockPage(self, pane)

Re-docks a floating AuiNotebook tab in the original position, when possible.

Parameters:

pane – an instance of AuiPaneInfo.



RemoveControlFromPage(self, page_idx)

Removes a control from a tab (not from the tab area).

Parameters:

page_idx (integer) – the page index.



RemoveEmptyTabFrames(self)

Removes all the empty tab frames.



RemovePage(self, page_idx)

Removes a page, without deleting the window pointer.

Parameters:

page_idx (integer) – the page index to be removed.

Note

RemovePage removes a tab from the multi-notebook, but does not destroy the window.

See also

DeletePage



RemoveTabAreaButton(self, id)

Removes a button from the tab area.

Parameters:

id (integer) – the button identifier.

See also

AddTabAreaButton for a list of button identifiers.



ReparentControl(self, control, dest_tabs)

Reparents a control added inside a tab.

Parameters:


ResetTextControl(self)

Called by TabTextCtrl when it marks itself for deletion.



SavePerspective(self)

Saves the entire user interface layout into an encoded string, which can then be stored by the application (probably using Config). When a perspective is restored using LoadPerspective, the entire user interface will return to the state it was when the perspective was saved.



SetAGWWindowStyleFlag(self, agwStyle)

Sets the AGW-specific style of the window.

Parameters:

agwStyle (integer) – the new window style. This can be a combination of the following bits:

Flag name

Description

AUI_NB_TOP

With this style, tabs are drawn along the top of the notebook

AUI_NB_LEFT

With this style, tabs are drawn along the left of the notebook. Not implemented yet.

AUI_NB_RIGHT

With this style, tabs are drawn along the right of the notebook. Not implemented yet.

AUI_NB_BOTTOM

With this style, tabs are drawn along the bottom of the notebook

AUI_NB_TAB_SPLIT

Allows the tab control to be split by dragging a tab

AUI_NB_TAB_MOVE

Allows a tab to be moved horizontally by dragging

AUI_NB_TAB_EXTERNAL_MOVE

Allows a tab to be moved to another tab control

AUI_NB_TAB_FIXED_WIDTH

With this style, all tabs have the same width

AUI_NB_SCROLL_BUTTONS

With this style, left and right scroll buttons are displayed

AUI_NB_WINDOWLIST_BUTTON

With this style, a drop-down list of windows is available

AUI_NB_CLOSE_BUTTON

With this style, a close button is available on the tab bar

AUI_NB_CLOSE_ON_ACTIVE_TAB

With this style, a close button is available on the active tab

AUI_NB_CLOSE_ON_ALL_TABS

With this style, a close button is available on all tabs

AUI_NB_MIDDLE_CLICK_CLOSE

Allows to close AuiNotebook tabs by mouse middle button click

AUI_NB_SUB_NOTEBOOK

This style is used by AuiManager to create automatic AuiNotebooks

AUI_NB_HIDE_ON_SINGLE_TAB

Hides the tab window if only one tab is present

AUI_NB_SMART_TABS

Use Smart Tabbing, like Alt + Tab on Windows

AUI_NB_USE_IMAGES_DROPDOWN

Uses images on dropdown window list menu instead of check items

AUI_NB_CLOSE_ON_TAB_LEFT

Draws the tab close button on the left instead of on the right (a la Camino browser)

AUI_NB_TAB_FLOAT

Allows the floating of single tabs. Known limitation: when the notebook is more or less full screen, tabs cannot be dragged far enough outside of the notebook to become floating pages

AUI_NB_DRAW_DND_TAB

Draws an image representation of a tab while dragging (on by default)

AUI_NB_ORDER_BY_ACCESS

Tab navigation order by last access time for the tabs

AUI_NB_NO_TAB_FOCUS

Don’t draw tab focus rectangle

Note

Please note that some styles cannot be changed after the window creation and that Refresh might need to be be called after changing the others for the change to take place immediately.

Todo

Implementation of flags AUI_NB_RIGHT and AUI_NB_LEFT.



SetArtProvider(self, art)

Sets the art provider to be used by the notebook.

Parameters:

art – an art provider.



SetCloseButton(self, page_idx, hasCloseButton)

Sets whether a tab should display a close button or not.

Parameters:
  • page_idx (integer) – the page index;

  • hasCloseButton (bool) – True if the page displays a close button.

Note

This can only be called if AUI_NB_CLOSE_ON_ALL_TABS is specified.



SetFont(self, font)

Sets the tab font.

Parameters:

font (wx.Font) – the new font to use to draw tab labels in their normal, un-selected state.

Note

Overridden from Panel.



SetImageList(self, imageList)

Sets the image list for the AuiNotebook control.

Parameters:

imageList (wx.ImageList) – the bitmap image list to associate to AuiNotebook.



SetMeasuringFont(self, font)

Sets the font for calculating text measurements.

Parameters:

font (wx.Font) – the new font to use to measure tab label text extents.



SetMinMaxTabWidth(self, minTabWidth, maxTabWidth)

Sets the minimum and/or the maximum tab widths for AuiNotebook when the AUI_NB_TAB_FIXED_WIDTH style is defined.

Pass -1 to either minTabWidth or maxTabWidth to reset to the default tab width behaviour for AuiNotebook.

Parameters:
  • minTabWidth (integer) – the minimum allowed tab width, in pixels;

  • maxTabWidth (integer) – the maximum allowed tab width, in pixels.

Note

Minimum and maximum tabs widths are used only when the AUI_NB_TAB_FIXED_WIDTH style is present.



SetNavigatorIcon(self, bmp)

Sets the icon used by the TabNavigatorWindow.

Parameters:

bmp (wx.Bitmap) – the new bitmap for the TabNavigatorWindow.



SetNormalFont(self, font)

Sets the normal font for drawing tab labels.

Parameters:

font (wx.Font) – the new font to use to draw tab labels in their normal, un-selected state.



SetPageBitmap(self, page_idx, bitmap)

Sets the tab bitmap for the page.

Parameters:
  • page_idx (integer) – the page index;

  • bitmap (wx.Bitmap) – the bitmap to display on the page tab.



SetPageImage(self, page, image)

Sets the image index for the given page.

Parameters:
  • page (integer) – the page index;

  • image (integer) – an index into the image list which was set with SetImageList.



SetPageText(self, page_idx, text)

Sets the tab label for the page.

Parameters:
  • page_idx (integer) – the page index;

  • text (string) – the new tab label.



SetPageTextColour(self, page_idx, colour)

Sets the tab text colour for the page.

Parameters:
  • page_idx (integer) – the page index;

  • colour (wx.Colour) – the new tab label text colour.



SetPageTooltip(self, page_idx, tooltip)

Sets the tab tooltip for the page.

Parameters:
  • page_idx (integer) – the page index;

  • tooltip (string) – the new tooltip.

Returns:

True if the page tooltip has been set, False otherwise (for example when the input page_idx is greater than the number of pages in the notebook.



SetRenamable(self, page_idx, renamable)

Sets whether a tab can be renamed via a left double-click or not.

Parameters:
  • page_idx (integer) – the page index;

  • renamable (bool) – True if the page can be renamed.



SetSashDClickUnsplit(self, unsplit=True)

Sets whether to unsplit a splitted AuiNotebook when double-clicking on a sash.

Parameters:

unsplit (bool) – True to unsplit on sash double-clicking, False otherwise.



SetSelectedFont(self, font)

Sets the selected tab font for drawing tab labels.

Parameters:

font (wx.Font) – the new font to use to draw tab labels in their selected state.



SetSelection(self, new_page, force=False)

Sets the page selection. Calling this method will generate a page change event.

Parameters:
  • new_page (integer) – the index of the new selection;

  • force (bool) – whether to force the selection or not.



SetSelectionToPage(self, page)

Sets the selection based on the input page.

Parameters:

page – an instance of AuiNotebookPage.



SetSelectionToWindow(self, win)

Sets the selection based on the input window win.

Parameters:

win – a wx.Window derived window.



SetTabCtrlHeight(self, height)

Sets the tab height.

By default, the tab control height is calculated by measuring the text height and bitmap sizes on the tab captions.

Calling this method will override that calculation and set the tab control to the specified height parameter. A call to this method will override any call to SetUniformBitmapSize. Specifying -1 as the height will return the control to its default auto-sizing behaviour.

Parameters:

height (integer) – the tab control area height.



SetUniformBitmapSize(self, size)

Ensures that all tabs will have the same height, even if some tabs don’t have bitmaps. Passing wx.DefaultSize to this method will instruct the control to use dynamic tab height, which is the default behaviour. Under the default behaviour, when a tab with a large bitmap is added, the tab control’s height will automatically increase to accommodate the larger bitmap.

Parameters:

size (wx.Size) – the tab bitmap size.



ShowWindowMenu(self)

Shows the window menu for the active tab control associated with this notebook, and returns True if a selection was made.



Split(self, page, direction)

Performs a split operation programmatically.

Parameters:
  • page (integer) – indicates the page that will be split off. This page will also become the active page after the split.

  • direction (integer) – specifies where the pane should go, it should be one of the following: wx.TOP, wx.BOTTOM, wx.LEFT, or wx.RIGHT.



UnSplit(self)

Restores original view after a tab split.



UnsplitDClick(self, part, sash_size, pos)

Unsplit the AuiNotebook on sash double-click.

Parameters:
  • part – an UI part representing the sash;

  • sash_size (integer) – the sash size;

  • pos (wx.Point) – the double-click mouse position.

Warning

Due to a bug on MSW, for disabled pages FindWindowAtPoint returns the wrong window. See http://trac.wxwidgets.org/ticket/2942



UpdateHintWindowSize(self)

Updates the AuiManager hint window size.



UpdateTabCtrlHeight(self, force=False)

UpdateTabCtrlHeight does the actual tab resizing. It’s meant to be used internally.

Parameters:

force (bool) – True to force the tab art to repaint.
