wx.propgrid.PropertyGrid¶

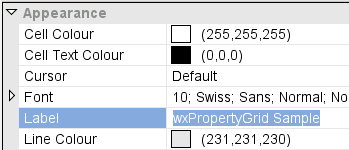

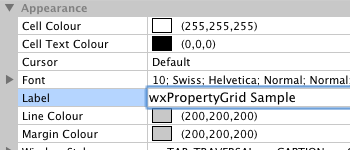

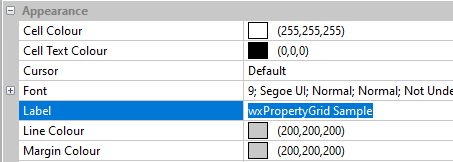

wx.propgrid.PropertyGrid is a specialized grid for editing properties - in other words name = value pairs.

List of ready-to-use property classes include strings, numbers, flag sets, fonts, colours and many others. It is possible, for example, to categorize properties, set up a complete tree-hierarchy, add more than two columns, and set arbitrary per-property attributes.

Please note that most member functions are inherited and as such not documented on this page. This means you will probably also want to read wx.propgrid.PropertyGridInterface class reference.

Window Styles¶

See PropertyGrid Window Styles.

Event Handling¶

Please see wx.propgrid.PropertyGridEvent for the documentation of all event types you can use with wx.propgrid.PropertyGrid.

Note

Use Freeze and Thaw respectively to disable and enable drawing. This will also delay sorting etc. miscellaneous calculations to the last possible moment.

Class Hierarchy¶

Inheritance diagram for class PropertyGrid:

Methods Summary¶

`__init__`	Two step constructor.
`AddActionTrigger`	Adds given key combination to trigger given action.
`AddToSelection`	Adds given property into selection.
`AdjustScrollbars`
`AutoGetTranslation`	This static function enables or disables automatic use of `wx.GetTranslation` for following strings: wx.propgrid.EnumProperty list labels, wx.propgrid.FlagsProperty child property labels.
`BeginLabelEdit`	Creates label editor wx.TextCtrl for given column, for property that is currently selected.
`CalcScrolledPosition`	Translates the logical coordinates to the device ones.
`CalcUnscrolledPosition`	Translates the device coordinates to the logical ones.
`CenterSplitter`	Centers the splitter.
`ChangePropertyValue`	Changes value of a property, as if from an editor.
`Clear`	Deletes all properties.
`ClearActionTriggers`	Clears action triggers for given action.
`CommitChangesFromEditor`	Forces updating the value of property from the editor control.
`Create`	Two step creation.
`DedicateKey`	Dedicates a specific keycode to wx.propgrid.PropertyGrid.
`DisableKeyboardScrolling`	Disable use of keyboard keys for scrolling.
`DoHidePropertyError`	Override in derived class to hide an error displayed by `DoShowPropertyError` .
`DoOnValidationFailure`	Override to customize property validation failure behaviour.
`DoOnValidationFailureReset`	Override to customize resetting of property validation failure status.
`DoPrepareDC`	Call this function to prepare the device context for drawing a scrolled image.
`DoRegisterEditorClass`	Registers a new editor class.
`DoShowPropertyError`	Override in derived class to display error messages in custom manner (these message usually only result from validation failure).
`DrawItemAndValueRelated`	Draws item, children, and consecutive parents as long as category is not met.
`EditorsValueWasModified`	Call when editor widget’s contents is modified.
`EditorsValueWasNotModified`	Reverse of `EditorsValueWasModified` .
`EnableCategories`	Enables or disables (shows/hides) categories according to parameter enable.
`EnableScrolling`	Enable or disable use of `wx.Window.ScrollWindow` for scrolling.
`EndLabelEdit`	Destroys label editor wx.TextCtrl, if any.
`EnsureVisible`	Scrolls and/or expands items to ensure that the given item is visible.
`FitColumns`	Reduces column sizes to minimum possible, while still retaining fully visible grid contents (labels, images).
`GetCaptionBackgroundColour`	Returns current category caption background colour.
`GetCaptionFont`	Returns current category caption font.
`GetCaptionForegroundColour`	Returns current category caption text colour.
`GetCellBackgroundColour`	Returns current cell background colour.
`GetCellDisabledTextColour`	Returns current cell text colour when disabled.
`GetCellTextColour`	Returns current cell text colour.
`GetClassDefaultAttributes`
`GetColumnCount`	Returns number of columns currently on grid.
`GetEditorTextCtrl`	Returns wx.TextCtrl active in currently selected property, if any.
`GetEmptySpaceColour`	Returns colour of empty space below properties.
`GetFontHeight`	Returns height of highest characters of used font.
`GetGrid`	Returns pointer to itself.
`GetImageRect`	Returns rectangle of custom paint image.
`GetImageSize`	Returns size of the custom paint image in front of property.
`GetLabelEditor`	Returns currently active label editor, `None` if none.
`GetLastItem`	Returns last item which could be iterated using given flags.
`GetLineColour`	Returns colour of lines between cells.
`GetMarginColour`	Returns background colour of margin.
`GetMarginWidth`	Returns margin width.
`GetPanel`	Returns wx.Window that the properties are painted on, and which should be used as the parent for editor controls.
`GetRoot`	Returns “root property”.
`GetRowHeight`	Returns height of a single grid row (in pixels).
`GetScaleX`
`GetScaleY`
`GetScrollLines`
`GetScrollPageSize`
`GetScrollPixelsPerUnit`	Get the number of pixels per scroll unit (line), in each direction, as set by `SetScrollbars` .
`GetSelectedProperty`	Returns currently selected property.
`GetSelection`	Returns currently selected property.
`GetSelectionBackgroundColour`	Returns current selection background colour.
`GetSelectionForegroundColour`	Returns current selection text colour.
`GetSizeAvailableForScrollTarget`	Function which must be overridden to implement the size available for the scroll target for the given size of the main window.
`GetSplitterPosition`	Returns current splitter x position.
`GetStatusBar`	Return wx.StatusBar that is used by this wx.propgrid.PropertyGrid.
`GetTargetRect`
`GetTargetWindow`
`GetUncommittedPropertyValue`	Returns most up-to-date value of selected property.
`GetUnspecifiedValueAppearance`	Returns current appearance of unspecified value cells.
`GetUnspecifiedValueText`	Returns (visual) text representation of the unspecified property value.
`GetVerticalSpacing`	Returns current vertical spacing.
`GetViewStart`	Get the position at which the visible portion of the window starts.
`HitTest`	Returns information about arbitrary position in the grid.
`IsAnyModified`	Returns `True` if any property has been modified by the user.
`IsAutoScrolling`	Are we generating the autoscroll events?
`IsEditorFocused`	Returns `True` if a property editor control has focus.
`IsEditorsValueModified`	Returns `True` if editor’s value was marked modified.
`IsFrozen`	Returns `True` if updating is frozen (i.e.
`IsRetained`	Motif only: `True` if the window has a backing bitmap.
`MakeColumnEditable`	Makes given column editable by user.
`OnDraw`	Called by the default paint event handler to allow the application to define painting behaviour without having to worry about calling `DoPrepareDC` .
`OnTLPChanging`	It is recommended that you call this function any time your code causes wx.propgrid.PropertyGrid’s top-level parent to change.
`PrepareDC`	This function is for backwards compatibility only and simply calls `DoPrepareDC` now.
`RefreshEditor`	Refreshes any active editor control.
`RefreshProperty`	Redraws given property.
`RegisterEditorClass`	Forwards to DoRegisterEditorClass with empty name.
`RemoveFromSelection`	Removes given property from selection.
`ResetColours`	Resets all colours to the original system values.
`ResetColumnSizes`	Resets column sizes and splitter positions, based on proportions.
`Scroll`	Scrolls a window so the view start is at the given point.
`SelectProperty`	Selects a property.
`SendAutoScrollEvents`	This method can be overridden in a derived class to forbid sending the auto scroll events - note that unlike `StopAutoScrolling` it doesn’t stop the timer, so it will be called repeatedly and will typically return different values depending on the current mouse position.
`SetCaptionBackgroundColour`	Sets category caption background colour.
`SetCaptionTextColour`	Sets category caption text colour.
`SetCellBackgroundColour`	Sets default cell background colour - applies to property cells.
`SetCellDisabledTextColour`	Sets cell text colour for disabled properties.
`SetCellTextColour`	Sets default cell text colour - applies to property name and value text.
`SetColumnCount`	Set number of columns (2 or more).
`SetCurrentCategory`	Sets the ‘current’ category - Append will add non-category properties under it.
`SetEmptySpaceColour`	Sets colour of empty space below properties.
`SetLineColour`	Sets colour of lines between cells.
`SetMarginColour`	Sets background colour of margin.
`SetScale`
`SetScrollPageSize`
`SetScrollRate`	Set the horizontal and vertical scrolling increment only.
`SetScrollbars`	Sets up vertical and/or horizontal scrollbars.
`SetSelection`	Set entire new selection from given list of properties.
`SetSelectionBackgroundColour`	Sets selection background colour - applies to selected property name background.
`SetSelectionTextColour`	Sets selection foreground colour - applies to selected property name text.
`SetSplitterLeft`	Moves splitter as left as possible, while still allowing all labels to be shown in full.
`SetSplitterPosition`	Sets x coordinate of the splitter.
`SetTargetRect`
`SetTargetWindow`	Call this function to tell wx.Scrolled to perform the actual scrolling on a different window (and not on itself).
`SetUnspecifiedValueAppearance`	Sets appearance of value cells representing an unspecified property value.
`SetVerticalSpacing`	Sets vertical spacing.
`SetVirtualWidth`	Set virtual width for this particular page.
`SetupTextCtrlValue`	Must be called in `wx.propgrid.PGEditor.CreateControls` if primary editor window is wx.TextCtrl, just before textctrl is created.
`ShouldScrollToChildOnFocus`	This method can be overridden in a derived class to prevent scrolling the child window into view automatically when it gets focus.
`ShowPropertyError`	Shows a brief error message that is related to a property.
`ShowScrollbars`	Set the scrollbar visibility.
`StopAutoScrolling`	Stop generating the scroll events when mouse is held outside the window.
`UnfocusEditor`	Unfocuses or closes editor if one was open, but does not deselect property.
`ValueChangeInEvent`	Call this from `wx.propgrid.PGProperty.OnEvent` to cause property value to be changed after the function returns (with `True` as return value).
`WasValueChangedInEvent`	You can use this member function, for instance, to detect in `wx.propgrid.PGProperty.OnEvent` if `wx.propgrid.PGProperty.SetValueInEvent` was already called in `wx.propgrid.PGEditor.OnEvent` .

Properties Summary¶

`CaptionBackgroundColour`	See `GetCaptionBackgroundColour` and `SetCaptionBackgroundColour`
`CaptionFont`	See `GetCaptionFont`
`CaptionForegroundColour`	See `GetCaptionForegroundColour`
`CellBackgroundColour`	See `GetCellBackgroundColour` and `SetCellBackgroundColour`
`CellDisabledTextColour`	See `GetCellDisabledTextColour` and `SetCellDisabledTextColour`
`CellTextColour`	See `GetCellTextColour` and `SetCellTextColour`
`ColumnCount`	See `GetColumnCount` and `SetColumnCount`
`EditorTextCtrl`	See `GetEditorTextCtrl`
`EmptySpaceColour`	See `GetEmptySpaceColour` and `SetEmptySpaceColour`
`FontHeight`	See `GetFontHeight`
`Grid`	See `GetGrid`
`ImageSize`	See `GetImageSize`
`LabelEditor`	See `GetLabelEditor`
`LastItem`	See `GetLastItem`
`LineColour`	See `GetLineColour` and `SetLineColour`
`MarginColour`	See `GetMarginColour` and `SetMarginColour`
`MarginWidth`	See `GetMarginWidth`
`Panel`	See `GetPanel`
`Root`	See `GetRoot`
`RowHeight`	See `GetRowHeight`
`ScaleX`	See `GetScaleX`
`ScaleY`	See `GetScaleY`
`SelectedProperty`	See `GetSelectedProperty`
`Selection`	See `GetSelection` and `SetSelection`
`SelectionBackgroundColour`	See `GetSelectionBackgroundColour` and `SetSelectionBackgroundColour`
`SelectionForegroundColour`	See `GetSelectionForegroundColour`
`SplitterPosition`	See `GetSplitterPosition` and `SetSplitterPosition`
`StatusBar`	See `GetStatusBar`
`TargetRect`	See `GetTargetRect` and `SetTargetRect`
`TargetWindow`	See `GetTargetWindow` and `SetTargetWindow`
`UncommittedPropertyValue`	See `GetUncommittedPropertyValue`
`UnspecifiedValueAppearance`	See `GetUnspecifiedValueAppearance` and `SetUnspecifiedValueAppearance`
`UnspecifiedValueText`	See `GetUnspecifiedValueText`
`VerticalSpacing`	See `GetVerticalSpacing` and `SetVerticalSpacing`

Class API¶

class wx.propgrid.PropertyGrid(Control, PropertyGridInterface)¶

Possible constructors:

PropertyGrid()

PropertyGrid(parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize,
             style=PG_DEFAULT_STYLE, name=PropertyGridNameStr)

PropertyGrid is a specialized grid for editing properties - in other words name = value pairs.

Methods¶

__init__(self, *args, **kw)¶

Overloaded Implementations:

__init__ (self)

Two step constructor.

Call Create when this constructor is called to build up the wx.propgrid.PropertyGrid

__init__ (self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=PG_DEFAULT_STYLE, name=PropertyGridNameStr)

Constructor.

The styles to be used are styles valid for the wx.Window.

Parameters:

parent (wx.Window) –
id (wx.WindowID) –
pos (wx.Point) –
size (wx.Size) –
style (long) –
name (string) –

See also

PropertyGrid Window Styles.

AddActionTrigger(self, action, keycode, modifiers=0)¶

Adds given key combination to trigger given action.

Here is a sample code to make Enter key press move focus to the next property.

propGrid.AddActionTrigger(wx.propgrid.PG_ACTION_NEXT_PROPERTY,
                          wx.WXK_RETURN)
propGrid.DedicateKey(wx.WXK_RETURN)

Parameters:

action (int) – Which action to trigger. See PropertyGrid Action Identifiers.
keycode (int) – Which keycode triggers the action.
modifiers (int) – Which key event modifiers, in addition to keycode, are needed to trigger the action.

AddToSelection(self, id)¶

Adds given property into selection.

If PG_EX_MULTIPLE_SELECTION extra style is not used, then this has same effect as calling SelectProperty .

Parameters:: id (wx.propgrid.PGPropArgCls) –
Return type:: bool

Note

Multiple selection is not supported for categories. This means that if you have properties selected, you cannot add category to selection, and also if you have category selected, you cannot add other properties to selection. This member function will fail silently in these cases, even returning True.

AdjustScrollbars(self)¶

static AutoGetTranslation(enable)¶

This static function enables or disables automatic use of wx.GetTranslation for following strings: wx.propgrid.EnumProperty list labels, wx.propgrid.FlagsProperty child property labels.

Default is False.

Parameters:: enable (bool) –

BeginLabelEdit(self, colIndex=0)¶

Creates label editor wx.TextCtrl for given column, for property that is currently selected.

When multiple selection is enabled, this applies to whatever property GetSelection returns.

Parameters:: colIndex (int) – Which column’s label to edit. Note that you should not use value 1, which is reserved for property value column.

See also

EndLabelEdit , MakeColumnEditable

CalcScrolledPosition(self, *args, **kw)¶

Overloaded Implementations:

CalcScrolledPosition (self, x, y)

Translates the logical coordinates to the device ones.

For example, if a window is scrolled 10 pixels to the bottom, the device coordinates of the origin are (0, 0) (as always), but the logical coordinates are (0, 10) and so the call to CalcScrolledPosition(0, 10, xx, yy) will return 0 in yy.

CalcScrolledPosition (self, pt)

Parameters:: pt (wx.Point) –
Return type:: wx.Point

CalcUnscrolledPosition(self, *args, **kw)¶

Overloaded Implementations:

CalcUnscrolledPosition (self, x, y)

Translates the device coordinates to the logical ones.

For example, if a window is scrolled 10 pixels to the bottom, the device coordinates of the origin are (0, 0) (as always), but the logical coordinates are (0, 10) and so the call to CalcUnscrolledPosition(0, 0, xx, yy) will return 10 in yy.

CalcUnscrolledPosition (self, pt)

Parameters:: pt (wx.Point) –
Return type:: wx.Point

CenterSplitter(self, enableAutoResizing=False)¶

Centers the splitter.

Parameters:: enableAutoResizing (bool) – If True, automatic column resizing is enabled (only applicable if window style PG_SPLITTER_AUTO_CENTER is used).

ChangePropertyValue(self, id, newValue)¶

Changes value of a property, as if from an editor.

Use this instead of SetPropertyValue if you need the value to run through validation process, and also send wxEVT_PG_CHANGED .

Parameters:

id (wx.propgrid.PGPropArgCls) –
newValue (PGVariant) –

Return type:

bool

Returns:

Returns True if value was successfully changed.

Note

Since this function sends wxEVT_PG_CHANGED , it should not be called from EVT_PG_CHANGED handler.

Clear(self)¶: Deletes all properties.

ClearActionTriggers(self, action)¶

Clears action triggers for given action.

Parameters:: action (int) – Which action to trigger. PropertyGrid Action Identifiers.

CommitChangesFromEditor(self, flags=0)¶

Forces updating the value of property from the editor control.

Note that wxEVT_PG_CHANGING and wxEVT_PG_CHANGED are dispatched using ProcessEvent, meaning your event handlers will be called immediately.

Parameters:: flags (wx.int) –
Return type:: bool
Returns:: Returns True if anything was changed.

Create(self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=PG_DEFAULT_STYLE, name=PropertyGridNameStr)¶

Two step creation.

Whenever the control is created without any parameters, use Create to actually create it. Don’t access the control’s public methods before this is called

Parameters:

parent (wx.Window) –
id (wx.WindowID) –
pos (wx.Point) –
size (wx.Size) –
style (long) –
name (string) –

Return type:

bool

See also

PropertyGrid Window Styles.

DedicateKey(self, keycode)¶

Dedicates a specific keycode to wx.propgrid.PropertyGrid.

This means that such key presses will not be redirected to editor controls.

Using this function allows, for example, navigation between properties using arrow keys even when the focus is in the editor control.

Parameters:: keycode (int) –

DisableKeyboardScrolling(self)¶

Disable use of keyboard keys for scrolling.

By default cursor movement keys (including Home, End, Page Up and Down) are used to scroll the window appropriately. If the derived class uses these keys for something else, e.g. changing the currently selected item, this function can be used to disable this behaviour as it’s not only not necessary then but can actually be actively harmful if another object forwards a keyboard event corresponding to one of the above keys to us using ProcessWindowEvent() because the event will always be processed which can be undesirable.

New in version 2.9.1.

DoHidePropertyError(self, property)¶

Override in derived class to hide an error displayed by DoShowPropertyError .

Parameters:: property (wx.propgrid.PGProperty) –

See also

DoShowPropertyError

DoOnValidationFailure(self, property, invalidValue)¶

Override to customize property validation failure behaviour.

Parameters:

property (wx.propgrid.PGProperty) – Property with entered an invalid value
invalidValue (PGVariant) – Value which failed in validation.

Return type:

bool

Returns:

Return True if user is allowed to change to another property even if current has invalid value.

DoOnValidationFailureReset(self, property)¶

Override to customize resetting of property validation failure status.

Parameters:: property (wx.propgrid.PGProperty) –

Note

Property is guaranteed to have flag PG_PROP_INVALID_VALUE set.

DoPrepareDC(self, dc)¶

Call this function to prepare the device context for drawing a scrolled image.

It sets the device origin according to the current scroll position. DoPrepareDC is called automatically within the default wxEVT_PAINT event handler, so your OnDraw override will be passed an already ‘pre-scrolled’ device context. However, if you wish to draw from outside of OnDraw (e.g. from your own wxEVT_PAINT handler), you must call this function yourself.

For example:

def OnEvent(self, event):

    dc = wx.ClientDC(self)
    self.DoPrepareDC(dc)

    dc.SetPen(wx.BLACK_PEN)

    x, y = event.GetPosition()

    if (xpos > -1 and ypos > -1 and event.Dragging()):
        dc.DrawLine(xpos, ypos, x, y)

    xpos = x
    ypos = y

Notice that the function sets the origin by moving it relatively to the current origin position, so you shouldn’t change the origin before calling DoPrepareDC or, if you do, reset it to (0, 0) later. If you call DoPrepareDC immediately after device context creation, as in the example above, this problem doesn’t arise, of course, so it is customary to do it like this.

Parameters:: dc (wx.DC) –

static DoRegisterEditorClass(editor, name, noDefCheck=False)¶

Registers a new editor class.

Parameters:

editor (wx.propgrid.PGEditor) –
name (string) –
noDefCheck (bool) –

Return type:

wx.propgrid.PGEditor

Returns:

Returns pointer to the editor class instance that should be used.

DoShowPropertyError(self, property, msg)¶

Override in derived class to display error messages in custom manner (these message usually only result from validation failure).

Parameters:

property (wx.propgrid.PGProperty) –
msg (string) –

Note

If you implement this, then you also need to implement DoHidePropertyError - possibly to do nothing, if error does not need hiding (e.g. it was logged or shown in a message box).

See also

DoHidePropertyError

DrawItemAndValueRelated(self, p)¶

Draws item, children, and consecutive parents as long as category is not met.

Parameters:: p (wx.propgrid.PGProperty) –

EditorsValueWasModified(self)¶

Call when editor widget’s contents is modified.

For example, this is called when changes text in wx.TextCtrl (used in wx.propgrid.StringProperty and wx.propgrid.IntProperty).

Note

This function should only be called by custom properties.

See also

wx.propgrid.PGProperty.OnEvent

EditorsValueWasNotModified(self)¶: Reverse of EditorsValueWasModified .

Note

This function should only be called by custom properties.

EnableCategories(self, enable)¶

Enables or disables (shows/hides) categories according to parameter enable.

Parameters:: enable (bool) –
Return type:: bool

Note

This functions deselects selected property, if any. Validation failure option PG_VFB_STAY_IN_PROPERTY is not respected, i.e. selection is cleared even if editor had invalid value.

EnableScrolling(self, xScrolling, yScrolling)¶

Enable or disable use of wx.Window.ScrollWindow for scrolling.

By default, when a scrolled window is logically scrolled, wx.Window.ScrollWindow is called on the underlying window which scrolls the window contents and only invalidates the part of the window newly brought into view. If False is passed as an argument, then this “physical scrolling” is disabled and the window is entirely invalidated whenever it is scrolled by calling wx.Window.Refresh .

It should be rarely necessary to disable physical scrolling, so this method shouldn’t be called in normal circumstances.

Parameters:

xScrolling (bool) – If True, enables physical scrolling in the x direction.
yScrolling (bool) – If True, enables physical scrolling in the y direction.

EndLabelEdit(self, commit=True)¶

Destroys label editor wx.TextCtrl, if any.

Parameters:: commit (bool) – Use True (default) to store edited label text in property cell data.

See also

BeginLabelEdit , MakeColumnEditable

EnsureVisible(self, id)¶

Scrolls and/or expands items to ensure that the given item is visible.

Parameters:: id (wx.propgrid.PGPropArgCls) –
Return type:: bool
Returns:: Returns True if something was actually done.

FitColumns(self)¶

Reduces column sizes to minimum possible, while still retaining fully visible grid contents (labels, images).

Return type:: Size
Returns:: Minimum size for the grid to still display everything.

Note

Does not work well with PG_SPLITTER_AUTO_CENTER window style.

GetCaptionBackgroundColour(self)¶

Returns current category caption background colour.

Return type:: Colour

GetCaptionFont(self)¶

Returns current category caption font.

Return type:: Font

GetCaptionForegroundColour(self)¶

Returns current category caption text colour.

Return type:: Colour

GetCellBackgroundColour(self)¶

Returns current cell background colour.

Return type:: Colour

GetCellDisabledTextColour(self)¶

Returns current cell text colour when disabled.

Return type:: Colour

GetCellTextColour(self)¶

Returns current cell text colour.

Return type:: Colour

static GetClassDefaultAttributes(variant=WINDOW_VARIANT_NORMAL)¶

Parameters:: variant (WindowVariant) –
Return type:: VisualAttributes

GetColumnCount(self)¶

Returns number of columns currently on grid.

Return type:: int

GetEditorTextCtrl(self)¶

Returns wx.TextCtrl active in currently selected property, if any.

Takes wx.adv.OwnerDrawnComboBox into account.

Return type:: TextCtrl

GetEmptySpaceColour(self)¶

Returns colour of empty space below properties.

Return type:: Colour

GetFontHeight(self)¶

Returns height of highest characters of used font.

Return type:: int

GetGrid(self)¶

Returns pointer to itself.

Dummy function that enables same kind of code to use wx.propgrid.PropertyGrid and wx.propgrid.PropertyGridManager.

Return type:: wx.propgrid.PropertyGrid

GetImageRect(self, property, item)¶

Returns rectangle of custom paint image.

Parameters:

property (wx.propgrid.PGProperty) – Return image rectangle for this property.
item (int) – Which choice of property to use (each choice may have different image).

Return type:

Rect

GetImageSize(self, property=None, item=-1)¶

Returns size of the custom paint image in front of property.

Parameters:

property (wx.propgrid.PGProperty) – Return image rectangle for this property. If this argument is None, then preferred size is returned.
item (int) – Which choice of property to use (each choice may have different image).

Return type:

Size

GetLabelEditor(self)¶

Returns currently active label editor, None if none.

Return type:: TextCtrl

GetLastItem(self, flags=PG_ITERATE_DEFAULT)¶

Returns last item which could be iterated using given flags.

Parameters:: flags (int) – See PropertyGridIterator Flags.
Return type:: wx.propgrid.PGProperty

GetLineColour(self)¶

Returns colour of lines between cells.

Return type:: Colour

GetMarginColour(self)¶

Returns background colour of margin.

Return type:: Colour

GetMarginWidth(self)¶

Returns margin width.

Return type:: int

GetPanel(self)¶

Returns wx.Window that the properties are painted on, and which should be used as the parent for editor controls.

Return type:: Window

GetRoot(self)¶

Returns “root property”.

It does not have name, etc. and it is not visible. It is only useful for accessing its children.

Return type:: wx.propgrid.PGProperty

GetRowHeight(self)¶

Returns height of a single grid row (in pixels).

Return type:: int

GetScaleX(self)¶

Return type:: float

GetScaleY(self)¶

Return type:: float

GetScrollLines(self, orient)¶

Parameters:: orient (int) –
Return type:: int

GetScrollPageSize(self, orient)¶

Parameters:: orient (int) –
Return type:: int

GetScrollPixelsPerUnit(self)¶

Get the number of pixels per scroll unit (line), in each direction, as set by SetScrollbars .

A value of zero indicates no scrolling in that direction.

Return type:: tuple

GetSelectedProperty(self)¶

Returns currently selected property.

Return type:: wx.propgrid.PGProperty

GetSelection(self)¶

Returns currently selected property.

Return type:: wx.propgrid.PGProperty

GetSelectionBackgroundColour(self)¶

Returns current selection background colour.

Return type:: Colour

GetSelectionForegroundColour(self)¶

Returns current selection text colour.

Return type:: Colour

GetSizeAvailableForScrollTarget(self, size)¶

Function which must be overridden to implement the size available for the scroll target for the given size of the main window.

This method must be overridden if SetTargetWindow is used (it is never called otherwise). The implementation should decrease the size to account for the size of the non-scrollable parts of the main window and return only the size available for the scrollable window itself. E.g. in the example given in SetTargetWindow documentation the function would subtract the height of the header window from the vertical component of size.

Parameters:: size (wx.Size) –
Return type:: wx.Size

GetSplitterPosition(self, splitterIndex=0)¶

Returns current splitter x position.

Parameters:: splitterIndex (int) –
Return type:: int

GetStatusBar(self)¶

Return wx.StatusBar that is used by this wx.propgrid.PropertyGrid.

You can reimplement this member function in derived class to override the default behaviour of using the top-level wx.Frame’s status bar, if any.

Return type:: StatusBar

GetTargetRect(self)¶

Return type:: wx.Rect

GetTargetWindow(self)¶

Return type:: wx.Window

GetUncommittedPropertyValue(self)¶

Returns most up-to-date value of selected property.

This will return value different from GetSelectedProperty .GetValue() only when text editor is activate and string edited by user represents valid, uncommitted property value.

Return type:: PGVariant

GetUnspecifiedValueAppearance(self)¶

Returns current appearance of unspecified value cells.

Return type:: wx.propgrid.PGCell

See also

SetUnspecifiedValueAppearance

GetUnspecifiedValueText(self, argFlags=0)¶

Returns (visual) text representation of the unspecified property value.

Parameters:: argFlags (int) – For internal use only.
Return type:: string

GetVerticalSpacing(self)¶

Returns current vertical spacing.

Return type:: int

GetViewStart(self)¶

Get the position at which the visible portion of the window starts.

Return type:: tuple

HitTest(self, pt)¶

Returns information about arbitrary position in the grid.

Parameters:: pt (wx.Point) – Coordinates in the virtual grid space. You may need to use wx.Scrolled.CalcScrolledPosition for translating wx.propgrid.PropertyGrid client coordinates into something this member function can use.
Return type:: wx.propgrid.PropertyGridHitTestResult

IsAnyModified(self)¶

Returns True if any property has been modified by the user.

Return type:: bool

IsAutoScrolling(self)¶

Are we generating the autoscroll events?

Return type:: bool

IsEditorFocused(self)¶

Returns True if a property editor control has focus.

Return type:: bool

IsEditorsValueModified(self)¶

Returns True if editor’s value was marked modified.

Return type:: bool

IsFrozen(self)¶

Returns True if updating is frozen (i.e.

Freeze called but not yet Thaw ).

Return type:: bool

IsRetained(self)¶

Motif only: True if the window has a backing bitmap.

Return type:: bool

MakeColumnEditable(self, column, editable=True)¶

Makes given column editable by user.

Parameters:

column (int) – The index of the column to make editable.
editable (bool) – Using False here will disable column from being editable.

column must not be equal to 1, as the second column is always editable and can be made read-only only on cell-by-cell basis using:

property.ChangeFlag(wx.propgrid.PG_PROP_READONLY, True)

See also

BeginLabelEdit , EndLabelEdit

OnDraw(self, dc)¶

Called by the default paint event handler to allow the application to define painting behaviour without having to worry about calling DoPrepareDC .

Instead of overriding this function you may also just process the paint event in the derived class as usual, but then you will have to call DoPrepareDC yourself.

Parameters:: dc (wx.DC) –

OnTLPChanging(self, newTLP)¶

It is recommended that you call this function any time your code causes wx.propgrid.PropertyGrid’s top-level parent to change.

wx.propgrid.PropertyGrid’s OnIdle() handler should be able to detect most changes, but it is not perfect.

Parameters:: newTLP (wx.Window) – New top-level parent that is about to be set. Old top-level parent window should still exist as the current one.

Note

This function is automatically called from wx.propgrid.PropertyGrid:: Reparent and wx.propgrid.PropertyGridManager.Reparent . You only need to use it if you reparent wx.propgrid.PropertyGrid indirectly.

PrepareDC(self, dc)¶

This function is for backwards compatibility only and simply calls DoPrepareDC now.

Notice that it is not called by the default paint event handle ( DoPrepareDC is), so overriding this method in your derived class is useless.

Parameters:: dc (wx.DC) –

RefreshEditor(self)¶: Refreshes any active editor control.

RefreshProperty(self, p)¶

Redraws given property.

Parameters:: p (wx.propgrid.PGProperty) –

static RegisterEditorClass(editor, noDefCheck=False)¶

Forwards to DoRegisterEditorClass with empty name.

Parameters:

editor (wx.propgrid.PGEditor) –
noDefCheck (bool) –

Return type:

wx.propgrid.PGEditor

RemoveFromSelection(self, id)¶

Removes given property from selection.

If property is not selected, an assertion failure will occur.

Parameters:: id (wx.propgrid.PGPropArgCls) –
Return type:: bool

ResetColours(self)¶: Resets all colours to the original system values.

ResetColumnSizes(self, enableAutoResizing=False)¶

Resets column sizes and splitter positions, based on proportions.

Parameters:: enableAutoResizing (bool) – If True, automatic column resizing is enabled (only applicable if window style PG_SPLITTER_AUTO_CENTER is used).

Scroll(self, *args, **kw)¶

Overloaded Implementations:

Scroll (self, x, y)

Scrolls a window so the view start is at the given point.

Parameters:

x (int) – The x position to scroll to, in scroll units.
y (int) – The y position to scroll to, in scroll units.

Note

The positions are in scroll units, not pixels, so to convert to pixels you will have to multiply by the number of pixels per scroll increment. If either parameter is wx.DefaultCoord (-1), that position will be ignored (no change in that direction).

Scroll (self, pt)

This is an overload of Scroll ; see that function for more info.

Parameters:: pt (wx.Point) –

SelectProperty(self, id, focus=False)¶

Selects a property.

Editor widget is automatically created, but not focused unless focus is True.

Parameters:

id (wx.propgrid.PGPropArgCls) – Property to select (name or pointer).
focus (bool) – If True, move keyboard focus to the created editor right away.

Return type:

bool

Returns:

returns True if selection finished successfully. Usually only fails if current value in editor is not valid.

Note

In wxWidgets 2.9 and later, this function no longer sends wxEVT_PG_SELECTED .

Note

This clears any previous selection.

SendAutoScrollEvents(self, event)¶

This method can be overridden in a derived class to forbid sending the auto scroll events - note that unlike StopAutoScrolling it doesn’t stop the timer, so it will be called repeatedly and will typically return different values depending on the current mouse position.

The base class version just returns True.

Parameters:: event (wx.ScrollWinEvent) –
Return type:: bool

SetCaptionBackgroundColour(self, col)¶

Sets category caption background colour.

Parameters:: col (wx.Colour) –

SetCaptionTextColour(self, col)¶

Sets category caption text colour.

Parameters:: col (wx.Colour) –

SetCellBackgroundColour(self, col)¶

Sets default cell background colour - applies to property cells.

Note that appearance of editor widgets may not be affected.

Parameters:: col (wx.Colour) –

SetCellDisabledTextColour(self, col)¶

Sets cell text colour for disabled properties.

Parameters:: col (wx.Colour) –

SetCellTextColour(self, col)¶

Sets default cell text colour - applies to property name and value text.

Note that appearance of editor widgets may not be affected.

Parameters:: col (wx.Colour) –

SetColumnCount(self, colCount)¶

Set number of columns (2 or more).

Parameters:: colCount (int) –

SetCurrentCategory(self, id)¶

Sets the ‘current’ category - Append will add non-category properties under it.

Parameters:: id (wx.propgrid.PGPropArgCls) –

SetEmptySpaceColour(self, col)¶

Sets colour of empty space below properties.

Parameters:: col (wx.Colour) –

SetLineColour(self, col)¶

Sets colour of lines between cells.

Parameters:: col (wx.Colour) –

SetMarginColour(self, col)¶

Sets background colour of margin.

Parameters:: col (wx.Colour) –

SetScale(self, xs, ys)¶

Parameters:

xs (float) –
ys (float) –

SetScrollPageSize(self, orient, pageSize)¶

Parameters:

orient (int) –
pageSize (int) –

SetScrollRate(self, xstep, ystep)¶

Set the horizontal and vertical scrolling increment only.

See the pixelsPerUnit parameter in SetScrollbars .

Parameters:

xstep (int) –
ystep (int) –

SetScrollbars(self, pixelsPerUnitX, pixelsPerUnitY, noUnitsX, noUnitsY, xPos=0, yPos=0, noRefresh=False)¶

Sets up vertical and/or horizontal scrollbars.

The first pair of parameters give the number of pixels per ‘scroll step’, i.e. amount moved when the up or down scroll arrows are pressed. The second pair gives the length of scrollbar in scroll steps, which sets the size of the virtual window.

xPos and yPos optionally specify a position to scroll to immediately.

For example, the following gives a window horizontal and vertical scrollbars with 20 pixels per scroll step, and a size of 50 steps (1000 pixels) in each direction:

window.SetScrollbars(20, 20, 50, 50)

wx.Scrolled manages the page size itself, using the current client window size as the page size.

Note that for more sophisticated scrolling applications, for example where scroll steps may be variable according to the position in the document, it will be necessary to derive a new class from wx.Window, overriding OnSize() and adjusting the scrollbars appropriately.

Parameters:

pixelsPerUnitX (int) – Pixels per scroll unit in the horizontal direction.
pixelsPerUnitY (int) – Pixels per scroll unit in the vertical direction.
noUnitsX (int) – Number of units in the horizontal direction.
noUnitsY (int) – Number of units in the vertical direction.
xPos (int) – Position to initialize the scrollbars in the horizontal direction, in scroll units.
yPos (int) – Position to initialize the scrollbars in the vertical direction, in scroll units.
noRefresh (bool) – Will not refresh window if True.

See also

wx.Window.SetVirtualSize

SetSelection(self, newSelection)¶

Set entire new selection from given list of properties.

Parameters:: newSelection (ArrayPGProperty) –

SetSelectionBackgroundColour(self, col)¶

Sets selection background colour - applies to selected property name background.

Parameters:: col (wx.Colour) –

SetSelectionTextColour(self, col)¶

Sets selection foreground colour - applies to selected property name text.

Parameters:: col (wx.Colour) –

SetSplitterLeft(self, privateChildrenToo=False)¶

Moves splitter as left as possible, while still allowing all labels to be shown in full.

Parameters:: privateChildrenToo (bool) – If False, will still allow private children to be cropped.

SetSplitterPosition(self, newxpos, col=0)¶

Sets x coordinate of the splitter.

Parameters:

newxpos (int) –
col (int) –

Note

Splitter position cannot exceed grid size, and therefore setting it during form creation may fail as initial grid size is often smaller than desired splitter position, especially when sizers are being used.

SetTargetRect(self, rect)¶

Parameters:: rect (wx.Rect) –

SetTargetWindow(self, window)¶

Call this function to tell wx.Scrolled to perform the actual scrolling on a different window (and not on itself).

This method is useful when only a part of the window should be scrolled. A typical example is a control consisting of a fixed header and the scrollable contents window: the scrollbars are attached to the main window itself, hence it, and not the contents window must be derived from wx.Scrolled, but only the contents window scrolls when the scrollbars are used. To implement such setup, you need to call this method with the contents window as argument.

Notice that if this method is used, GetSizeAvailableForScrollTarget method must be overridden.

Parameters:: window (wx.Window) –

SetUnspecifiedValueAppearance(self, cell)¶

Sets appearance of value cells representing an unspecified property value.

Default appearance is blank.

Parameters:: cell (wx.propgrid.PGCell) –

Note

If you set the unspecified value to have any textual representation, then that will override “InlineHelp” attribute.

SetVerticalSpacing(self, vspacing)¶

Sets vertical spacing.

Can be 1, 2, or 3 - a value relative to font height. Value of 2 should be default on most platforms.

Parameters:: vspacing (int) –

SetVirtualWidth(self, width)¶

Set virtual width for this particular page.

Width -1 indicates that the virtual width should be disabled.

Parameters:: width (int) –

SetupTextCtrlValue(self, text)¶

Must be called in wx.propgrid.PGEditor.CreateControls if primary editor window is wx.TextCtrl, just before textctrl is created.

Parameters:: text (string) – Initial text value of created wx.TextCtrl.

ShouldScrollToChildOnFocus(self, child)¶

This method can be overridden in a derived class to prevent scrolling the child window into view automatically when it gets focus.

The default behaviour is to scroll this window to show its currently focused child automatically, to ensure that the user can interact with it. This is usually helpful, but can be undesirable for some windows, in which case this method can be overridden to return False for them to prevent any scrolling from taking place when such windows get focus.

Parameters:: child (wx.Window) –
Return type:: bool

New in version 4.1/wxWidgets-3.1.3.

ShowPropertyError(self, id, msg)¶

Shows a brief error message that is related to a property.

Parameters:

id (wx.propgrid.PGPropArgCls) –
msg (string) –

ShowScrollbars(self, horz, vert)¶

Set the scrollbar visibility.

By default the scrollbar in the corresponding direction is only shown if it is needed, i.e. if the virtual size of the scrolled window in this direction is greater than the current physical window size. Using this function the scrollbar visibility can be changed to be:

wx.SHOW_SB_ALWAYS: To always show the scrollbar, even if it is not needed currently (wx``wx.ALWAYS_SHOW_SB`` style can be used during the window creation to achieve the same effect but it applies in both directions).
wx.SHOW_SB_NEVER: To never show the scrollbar at all. In this case the program should presumably provide some other way for the user to scroll the window.
wx.SHOW_SB_DEFAULT: To restore the default behaviour described above.

Note that the window must be created before calling this method.

Parameters:

horz (ScrollbarVisibility) – The desired visibility for the horizontal scrollbar.
vert (ScrollbarVisibility) – The desired visibility for the vertical scrollbar.

New in version 2.9.0.

StopAutoScrolling(self)¶: Stop generating the scroll events when mouse is held outside the window.

UnfocusEditor(self)¶

Unfocuses or closes editor if one was open, but does not deselect property.

Return type:: bool

ValueChangeInEvent(self, variant)¶

Call this from wx.propgrid.PGProperty.OnEvent to cause property value to be changed after the function returns (with True as return value).

ValueChangeInEvent must be used if you wish the application to be able to use wxEVT_PG_CHANGING to potentially veto the given value.

Parameters:: variant (PGVariant) –

WasValueChangedInEvent(self)¶

You can use this member function, for instance, to detect in wx.propgrid.PGProperty.OnEvent if wx.propgrid.PGProperty.SetValueInEvent was already called in wx.propgrid.PGEditor.OnEvent .

It really only detects if was value was changed using wx.propgrid.PGProperty.SetValueInEvent , which is usually used when a ‘picker’ dialog is displayed. If value was written by “normal means” in wx.propgrid.PGProperty.StringToValue or IntToValue(), then this function will return False (on the other hand, wx.propgrid.PGProperty.OnEvent is not even called in those cases).

Return type:: bool

Properties¶

CaptionBackgroundColour¶: See GetCaptionBackgroundColour and SetCaptionBackgroundColour

CaptionFont¶: See GetCaptionFont

CaptionForegroundColour¶: See GetCaptionForegroundColour

CellBackgroundColour¶: See GetCellBackgroundColour and SetCellBackgroundColour

CellDisabledTextColour¶: See GetCellDisabledTextColour and SetCellDisabledTextColour

CellTextColour¶: See GetCellTextColour and SetCellTextColour

ColumnCount¶: See GetColumnCount and SetColumnCount

EditorTextCtrl¶: See GetEditorTextCtrl

EmptySpaceColour¶: See GetEmptySpaceColour and SetEmptySpaceColour

FontHeight¶: See GetFontHeight

Grid¶: See GetGrid

ImageSize¶: See GetImageSize

LabelEditor¶: See GetLabelEditor

LastItem¶: See GetLastItem

LineColour¶: See GetLineColour and SetLineColour

MarginColour¶: See GetMarginColour and SetMarginColour

MarginWidth¶: See GetMarginWidth

Panel¶: See GetPanel

Root¶: See GetRoot

RowHeight¶: See GetRowHeight

ScaleX¶: See GetScaleX

ScaleY¶: See GetScaleY

SelectedProperty¶: See GetSelectedProperty

Selection¶: See GetSelection and SetSelection

SelectionBackgroundColour¶: See GetSelectionBackgroundColour and SetSelectionBackgroundColour

SelectionForegroundColour¶: See GetSelectionForegroundColour

SplitterPosition¶: See GetSplitterPosition and SetSplitterPosition

StatusBar¶: See GetStatusBar

TargetRect¶: See GetTargetRect and SetTargetRect

TargetWindow¶: See GetTargetWindow and SetTargetWindow

UncommittedPropertyValue¶: See GetUncommittedPropertyValue

UnspecifiedValueAppearance¶: See GetUnspecifiedValueAppearance and SetUnspecifiedValueAppearance

UnspecifiedValueText¶: See GetUnspecifiedValueText

VerticalSpacing¶: See GetVerticalSpacing and SetVerticalSpacing

Navigation

wx.propgrid.PropertyGrid¶

Window Styles¶

Event Handling¶

Class Hierarchy¶

Methods Summary¶

Properties Summary¶

Class API¶

Methods¶

Properties¶
