phoenix_title wx.lib.agw.hypertreelist.HyperTreeList

HyperTreeList is a generic widget that combines the multicolumn features of a wx.ListCtrl with the hierarchical features of a wx.TreeCtrl This class does not rely on native native controls, as it is a full owner-drawn tree-list control.

It manages two widgets internally:

TreeListHeaderWindow TreeListMainWindow based off CustomTreeCtrl

These widgets can be obtained by the GetHeaderWindow and GetMainWindow methods respectively althought this shouldn’t be needed in normal usage.

Please note that although the methods are not explicitly defined or documented here, most of the API in TreeListMainWindow and CustomTreeCtrl can be called directly from HyperTreeList via monkey-patched delegates.


class_hierarchy Class Hierarchy

Inheritance diagram for class HyperTreeList:

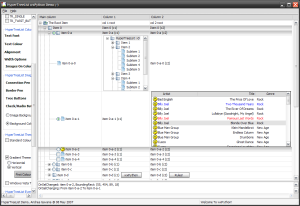

appearance Control Appearance


wxMSW

wxMSW

wxMAC

wxMAC

wxGTK

wxGTK


super_classes Known Superclasses

wx.Control


method_summary Methods Summary

__init__

Default class constructor.

AddColumn

Appends a column to the HyperTreeList.

AddColumnInfo

Appends a column to the HyperTreeList.

CalculateAndSetHeaderHeight

Calculates the best header height and stores it.

CreateEditCtrl

Create an edit control for editing a label of an item. By default, this

delegate

DoGetBestSize

Gets the size which best suits the window: for a control, it would be the

DoHeaderLayout

Layouts the header control.

GetAGWWindowStyleFlag

Returns the HyperTreeList window style flag.

GetColumn

Returns an instance of TreeListColumnInfo containing column information.

GetColumnAlignment

Returns the column text alignment.

GetColumnColour

Returns the column text colour.

GetColumnFont

Returns the column text font.

GetColumnImage

Returns the image assigned to the specified column.

GetColumnText

Returns the column text label.

GetColumnWidth

Returns the column width, in pixels.

GetHeaderWindow

Returns the header window, an instance of TreeListHeaderWindow.

GetMainWindow

Returns the main window, an instance of TreeListMainWindow.

GetTextCtrlAlignmentStyle

Return the alignment style to use for the text control that is used

GetTextCtrlStyle

Return the style to use for the text control that is used to edit

HasAGWFlag

Returns whether a flag is present in the HyperTreeList style.

InsertColumn

Inserts a column to the HyperTreeList at the position specified

InsertColumnInfo

Inserts a column to the HyperTreeList at the position specified

IsColumnEditable

Returns True if the column is editable, False otherwise.

IsColumnShown

Returns True if the column is shown, False otherwise.

OnCompareItems

Returns whether 2 items have the same text.

OnGetItemText

This function must be overloaded in the derived class for a control

OnSize

Handles the wx.EVT_SIZE event for HyperTreeList.

Refresh

Causes this window, and all of its children recursively (except under wxGTK1

RemoveColumn

Removes a column from the HyperTreeList.

SetAGWWindowStyleFlag

Sets the window style for HyperTreeList.

SetBackgroundColour

Changes the background colour of HyperTreeList.

SetBuffered

Sets/unsets the double buffering for the header and the main window.

SetColumn

Sets a column using an instance of TreeListColumnInfo.

SetColumnAlignment

Sets the column text alignment.

SetColumnColour

Sets the column text colour.

SetColumnEditable

Sets the column as editable or non-editable.

SetColumnFont

Sets the column text font.

SetColumnImage

Sets an image on the specified column.

SetColumnShown

Sets the column as shown or hidden.

SetColumnText

Sets the column text label.

SetColumnWidth

Sets the column width, in pixels.

SetFocus

This sets the window to receive keyboard input.

SetFont

Sets the default font for the header window and the main window.

SetForegroundColour

Changes the foreground colour of HyperTreeList.

SetHeaderCustomRenderer

Associate a custom renderer with the header - all columns will use it

SetHeaderFont

Sets the default font for the header window..

SortChildren

Sorts the children of the given item using OnCompareItems method of HyperTreeList.


api Class API

class HyperTreeList(wx.Control)

HyperTreeList is a generic widget that combines the multicolumn features of a wx.ListCtrl with the hierarchical features of a wx.TreeCtrl This class does not rely on native native controls, as it is a full owner-drawn tree-list control.

It manages two widgets internally:

TreeListHeaderWindow TreeListMainWindow based off CustomTreeCtrl

These widgets can be obtained by the GetHeaderWindow and GetMainWindow methods respectively althought this shouldn’t be needed in normal usage.

Please note that although the methods are not explicitly defined or documented here, most of the API in TreeListMainWindow and CustomTreeCtrl can be called directly from HyperTreeList via monkey-patched delegates.


Methods

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0, agwStyle=wx.TR_DEFAULT_STYLE, validator=wx.DefaultValidator, name="HyperTreeList")

Default class constructor.

Parameters
  • parent – parent window. Must not be None;

  • id – window identifier. A value of -1 indicates a default value;

  • pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

  • size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

  • style – the underlying wx.Control style;

  • agwStyle

    the AGW-specific HyperTreeList window style. This can be a combination of the following bits:

    Window Styles

    Hex Value

    Description

    TR_NO_BUTTONS

    0x0

    For convenience to document that no buttons are to be drawn.

    TR_SINGLE

    0x0

    For convenience to document that only one item may be selected at a time. Selecting another item causes the current selection, if any, to be deselected. This is the default.

    TR_HAS_BUTTONS

    0x1

    Use this style to show + and - buttons to the left of parent items.

    TR_NO_LINES

    0x4

    Use this style to hide vertical level connectors.

    TR_LINES_AT_ROOT

    0x8

    Use this style to show lines between root nodes. Only applicable if TR_HIDE_ROOT is set and TR_NO_LINES is not set.

    TR_DEFAULT_STYLE

    0x9

    The set of flags that are closest to the defaults for the native control for a particular toolkit.

    TR_TWIST_BUTTONS

    0x10

    Use old Mac-twist style buttons.

    TR_MULTIPLE

    0x20

    Use this style to allow a range of items to be selected. If a second range is selected, the current range, if any, is deselected.

    TR_EXTENDED

    0x40

    Use this style to allow disjoint items to be selected. (Only partially implemented; may not work in all cases).

    TR_HAS_VARIABLE_ROW_HEIGHT

    0x80

    Use this style to cause row heights to be just big enough to fit the content. If not set, all rows use the largest row height. The default is that this flag is unset.

    TR_EDIT_LABELS

    0x200

    Use this style if you wish the user to be able to edit labels in the tree control.

    TR_ROW_LINES

    0x400

    Use this style to draw a contrasting border between displayed rows.

    TR_HIDE_ROOT

    0x800

    Use this style to suppress the display of the root node, effectively causing the first-level nodes to appear as a series of root nodes.

    TR_COLUMN_LINES

    0x1000

    Use this style to draw a contrasting border between displayed columns.

    TR_FULL_ROW_HIGHLIGHT

    0x2000

    Use this style to have the background colour and the selection highlight extend over the entire horizontal row of the tree control window.

    TR_AUTO_CHECK_CHILD

    0x4000

    Only meaningful for checkbox-type items: when a parent item is checked/unchecked its children are checked/unchecked as well.

    TR_AUTO_TOGGLE_CHILD

    0x8000

    Only meaningful for checkbox-type items: when a parent item is checked/unchecked its children are toggled accordingly.

    TR_AUTO_CHECK_PARENT

    0x10000

    Only meaningful for checkbox-type items: when a child item is checked/unchecked its parent item is checked/unchecked as well.

    TR_ALIGN_WINDOWS

    0x20000

    Flag used to align windows (in items with windows) at the same horizontal position.

    TR_NO_HEADER

    0x40000

    Use this style to hide the columns header.

    TR_ELLIPSIZE_LONG_ITEMS

    0x80000

    Flag used to ellipsize long items when the horizontal space for CustomTreeCtrl is low.

    TR_VIRTUAL

    0x100000

    HyperTreeList will have virtual behaviour.

  • validator – window validator;

  • name – window name.



AddColumn(self, text, width=_DEFAULT_COL_WIDTH, flag=wx.ALIGN_LEFT, image=-1, shown=True, colour=None, edit=False)

Appends a column to the HyperTreeList.

Parameters
  • text – the column text label;

  • width – the column width in pixels;

  • flag – the column alignment flag, one of wx.ALIGN_LEFT, wx.ALIGN_RIGHT, wx.ALIGN_CENTER;

  • image – an index within the normal image list assigned to HyperTreeList specifying the image to use for the column;

  • shownTrue to show the column, False to hide it;

  • colour – a valid wx.Colour, representing the text foreground colour for the column;

  • editTrue to set the column as editable, False otherwise.



AddColumnInfo(self, colInfo)

Appends a column to the HyperTreeList.

Parameters

colInfo – an instance of TreeListColumnInfo.



CalculateAndSetHeaderHeight(self)

Calculates the best header height and stores it.



CreateEditCtrl(self, item, column)

Create an edit control for editing a label of an item. By default, this returns a text control.

Override this function in the derived class to return a different type of control.

Parameters
  • item – an instance of TreeListItem;

  • column – an integer specifying the column index.



delegate(self, *args, **kwargs)


DoGetBestSize(self)

Gets the size which best suits the window: for a control, it would be the minimal size which doesn’t truncate the control, for a panel - the same size as it would have after a call to Fit().

Note

Overridden from wx.Control.



DoHeaderLayout(self)

Layouts the header control.



GetAGWWindowStyleFlag(self)

Returns the HyperTreeList window style flag.

See also

SetAGWWindowStyleFlag for a list of valid window styles.



GetColumn(self, column)

Returns an instance of TreeListColumnInfo containing column information.

Parameters

column – an integer specifying the column index.



GetColumnAlignment(self, column)

Returns the column text alignment.

Parameters

column – an integer specifying the column index.



GetColumnColour(self, column)

Returns the column text colour.

Parameters

column – an integer specifying the column index.



GetColumnFont(self, column)

Returns the column text font.

Parameters

column – an integer specifying the column index.



GetColumnImage(self, column)

Returns the image assigned to the specified column.

Parameters

column – an integer specifying the column index.



GetColumnText(self, column)

Returns the column text label.

Parameters

column – an integer specifying the column index.



GetColumnWidth(self, column)

Returns the column width, in pixels.

Parameters

column – an integer specifying the column index.



GetHeaderWindow(self)

Returns the header window, an instance of TreeListHeaderWindow.



GetMainWindow(self)

Returns the main window, an instance of TreeListMainWindow.



GetTextCtrlAlignmentStyle(self, column)

Return the alignment style to use for the text control that is used to edit labels of items. The alignment style is derived from the column alignment.

Parameters

column – an integer specifying the column index.



GetTextCtrlStyle(self, column)

Return the style to use for the text control that is used to edit labels of items.

Override this function in the derived class to support a different style, e.g. wx.TE_MULTILINE.

Parameters

column – an integer specifying the column index.



HasAGWFlag(self, flag)

Returns whether a flag is present in the HyperTreeList style.

Parameters

flag – one of the possible HyperTreeList window styles.

See also

SetAGWWindowStyleFlag for a list of possible window style flags.



InsertColumn(self, before, text, width=_DEFAULT_COL_WIDTH, flag=wx.ALIGN_LEFT, image=-1, shown=True, colour=None, edit=False)

Inserts a column to the HyperTreeList at the position specified by before.

Parameters
  • before – the index at which we wish to insert the new column;

  • text – the column text label;

  • width – the column width in pixels;

  • flag – the column alignment flag, one of wx.ALIGN_LEFT, wx.ALIGN_RIGHT, wx.ALIGN_CENTER;

  • image – an index within the normal image list assigned to HyperTreeList specifying the image to use for the column;

  • shownTrue to show the column, False to hide it;

  • colour – a valid wx.Colour, representing the text foreground colour for the column;

  • editTrue to set the column as editable, False otherwise.



InsertColumnInfo(self, before, colInfo)

Inserts a column to the HyperTreeList at the position specified by before.

Parameters
  • before – the index at which we wish to insert the new column;

  • colInfo – an instance of TreeListColumnInfo.



IsColumnEditable(self, column)

Returns True if the column is editable, False otherwise.

Parameters

column – an integer specifying the column index.



IsColumnShown(self, column)

Returns True if the column is shown, False otherwise.

Parameters

column – an integer specifying the column index.



OnCompareItems(self, item1, item2)

Returns whether 2 items have the same text.

Override this function in the derived class to change the sort order of the items in the HyperTreeList. The function should return a negative, zero or positive value if the first item is less than, equal to or greater than the second one.

Parameters

Note

The base class version compares items alphabetically.



OnGetItemText(self, item, column)

This function must be overloaded in the derived class for a control with TR_VIRTUAL style. It should return the string containing the text of the given column for the specified item.

Parameters
  • item – an instance of TreeListItem;

  • column – an integer specifying the column index.



OnSize(self, event)

Handles the wx.EVT_SIZE event for HyperTreeList.

Parameters

event – a wx.SizeEvent event to be processed.



Refresh(self, erase=True, rect=None)

Causes this window, and all of its children recursively (except under wxGTK1 where this is not implemented), to be repainted.

Parameters
  • erase – If True, the background will be erased;

  • rect – If not None, only the given rectangle will be treated as damaged.

Note

Note that repainting doesn’t happen immediately but only during the next event loop iteration, if you need to update the window immediately you should use Update instead.

Note

Overridden from wx.Control.



RemoveColumn(self, column)

Removes a column from the HyperTreeList.

Parameters

column – an integer specifying the column index.



SetAGWWindowStyleFlag(self, agwStyle)

Sets the window style for HyperTreeList.

Parameters

agwStyle – can be a combination of the following bits:

Window Styles

Hex Value

Description

TR_NO_BUTTONS

0x0

For convenience to document that no buttons are to be drawn.

TR_SINGLE

0x0

For convenience to document that only one item may be selected at a time. Selecting another item causes the current selection, if any, to be deselected. This is the default.

TR_HAS_BUTTONS

0x1

Use this style to show + and - buttons to the left of parent items.

TR_NO_LINES

0x4

Use this style to hide vertical level connectors.

TR_LINES_AT_ROOT

0x8

Use this style to show lines between root nodes. Only applicable if TR_HIDE_ROOT is set and TR_NO_LINES is not set.

TR_DEFAULT_STYLE

0x9

The set of flags that are closest to the defaults for the native control for a particular toolkit.

TR_TWIST_BUTTONS

0x10

Use old Mac-twist style buttons.

TR_MULTIPLE

0x20

Use this style to allow a range of items to be selected. If a second range is selected, the current range, if any, is deselected.

TR_EXTENDED

0x40

Use this style to allow disjoint items to be selected. (Only partially implemented; may not work in all cases).

TR_HAS_VARIABLE_ROW_HEIGHT

0x80

Use this style to cause row heights to be just big enough to fit the content. If not set, all rows use the largest row height. The default is that this flag is unset.

TR_EDIT_LABELS

0x200

Use this style if you wish the user to be able to edit labels in the tree control.

TR_ROW_LINES

0x400

Use this style to draw a contrasting border between displayed rows.

TR_HIDE_ROOT

0x800

Use this style to suppress the display of the root node, effectively causing the first-level nodes to appear as a series of root nodes.

TR_COLUMN_LINES

0x1000

Use this style to draw a contrasting border between displayed columns.

TR_FULL_ROW_HIGHLIGHT

0x2000

Use this style to have the background colour and the selection highlight extend over the entire horizontal row of the tree control window.

TR_AUTO_CHECK_CHILD

0x4000

Only meaningful for checkbox-type items: when a parent item is checked/unchecked its children are checked/unchecked as well.

TR_AUTO_TOGGLE_CHILD

0x8000

Only meaningful for checkbox-type items: when a parent item is checked/unchecked its children are toggled accordingly.

TR_AUTO_CHECK_PARENT

0x10000

Only meaningful for checkbox-type items: when a child item is checked/unchecked its parent item is checked/unchecked as well.

TR_ALIGN_WINDOWS

0x20000

Flag used to align windows (in items with windows) at the same horizontal position.

TR_NO_HEADER

0x40000

Use this style to hide the columns header.

TR_ELLIPSIZE_LONG_ITEMS

0x80000

Flag used to ellipsize long items when the horizontal space for CustomTreeCtrl is low.

TR_VIRTUAL

0x100000

HyperTreeList will have virtual behaviour.

Note

Please note that some styles cannot be changed after the window creation and that Refresh() might need to be be called after changing the others for the change to take place immediately.



SetBackgroundColour(self, colour)

Changes the background colour of HyperTreeList.

Parameters

colour – the colour to be used as the background colour, pass NullColour to reset to the default colour.

Note

The background colour is usually painted by the default EraseEvent event handler function under Windows and automatically under GTK.

Note

Setting the background colour does not cause an immediate refresh, so you may wish to call wx.Window.ClearBackground or wx.Window.Refresh after calling this function.

Note

Overridden from wx.Control.



SetBuffered(self, buffered)

Sets/unsets the double buffering for the header and the main window.

Parameters

bufferedTrue to use double-buffering, False otherwise.

Note

Currently we are using double-buffering only on Windows XP.



SetColumn(self, column, colInfo)

Sets a column using an instance of TreeListColumnInfo.

Parameters
  • column – an integer specifying the column index;

  • info – an instance of TreeListColumnInfo.



SetColumnAlignment(self, column, flag)

Sets the column text alignment.

Parameters
  • column – an integer specifying the column index;

  • flag – the alignment flag, one of wx.ALIGN_LEFT, wx.ALIGN_RIGHT, wx.ALIGN_CENTER.



SetColumnColour(self, column, colour)

Sets the column text colour.

Parameters
  • column – an integer specifying the column index;

  • colour – a valid wx.Colour object.



SetColumnEditable(self, column, edit)

Sets the column as editable or non-editable.

Parameters
  • column – an integer specifying the column index;

  • editTrue if the column should be editable, False otherwise.



SetColumnFont(self, column, font)

Sets the column text font.

Parameters
  • column – an integer specifying the column index;

  • font – a valid wx.Font object.



SetColumnImage(self, column, image)

Sets an image on the specified column.

Parameters
  • column – an integer specifying the column index.

  • image – an index within the normal image list assigned to HyperTreeList specifying the image to use for the column.



SetColumnShown(self, column, shown)

Sets the column as shown or hidden.

Parameters
  • column – an integer specifying the column index;

  • shownTrue if the column should be shown, False if it should be hidden.



SetColumnText(self, column, text)

Sets the column text label.

Parameters
  • column – an integer specifying the column index;

  • text – the new column label.



SetColumnWidth(self, column, width)

Sets the column width, in pixels.

Parameters
  • column – an integer specifying the column index;

  • width – the new column width, in pixels.



SetFocus(self)

This sets the window to receive keyboard input.



SetFont(self, font)

Sets the default font for the header window and the main window.

Parameters

font – a valid wx.Font object.



SetForegroundColour(self, colour)

Changes the foreground colour of HyperTreeList.

Parameters

colour – the colour to be used as the foreground colour, pass NullColour to reset to the default colour.

Note

Overridden from wx.Control.



SetHeaderCustomRenderer(self, renderer=None)

Associate a custom renderer with the header - all columns will use it

Parameters

renderer – a class able to correctly render header buttons

Note

the renderer class must implement the method DrawHeaderButton



SetHeaderFont(self, font)

Sets the default font for the header window..

Parameters

font – a valid wx.Font object.



SortChildren(self, item)

Sorts the children of the given item using OnCompareItems method of HyperTreeList. You should override that method to change the sort order (the default is ascending case-sensitive alphabetical order).

Parameters

item – an instance of TreeListItem;
