phoenix_title wx.lib.agw.flatnotebook.FlatNotebook

The FlatNotebook is a full implementation of the Notebook, and designed to be a drop-in replacement for Notebook. The API functions are similar so one can expect the function to behave in the same way.


class_hierarchy Class Hierarchy

Inheritance diagram for class FlatNotebook:

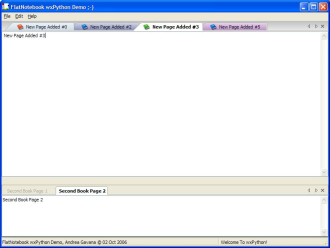

appearance Control Appearance


wxMSW

wxMSW

wxMAC

wxMAC

wxGTK

wxGTK


sub_classes Known Subclasses

wx.lib.agw.flatnotebook.FlatNotebookCompatible


super_classes Known Superclasses

wx.Panel


method_summary Methods Summary

__init__

Default class constructor.

AddPage

Adds a page to the FlatNotebook.

AdvanceSelection

Cycles through the tabs.

AssignImageList

Assigns the image list for the page control.

DeleteAllPages

Deletes all the pages in the FlatNotebook.

DeletePage

Deletes the specified page, and the associated window.

DoGetBestSize

Gets the size which best suits the window: for a control, it would be the

EnableTab

Enables or disables a tab.

EnsureVisible

Ensures that a tab is visible.

GetActiveTabColour

Returns the active tab colour.

GetActiveTabTextColour

Get the active tab text colour.

GetAGWWindowStyleFlag

Returns the FlatNotebook window style.

GetBorderColour

Returns the border colour.

GetCurrentPage

Returns the currently selected notebook page or None if none is selected.

GetCustomPage

Returns a custom panel to show when there are no pages left in FlatNotebook.

GetEnabled

Returns whether a tab is enabled or not.

GetGradientColourBorder

Gets the tab border colour.

GetGradientColourFrom

Gets first gradient colour.

GetGradientColourTo

Gets second gradient colour.

GetImageList

Returns the associated image list.

GetNonActiveTabTextColour

Returns the non active tabs text colour.

GetPadding

Returns the amount of space around each page’s icon and label, in pixels.

GetPage

Returns the window at the given page position, or None.

GetPageBestSize

Return the page best size.

GetPageCount

Returns the number of pages in the FlatNotebook control.

GetPageImage

Returns the image index for the given page.

GetPageIndex

Returns the index at which the window is found.

GetPageShapeAngle

Returns the angle associated to a tab.

GetPageText

Returns the string for the given page.

GetPageTextColour

Returns the tab text colour if it has been set previously, or None otherwise.

GetPreviousSelection

Returns the previous selection.

GetSelection

Returns the currently selected page, or -1 if none was selected.

GetTabArea

Returns the associated page.

GetTabAreaColour

Returns the area behind the tabs colour.

GetTileOrientation

Returns the orientation when on tiling mode. This method can return

HasAGWFlag

Returns whether a flag is present in the FlatNotebook style.

HideTabs

Hides the tabs.

Init

Initializes all the class attributes.

InsertPage

Inserts a new page at the specified position.

OnDropTarget

Handles the drop action from a drag and drop operation.

OnNavigationKey

Handles the wx.EVT_NAVIGATION_KEY event for FlatNotebook.

RemovePage

Deletes the specified page, without deleting the associated window.

SetActiveTabColour

Sets the active tab colour.

SetActiveTabTextColour

Sets the text colour for the active tab.

SetAGWWindowStyleFlag

Sets the FlatNotebook window style flags.

SetAllPagesShapeAngle

Sets the angle associated to all the tab.

SetCustomPage

Sets a custom panel to show when there are no pages left in FlatNotebook.

SetGradientColourBorder

Sets the tab border colour.

SetGradientColourFrom

Sets the starting colour for the gradient.

SetGradientColours

Sets the gradient colours for the tab.

SetGradientColourTo

Sets the ending colour for the gradient.

SetImageList

Sets the image list for the page control.

SetNavigatorIcon

Set the icon used by the TabNavigatorWindow.

SetNonActiveTabTextColour

Sets the non active tabs text colour.

SetPadding

Sets the amount of space around each page’s icon and label, in pixels.

SetPageImage

Sets the image index for the given page.

SetPageShapeAngle

Sets the angle associated to a tab.

SetPageText

Sets the text for the given page.

SetPageTextColour

Sets the tab text colour individually.

SetRightClickMenu

Sets the popup menu associated to a right click on a tab.

SetSelection

Sets the selection for the given page.

SetTabAreaColour

Sets the area behind the tabs colour.

ShowCustomPage

Hides the custom panel which is shown when there are no pages left in FlatNotebook.

ShowTabs

Shows the tabs if hidden previously.

Tile

Shows pages in column/row mode (one panel after the other in columns/rows).


api Class API

class FlatNotebook(wx.Panel)

The FlatNotebook is a full implementation of the Notebook, and designed to be a drop-in replacement for Notebook. The API functions are similar so one can expect the function to behave in the same way.


Methods

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0, agwStyle=0, name="FlatNotebook")

Default class constructor.

Parameters:
  • parent – the FlatNotebook parent;

  • id – an identifier for the control: a value of -1 is taken to mean a default;

  • pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

  • size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

  • style – the underlying Panel window style;

  • agwStyle

    the AGW-specific window style. This can be a combination of the following bits:

    Window Styles

    Hex Value

    Description

    FNB_VC71

    0x1

    Use Visual Studio 2003 (VC7.1) style for tabs.

    FNB_FANCY_TABS

    0x2

    Use fancy style - square tabs filled with gradient colouring.

    FNB_TABS_BORDER_SIMPLE

    0x4

    Draw thin border around the page.

    FNB_NO_X_BUTTON

    0x8

    Do not display the ‘X’ button.

    FNB_NO_NAV_BUTTONS

    0x10

    Do not display the right/left arrows.

    FNB_MOUSE_MIDDLE_CLOSES_TABS

    0x20

    Use the mouse middle button for cloing tabs.

    FNB_BOTTOM

    0x40

    Place tabs at bottom - the default is to place them at top.

    FNB_NODRAG

    0x80

    Disable dragging of tabs.

    FNB_VC8

    0x100

    Use Visual Studio 2005 (VC8) style for tabs.

    FNB_X_ON_TAB

    0x200

    Place ‘X’ close button on the active tab.

    FNB_BACKGROUND_GRADIENT

    0x400

    Use gradients to paint the tabs background.

    FNB_COLOURFUL_TABS

    0x800

    Use colourful tabs (VC8 style only).

    FNB_DCLICK_CLOSES_TABS

    0x1000

    Style to close tab using double click.

    FNB_SMART_TABS

    0x2000

    Use Smart Tabbing, like Alt + Tab on Windows.

    FNB_DROPDOWN_TABS_LIST

    0x4000

    Use a dropdown menu on the left in place of the arrows.

    FNB_ALLOW_FOREIGN_DND

    0x8000

    Allows drag ‘n’ drop operations between different FlatNotebook.

    FNB_HIDE_ON_SINGLE_TAB

    0x10000

    Hides the Page Container when there is one or fewer tabs.

    FNB_DEFAULT_STYLE

    0x10020

    FlatNotebook default style.

    FNB_FF2

    0x20000

    Use Firefox 2 style for tabs.

    FNB_NO_TAB_FOCUS

    0x40000

    Does not allow tabs to have focus.

    FNB_RIBBON_TABS

    0x80000

    Use the Ribbon Tabs style.

    FNB_HIDE_TABS

    0x100000

    Hides the Page Container allowing only keyboard navigation

    FNB_NAV_BUTTONS_WHEN_NEEDED

    0x200000

    Hides the navigation left/right arrows if all tabs fit

  • name – the window name.



AddPage(self, page, text, select=False, imageId=-1)

Adds a page to the FlatNotebook.

Parameters:
  • page – specifies the new page;

  • text – specifies the text for the new page;

  • select – specifies whether the page should be selected;

  • imageId – specifies the optional image index for the new page.

Returns:

True if successful, False otherwise.



AdvanceSelection(self, forward=True)

Cycles through the tabs.

Parameters:

forward – if True, the selection is advanced in ascending order (to the right), otherwise the selection is advanced in descending order.

Note

The call to this function generates the page changing events.



AssignImageList(self, imageList)

Assigns the image list for the page control.

Parameters:

imageList – an instance of wx.ImageList.



DeleteAllPages(self)

Deletes all the pages in the FlatNotebook.



DeletePage(self, page)

Deletes the specified page, and the associated window.

Parameters:

page – an integer specifying the new selected page.

Note

The call to this function generates the page changing events.



DoGetBestSize(self)

Gets the size which best suits the window: for a control, it would be the minimal size which doesn’t truncate the control, for a panel - the same size as it would have after a call to Fit().

Note

Overridden from Panel.



EnableTab(self, page, enabled=True)

Enables or disables a tab.

Parameters:
  • page – an integer specifying the page index;

  • enabledTrue to enable a tab, False to disable it.



EnsureVisible(self, page)

Ensures that a tab is visible.

Parameters:

page – an integer specifying the page index.



GetActiveTabColour(self)

Returns the active tab colour.



GetActiveTabTextColour(self)

Get the active tab text colour.



GetAGWWindowStyleFlag(self)

Returns the FlatNotebook window style.

See also

SetAGWWindowStyleFlag for a list of valid window styles.



GetBorderColour(self)

Returns the border colour.



GetCurrentPage(self)

Returns the currently selected notebook page or None if none is selected.



GetCustomPage(self)

Returns a custom panel to show when there are no pages left in FlatNotebook.



GetEnabled(self, page)

Returns whether a tab is enabled or not.

Parameters:

page – an integer specifying the page index.



GetGradientColourBorder(self)

Gets the tab border colour.



GetGradientColourFrom(self)

Gets first gradient colour.



GetGradientColourTo(self)

Gets second gradient colour.



GetImageList(self)

Returns the associated image list.



GetNonActiveTabTextColour(self)

Returns the non active tabs text colour.



GetPadding(self)

Returns the amount of space around each page’s icon and label, in pixels.



GetPage(self, page)

Returns the window at the given page position, or None.



GetPageBestSize(self)

Return the page best size.



GetPageCount(self)

Returns the number of pages in the FlatNotebook control.



GetPageImage(self, page)

Returns the image index for the given page.

Parameters:

page – an integer specifying the page index.



GetPageIndex(self, win)

Returns the index at which the window is found.

Parameters:

win – an instance of wx.Window.



GetPageShapeAngle(self, page_index)

Returns the angle associated to a tab.

Parameters:

page_index – the index of the tab for which we wish to get the shape angle.



GetPageText(self, page)

Returns the string for the given page.

Parameters:

page – an integer specifying the page index.



GetPageTextColour(self, page)

Returns the tab text colour if it has been set previously, or None otherwise.

Parameters:

page – an integer specifying the page index.



GetPreviousSelection(self)

Returns the previous selection.



GetSelection(self)

Returns the currently selected page, or -1 if none was selected.



GetTabArea(self)

Returns the associated page.



GetTabAreaColour(self)

Returns the area behind the tabs colour.



GetTileOrientation(self)

Returns the orientation when on tiling mode. This method can return wx.VERTICAL when the panels are vertically stacked, wx.HORIZONTAL when they are horizontally stacked panels or None when there is no stacking and FlatNotebook behaves like a normal notebook.



HasAGWFlag(self, flag)

Returns whether a flag is present in the FlatNotebook style.

Parameters:

flag – one of the possible FlatNotebook window styles.

See also

SetAGWWindowStyleFlag for a list of possible window style flags.



HideTabs(self)

Hides the tabs.



Init(self)

Initializes all the class attributes.



InsertPage(self, indx, page, text, select=True, imageId=-1)

Inserts a new page at the specified position.

Parameters:
  • indx – specifies the position of the new page;

  • page – specifies the new page;

  • text – specifies the text for the new page;

  • select – specifies whether the page should be selected;

  • imageId – specifies the optional image index for the new page.

Returns:

True if successful, False otherwise.



OnDropTarget(self, x, y, nTabPage, wnd_oldContainer)

Handles the drop action from a drag and drop operation.

Parameters:
  • x – the x position of the drop action;

  • y – the y position of the drop action;

  • nTabPage – the index of the tab being dropped;

  • wnd_oldContainer – the FlatNotebook to which the dropped tab previously belonged to.



OnNavigationKey(self, event)

Handles the wx.EVT_NAVIGATION_KEY event for FlatNotebook.

Parameters:

event – a NavigationKeyEvent event to be processed.



RemovePage(self, page)

Deletes the specified page, without deleting the associated window.

Parameters:

page – an integer specifying the page index.



SetActiveTabColour(self, colour)

Sets the active tab colour.

Parameters:

colour – a valid wx.Colour object or any typemap supported by wxWidgets/wxPython to generate a colour (i.e., a hex string, a colour name, a 3 or 4 integer tuple).



SetActiveTabTextColour(self, textColour)

Sets the text colour for the active tab.

Parameters:

textColour – a valid wx.Colour object or any typemap supported by wxWidgets/wxPython to generate a colour (i.e., a hex string, a colour name, a 3 or 4 integer tuple).



SetAGWWindowStyleFlag(self, agwStyle)

Sets the FlatNotebook window style flags.

Parameters:

agwStyle

the AGW-specific window style. This can be a combination of the following bits:

Window Styles

Hex Value

Description

FNB_VC71

0x1

Use Visual Studio 2003 (VC7.1) style for tabs.

FNB_FANCY_TABS

0x2

Use fancy style - square tabs filled with gradient colouring.

FNB_TABS_BORDER_SIMPLE

0x4

Draw thin border around the page.

FNB_NO_X_BUTTON

0x8

Do not display the ‘X’ button.

FNB_NO_NAV_BUTTONS

0x10

Do not display the right/left arrows.

FNB_MOUSE_MIDDLE_CLOSES_TABS

0x20

Use the mouse middle button for cloing tabs.

FNB_BOTTOM

0x40

Place tabs at bottom - the default is to place them at top.

FNB_NODRAG

0x80

Disable dragging of tabs.

FNB_VC8

0x100

Use Visual Studio 2005 (VC8) style for tabs.

FNB_X_ON_TAB

0x200

Place ‘X’ close button on the active tab.

FNB_BACKGROUND_GRADIENT

0x400

Use gradients to paint the tabs background.

FNB_COLOURFUL_TABS

0x800

Use colourful tabs (VC8 style only).

FNB_DCLICK_CLOSES_TABS

0x1000

Style to close tab using double click.

FNB_SMART_TABS

0x2000

Use Smart Tabbing, like Alt + Tab on Windows.

FNB_DROPDOWN_TABS_LIST

0x4000

Use a dropdown menu on the left in place of the arrows.

FNB_ALLOW_FOREIGN_DND

0x8000

Allows drag ‘n’ drop operations between different FlatNotebook.

FNB_HIDE_ON_SINGLE_TAB

0x10000

Hides the Page Container when there is one or fewer tabs.

FNB_DEFAULT_STYLE

0x10020

FlatNotebook default style.

FNB_FF2

0x20000

Use Firefox 2 style for tabs.

FNB_NO_TAB_FOCUS

0x40000

Does not allow tabs to have focus.

FNB_RIBBON_TABS

0x80000

Use the Ribbon Tabs style.

FNB_HIDE_TABS

0x100000

Hides the Page Container allowing only keyboard navigation

FNB_NAV_BUTTONS_WHEN_NEEDED

0x200000

Hides the navigation left/right arrows if all tabs fit



SetAllPagesShapeAngle(self, angle)

Sets the angle associated to all the tab.

Parameters:

angle – the new shape angle for the tab (must be less than 15 degrees).



SetCustomPage(self, panel)

Sets a custom panel to show when there are no pages left in FlatNotebook.

Parameters:

panel – any subclass of wx.Window will do, as long as it is suitable to be used as a notebook page. Examples include Panel, ScrolledWindow, and so on.



SetGradientColourBorder(self, border)

Sets the tab border colour.

Parameters:

border – the border colour, an instance of wx.Colour.



SetGradientColourFrom(self, fr)

Sets the starting colour for the gradient.

Parameters:

fr – the first gradient colour, an instance of wx.Colour.



SetGradientColours(self, fr, to, border)

Sets the gradient colours for the tab.

Parameters:
  • fr – the first gradient colour, an instance of wx.Colour;

  • to – the second gradient colour, an instance of wx.Colour;

  • border – the border colour, an instance of wx.Colour.



SetGradientColourTo(self, to)

Sets the ending colour for the gradient.

Parameters:

to – the second gradient colour, an instance of wx.Colour;



SetImageList(self, imageList)

Sets the image list for the page control.

Parameters:

imageList – an instance of wx.ImageList.



SetNavigatorIcon(self, bmp)

Set the icon used by the TabNavigatorWindow.

Parameters:

bmp – a valid wx.Bitmap object.



SetNonActiveTabTextColour(self, colour)

Sets the non active tabs text colour.

Parameters:

colour – a valid wx.Colour object or any typemap supported by wxWidgets/wxPython to generate a colour (i.e., a hex string, a colour name, a 3 or 4 integer tuple).



SetPadding(self, padding)

Sets the amount of space around each page’s icon and label, in pixels.

Parameters:

padding – the amount of space around each page’s icon and label, in pixels.

Note

Only the horizontal padding is considered.



SetPageImage(self, page, image)

Sets the image index for the given page.

Parameters:
  • page – an integer specifying the page index;

  • image – an index into the image list which was set with SetImageList.



SetPageShapeAngle(self, page_index, angle)

Sets the angle associated to a tab.

Parameters:
  • page_index – the index of the tab for which we wish to get the shape angle;

  • angle – the new shape angle for the tab (must be less than 15 degrees).



SetPageText(self, page, text)

Sets the text for the given page.

Parameters:
  • page – an integer specifying the page index;

  • text – the new tab label.



SetPageTextColour(self, page, colour)

Sets the tab text colour individually.

Parameters:
  • page – an integer specifying the page index;

  • colour – a valid wx.Colour object or any typemap supported by wxWidgets/wxPython to generate a colour (i.e., a hex string, a colour name, a 3 or 4 integer tuple). You can pass None or NullColour to return to the default page text colour.



SetRightClickMenu(self, menu)

Sets the popup menu associated to a right click on a tab.

Parameters:

menu – an instance of wx.Menu.



SetSelection(self, page)

Sets the selection for the given page.

Parameters:

page – an integer specifying the new selected page.

Note

The call to this function does not generate the page changing events.



SetTabAreaColour(self, colour)

Sets the area behind the tabs colour.

Parameters:

colour – a valid wx.Colour object or any typemap supported by wxWidgets/wxPython to generate a colour (i.e., a hex string, a colour name, a 3 or 4 integer tuple).



ShowCustomPage(self, show=True)

Hides the custom panel which is shown when there are no pages left in FlatNotebook.



ShowTabs(self)

Shows the tabs if hidden previously.



Tile(self, orient=None)

Shows pages in column/row mode (one panel after the other in columns/rows).

Parameters:

orient – this parameter represents the orientation of the stacked panels. Pass wx.VERTICAL to get vertically stacked panels, wx.HORIZONTAL to get horizontally stacked panels or None to return to the default FlatNotebook behaviour with tabs.
