wx.lib.colourchooser.pycolourchooser.PyColourChooser

A Pure-Python implementation of the colour chooser dialog.

The PyColourChooser is a pure python implementation of the colour chooser dialog. It’s useful for embedding the colour choosing functionality inside other widgets, when the pop-up dialog is undesirable. It can also be used as a drop-in replacement on the GTK platform, as the native dialog is kind of ugly.

Class Hierarchy

Inheritance diagram for class PyColourChooser:

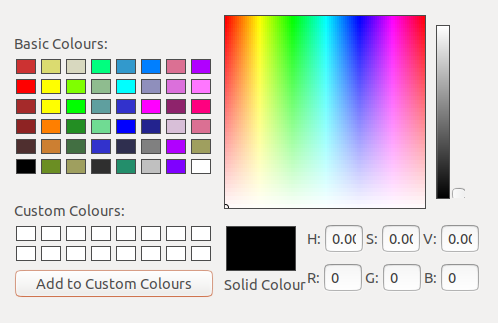

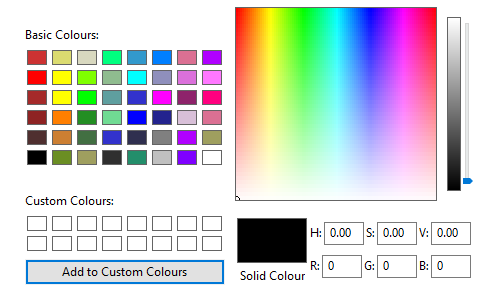

Control Appearance

wxMSW

wxMAC

wxGTK

Known Superclasses

wx.Panel

Methods Summary

__init__	Creates an instance of the colour chooser. Note that it is best to
colourToHSV	Convert wx.Colour to hsv triplet
doPaletteClick	Updates the colour values based on the mouse location
getColourFromControls	Calculate current colour from HS box position and V slider.
GetValue	Returns a wxColour object indicating the current colour choice.
getValueAsFloat	If you type garbage, you get, literally, nothing (0)
getVFromSlider	Get the current value of “V” from the v slider.
hsvToColour	Convert hsv triplet to wx.Colour
InitColours	Initializes the pre-set palette colours.
onAddCustom	Adds a custom colour to the custom colour box set. Boxes are
onBasicClick	Highlights the selected colour box and updates the solid colour
onColourSliderClick	Shared helper for onSliderDown()/onSliderMotion()
onCustomClick	Highlights the selected custom colour box and updates the solid
onHSVKillFocus
onPaletteCaptureLost
onPaletteDown	Stores state that the mouse has been pressed and updates
onPaletteMotion	Updates the colour values during mouse motion while the
onPaletteUp	Stores state that the mouse is no longer depressed.
onRGBKillFocus
onScroll	Updates the display to reflect the new “Value”.
onSliderDown	Handle mouse click on the colour slider palette
onSliderMotion	Handle mouse-down drag on the colour slider palette
onSliderUp
setCustomColour	Sets the custom colour at the given index. true_colour is wxColour
setSliderToV	Set a new HSV value for the v slider. Does not update displayed colour.
SetValue	Updates the colour chooser to reflect the given wxColour.
UpdateColour	Updates displayed colour and HSV controls with the new colour
updateDisplayColour	Update the displayed color box (solid) and send the EVT_COLOUR_CHANGED
UpdateEntries	Updates the color levels to display the new values.

Class API

class PyColourChooser(wx.Panel)

A Pure-Python implementation of the colour chooser dialog.

The PyColourChooser is a pure python implementation of the colour chooser dialog. It’s useful for embedding the colour choosing functionality inside other widgets, when the pop-up dialog is undesirable. It can also be used as a drop-in replacement on the GTK platform, as the native dialog is kind of ugly.

Methods

__init__(self, parent, id)

Creates an instance of the colour chooser. Note that it is best to accept the given size of the colour chooser as it is currently not resizeable.

---

colourToHSV(self, colour)

Convert wx.Colour to hsv triplet

---

doPaletteClick(self, m_x, m_y)

Updates the colour values based on the mouse location over the palette.

---

getColourFromControls(self)

Calculate current colour from HS box position and V slider. return - wx.Colour

---

GetValue(self)

Returns a wxColour object indicating the current colour choice.

---

getValueAsFloat(self, textctrl)

If you type garbage, you get, literally, nothing (0)

---

getVFromSlider(self)

Get the current value of “V” from the v slider.

---

hsvToColour(self, hsv)

Convert hsv triplet to wx.Colour

---

InitColours(self)

Initializes the pre-set palette colours.

---

onAddCustom(self, event)

Adds a custom colour to the custom colour box set. Boxes are chosen in a round-robin fashion, eventually overwriting previously added colours.

---

onBasicClick(self, event, box)

Highlights the selected colour box and updates the solid colour display and colour slider to reflect the choice.

---

onColourSliderClick(self, y)

Shared helper for onSliderDown()/onSliderMotion()

---

onCustomClick(self, event, box)

Highlights the selected custom colour box and updates the solid colour display and colour slider to reflect the choice.

---

onHSVKillFocus(self, event)

---

onPaletteCaptureLost(self, event)

---

onPaletteDown(self, event)

Stores state that the mouse has been pressed and updates the selected colour values.

---

onPaletteMotion(self, event)

Updates the colour values during mouse motion while the mouse button is depressed.

---

onPaletteUp(self, event)

Stores state that the mouse is no longer depressed.

---

onRGBKillFocus(self, event)

---

onScroll(self, event)

Updates the display to reflect the new “Value”.

---

onSliderDown(self, event)

Handle mouse click on the colour slider palette

---

onSliderMotion(self, event)

Handle mouse-down drag on the colour slider palette

---

onSliderUp(self, event)

---

setCustomColour(self, index, true_colour, base_colour, slidepos)

Sets the custom colour at the given index. true_colour is wxColour object containing the actual rgb value of the custom colour. base_colour (wxColour) and slidepos (int) are used to configure the colour slider and set everything to its original position.

---

setSliderToV(self, v)

Set a new HSV value for the v slider. Does not update displayed colour.

---

SetValue(self, colour)

Updates the colour chooser to reflect the given wxColour.

---

UpdateColour(self, colour)

Updates displayed colour and HSV controls with the new colour

---

updateDisplayColour(self, colour)

Update the displayed color box (solid) and send the EVT_COLOUR_CHANGED

---

UpdateEntries(self, colour)

Updates the color levels to display the new values.
