phoenix_title wx.lib.agw.ultimatelistctrl.UltimateListCtrl

UltimateListCtrl is a class that mimics the behaviour of ListCtrl, with almost the same base functionalities plus some more enhancements. This class does not rely on the native control, as it is a full owner-drawn list control.


class_hierarchy Class Hierarchy

Inheritance diagram for class UltimateListCtrl:

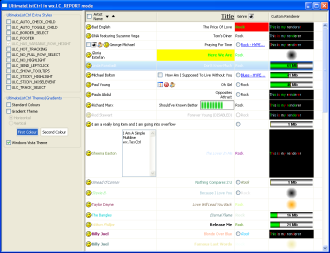

appearance Control Appearance


wxMSW

wxMSW

wxMAC

wxMAC

wxGTK

wxGTK


super_classes Known Superclasses

wx.Control


method_summary Methods Summary

__init__

Default class constructor.

Append

Append an item to the UltimateListCtrl.

Arrange

Arranges the items in icon or small icon view.

AssignImageList

Assigns the image list associated with the control.

ClearAll

Deletes everything in UltimateListCtrl.

ClearColumnImage

Clears all the images in the specified column.

ClientToScreen

Converts to screen coordinates from coordinates relative to this window.

ClientToScreenXY

Converts to screen coordinates from coordinates relative to this window.

CreateOrDestroyFooterWindowAsNeeded

Creates or destroys the footer window depending on the window style flags.

CreateOrDestroyHeaderWindowAsNeeded

Creates or destroys the header window depending on the window style flags.

DeleteAllColumns

Deletes all the column in UltimateListCtrl.

DeleteAllItems

Deletes all items in the UltimateListCtrl.

DeleteColumn

Deletes the specified column.

DeleteItem

Deletes the specified item.

DeleteItemWindow

Deletes the window associated to an item (if any).

DoGetBestSize

Gets the size which best suits the window: for a control, it would be the

DoLayout

Layouts the header, main and footer windows. This is an auxiliary method to avoid code

EditLabel

Starts editing an item label.

EnableItem

Enables/disables an item.

EnableSelectionGradient

Globally enables/disables drawing of gradient selections.

EnableSelectionVista

Globally enables/disables drawing of Windows Vista selections.

EnsureVisible

Ensures this item is visible.

FindItem

Find an item whose label matches this string.

FindItemAtPos

Find an item nearest this position.

FindItemData

Find an item whose data matches this data.

Focus

Focus and show the given item.

GetAGWWindowStyleFlag

Returns the UltimateListCtrl AGW-specific style flag.

GetBackgroundColour

Returns the background colour of the window.

GetBackgroundImage

Returns the UltimateListCtrl background image (if any).

GetCheckedItemCount

Returns the number of checked items in the given column.

GetClassDefaultAttributes

Returns the default font and colours which are used by the control. This is

GetColumn

Returns information about this column.

GetColumnCount

Returns the total number of columns in the UltimateListCtrl.

GetColumnWidth

Returns the column width for the input column.

GetCountPerPage

Returns the number of items that can fit vertically in the visible area

GetDefaultBorder

Returns the default window border.

GetDisabledTextColour

Returns the items disabled colour.

GetDropTarget

Returns the associated drop target, which may be None.

GetEditControl

Returns a pointer to the edit UltimateListTextCtrl if the item is being edited or

GetFirstGradientColour

Returns the first gradient colour for gradient-style selections.

GetFirstSelected

Return first selected item, or -1 when none is selected.

GetFocusedItem

Returns the currently focused item or -1 if none is focused.

GetFooterHeight

Returns the UltimateListHeaderWindow height, in pixels.

GetForegroundColour

Returns the foreground colour of the window.

GetGradientStyle

Returns the gradient style for gradient-style selections.

GetHeaderHeight

Returns the UltimateListHeaderWindow height, in pixels.

GetHyperTextFont

Returns the font used to render an hypertext item.

GetHyperTextNewColour

Returns the colour used to render a non-visited hypertext item.

GetHyperTextVisitedColour

Returns the colour used to render a visited hypertext item.

GetImageList

Returns the image list associated with the control.

GetItem

Returns the information about the input item.

GetItemBackgroundColour

Returns the item background colour.

GetItemCount

Returns the number of items in the UltimateListCtrl.

GetItemCustomRenderer

Returns the custom renderer used to draw the input item (if any).

GetItemData

Gets the application-defined data associated with this item.

GetItemFont

Returns the item font.

GetItemKind

Returns the item kind.

GetItemOverFlow

Returns if the item is in the overflow state.

GetItemPosition

Returns the position of the item, in icon or small icon view.

GetItemPyData

Returns the data for the item, which can be any Python object.

GetItemRect

Returns the rectangle representing the item’s size and position, in physical

GetItemSpacing

Returns the spacing between item texts and icons, in pixels.

GetItemState

Returns the item state flags for the input item.

GetItemText

Returns the item text.

GetItemTextColour

Returns the item text colour.

GetItemVisited

Returns whether an hypertext item was visited.

GetItemWindow

Returns the window associated to the item (if any).

GetItemWindowEnabled

Returns whether the window associated to the item is enabled.

GetNextItem

Searches for an item with the given geometry or state, starting from item

GetNextSelected

Returns subsequent selected items, or -1 when no more are selected.

GetScrolledWin

Returns the header window owner.

GetScrollPos

Returns the scrollbar position.

GetScrollRange

Returns the scrollbar range in pixels.

GetScrollThumb

Returns the scrollbar size in pixels.

GetSecondGradientColour

Returns the second gradient colour for gradient-style selections.

GetSelectedItemCount

Returns the number of selected items in UltimateListCtrl.

GetSubItemRect

Returns the rectangle representing the size and position, in physical coordinates,

GetTextColour

Returns the UltimateListCtrl foreground colour.

GetTopItem

Gets the index of the topmost visible item when in list or report view.

GetUserLineHeight

Returns the custom value for the UltimateListCtrl item height, if previously set with

GetViewRect

Returns the rectangle taken by all items in the control. In other words,

GetWaterMark

Returns the UltimateListCtrl watermark image (if any), displayed in the

HasAGWFlag

Returns True if the window has the given flag bit set.

HasFooter

Returns True if UltimateListCtrl has a footer window.

HasHeader

Returns True if UltimateListCtrl has a header window.

HitTest

HitTest method for a UltimateListCtrl.

InsertColumn

Inserts a column into UltimateListCtrl.

InsertColumnInfo

Inserts a column into UltimateListCtrl.

InsertImageItem

Inserts an image item at the given location.

InsertImageStringItem

Inserts an image+string item at the given location.

InsertItem

Inserts an item into UltimateListCtrl.

InsertStringItem

Inserts a string item at the given location.

IsColumnShown

Returns True if the input column is shown, False if it is hidden.

IsItemChecked

Returns whether an item is checked or not.

IsItemEnabled

Returns whether an item is enabled or not.

IsItemHyperText

Returns whether an item is hypertext or not.

IsSelected

Returns True if the item is selected.

IsVirtual

Returns True if the UltimateListCtrl has the ULC_VIRTUAL style set.

OnGetItemAttr

This function may be overloaded in the derived class for a control with

OnGetItemCheck

This function may be overloaded in the derived class for a control with

OnGetItemColumnCheck

This function must be overloaded in the derived class for a control with

OnGetItemColumnImage

This function must be overloaded in the derived class for a control with

OnGetItemColumnKind

This function must be overloaded in the derived class for a control with

OnGetItemImage

This function must be overloaded in the derived class for a control with

OnGetItemKind

This function must be overloaded in the derived class for a control with

OnGetItemText

This function must be overloaded in the derived class for a control with

OnGetItemTextColour

This function must be overloaded in the derived class for a control with

OnGetItemToolTip

This function must be overloaded in the derived class for a control with

OnInternalIdle

This method is normally only used internally, but sometimes an application

OnSetFocus

Handles the wx.EVT_SET_FOCUS event for UltimateListCtrl.

OnSize

Handles the wx.EVT_SIZE event for UltimateListCtrl.

PopupMenu

Pops up the given menu at the specified coordinates, relative to this window,

Refresh

Causes this window, and all of its children recursively (except under wxGTK1

RefreshItem

Redraws the given item.

RefreshItems

Redraws the items between itemFrom and itemTo.

ScreenToClient

Converts from screen to client window coordinates.

ScreenToClientXY

Converts from screen to client window coordinates.

ScrollList

Scrolls the UltimateListCtrl.

Select

Selects/deselects an item.

SetAGWWindowStyleFlag

Sets the UltimateListCtrl AGW-specific style flag.

SetBackgroundColour

Changes the background colour of UltimateListCtrl.

SetBackgroundImage

Sets the UltimateListCtrl background image.

SetColumn

Sets information about this column.

SetColumnCustomRenderer

Associate a custom renderer to this column’s header.

SetColumnImage

Sets one or more images to the specified column.

SetColumnShown

Sets the specified column as shown or hidden.

SetColumnToolTip

Sets the tooltip for the column header

SetColumnWidth

Sets the column width.

SetCursor

Sets the window’s cursor.

SetDisabledTextColour

Sets the items disabled colour.

SetDropTarget

Associates a drop target with this window.

SetFirstGradientColour

Sets the first gradient colour for gradient-style selections.

SetFocus

This sets the window to receive keyboard input.

SetFont

Sets the UltimateListCtrl font.

SetFooterCustomRenderer

Associate a custom renderer with the footer - all columns will use it.

SetFooterHeight

Sets the UltimateListHeaderWindow height, in pixels. This overrides the default

SetForegroundColour

Changes the foreground colour of UltimateListCtrl.

SetGradientStyle

Sets the gradient style for gradient-style selections.

SetHeaderCustomRenderer

Associate a custom renderer with the header - all columns will use it.

SetHeaderHeight

Sets the UltimateListHeaderWindow height, in pixels. This overrides the default

SetHyperTextFont

Sets the font used to render hypertext items.

SetHyperTextNewColour

Sets the colour used to render a non-visited hypertext item.

SetHyperTextVisitedColour

Sets the colour used to render a visited hypertext item.

SetImageList

Sets the image list associated with the control.

SetItem

Sets the information about the input item.

SetItemBackgroundColour

Sets the item background colour.

SetItemColumnImage

Sets a Python list of image indexes associated with the item in the input

SetItemCount

Sets the total number of items we handle.

SetItemCustomRenderer

Associate a custom renderer to this item.

SetItemData

Sets the application-defined data associated with this item.

SetItemFont

Sets the item font.

SetItemHyperText

Sets whether the item is hypertext or not.

SetItemImage

Sets a Python list of image indexes associated with the item.

SetItemKind

Sets the item kind.

SetItemOverFlow

Sets the item in the overflow/non overflow state.

SetItemPosition

Sets the position of the item, in icon or small icon view.

SetItemPyData

Sets the data for the item, which can be any Python object.

SetItemSpacing

Sets the spacing between item texts and icons.

SetItemState

Sets the item state flags for the input item.

SetItemText

Sets the item text.

SetItemTextColour

Sets the item text colour.

SetItemVisited

Sets whether an hypertext item was visited or not.

SetItemWindow

Sets the window for the given item.

SetItemWindowEnabled

Enables/disables the window associated to the item.

SetScrollPos

Sets the scrollbar position.

SetSecondGradientColour

Sets the second gradient colour for gradient-style selections.

SetSingleStyle

Adds or removes a single window style.

SetStringItem

Sets a string or image at the given location.

SetTextColour

Sets the UltimateListCtrl foreground colour.

SetUserLineHeight

Sets a custom value for the UltimateListCtrl item height.

SetWaterMark

Sets the UltimateListCtrl watermark image to be displayed in the bottom

SortItems

Call this function to sort the items in the UltimateListCtrl. Sorting is done

Update

Calling this method immediately repaints the invalidated area of the window


api Class API

class UltimateListCtrl(wx.Control)

UltimateListCtrl is a class that mimics the behaviour of ListCtrl, with almost the same base functionalities plus some more enhancements. This class does not rely on the native control, as it is a full owner-drawn list control.


Methods

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0, agwStyle=0, validator=wx.DefaultValidator, name="UltimateListCtrl")

Default class constructor.

Parameters
  • parent – parent window. Must not be None;

  • id – window identifier. A value of -1 indicates a default value;

  • pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

  • size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

  • style – the underlying wx.Control window style;

  • agwStyle

    the AGW-specific window style; can be almost any combination of the following bits:

    Window Styles

    Hex Value

    Description

    ULC_VRULES

    0x1

    Draws light vertical rules between rows in report mode.

    ULC_HRULES

    0x2

    Draws light horizontal rules between rows in report mode.

    ULC_ICON

    0x4

    Large icon view, with optional labels.

    ULC_SMALL_ICON

    0x8

    Small icon view, with optional labels.

    ULC_LIST

    0x10

    Multicolumn list view, with optional small icons. Columns are computed automatically, i.e. you don’t set columns as in ULC_REPORT. In other words, the list wraps, unlike a ListBox.

    ULC_REPORT

    0x20

    Single or multicolumn report view, with optional header.

    ULC_ALIGN_TOP

    0x40

    Icons align to the top. Win32 default, Win32 only.

    ULC_ALIGN_LEFT

    0x80

    Icons align to the left.

    ULC_AUTOARRANGE

    0x100

    Icons arrange themselves. Win32 only.

    ULC_VIRTUAL

    0x200

    The application provides items text on demand. May only be used with ULC_REPORT.

    ULC_EDIT_LABELS

    0x400

    Labels are editable: the application will be notified when editing starts.

    ULC_NO_HEADER

    0x800

    No header in report mode.

    ULC_NO_SORT_HEADER

    0x1000

    No Docs.

    ULC_SINGLE_SEL

    0x2000

    Single selection (default is multiple).

    ULC_SORT_ASCENDING

    0x4000

    Sort in ascending order. (You must still supply a comparison callback in ListCtrl.SortItems.)

    ULC_SORT_DESCENDING

    0x8000

    Sort in descending order. (You must still supply a comparison callback in ListCtrl.SortItems.)

    ULC_TILE

    0x10000

    Each item appears as a full-sized icon with a label of one or more lines beside it (partially implemented).

    ULC_NO_HIGHLIGHT

    0x20000

    No highlight when an item is selected.

    ULC_STICKY_HIGHLIGHT

    0x40000

    Items are selected by simply hovering on them, with no need to click on them.

    ULC_STICKY_NOSELEVENT

    0x80000

    Don’t send a selection event when using ULC_STICKY_HIGHLIGHT style.

    ULC_SEND_LEFTCLICK

    0x100000

    Send a left click event when an item is selected.

    ULC_HAS_VARIABLE_ROW_HEIGHT

    0x200000

    The list has variable row heights.

    ULC_AUTO_CHECK_CHILD

    0x400000

    When a column header has a checkbox associated, auto-check all the subitems in that column.

    ULC_AUTO_TOGGLE_CHILD

    0x800000

    When a column header has a checkbox associated, toggle all the subitems in that column.

    ULC_AUTO_CHECK_PARENT

    0x1000000

    Only meaningful foe checkbox-type items: when an item is checked/unchecked its column header item is checked/unchecked as well.

    ULC_SHOW_TOOLTIPS

    0x2000000

    Show tooltips for ellipsized items/subitems (text too long to be shown in the available space) containing the full item/subitem text.

    ULC_HOT_TRACKING

    0x4000000

    Enable hot tracking of items on mouse motion.

    ULC_BORDER_SELECT

    0x8000000

    Changes border colour whan an item is selected, instead of highlighting the item.

    ULC_TRACK_SELECT

    0x10000000

    Enables hot-track selection in a list control. Hot track selection means that an item is automatically selected when the cursor remains over the item for a certain period of time. The delay is retrieved on Windows using the win32api call win32gui.SystemParametersInfo(win32con.SPI_GETMOUSEHOVERTIME), and is defaulted to 400ms on other platforms. This style applies to all views of UltimateListCtrl.

    ULC_HEADER_IN_ALL_VIEWS

    0x20000000

    Show column headers in all view modes.

    ULC_NO_FULL_ROW_SELECT

    0x40000000

    When an item is selected, the only the item in the first column is highlighted.

    ULC_FOOTER

    0x80000000

    Show a footer too (only when header is present).

    ULC_USER_ROW_HEIGHT

    0x100000000

    Allows to set a custom row height (one value for all the items, only in report mode).

  • validator – the window validator;

  • name – the window name.



Append(self, entry)

Append an item to the UltimateListCtrl.

Parameters

entry – should be a sequence with an item for each column.



Arrange(self, flag)

Arranges the items in icon or small icon view.

Parameters

flag – one of the following bits:

Alignment Flag

Hex Value

Description

ULC_ALIGN_DEFAULT

0x0

Default alignment

ULC_ALIGN_SNAP_TO_GRID

0x3

Snap to grid

Note

This method is currently unimplemented and does nothing.



AssignImageList(self, imageList, which)

Assigns the image list associated with the control.

Parameters
  • imageList – an instance of wx.ImageList or an instance of PyImageList;

  • which – one of wx.IMAGE_LIST_NORMAL, wx.IMAGE_LIST_SMALL, wx.IMAGE_LIST_STATE (the last is unimplemented).

Note

Using PyImageList enables you to have images of different size inside the image list. In your derived class, instead of doing this:

imageList = wx.ImageList(16, 16)
imageList.Add(someBitmap)
self.SetImageList(imageList, wx.IMAGE_LIST_SMALL)

You should do this:

imageList = PyImageList(16, 16)
imageList.Add(someBitmap)
self.SetImageList(imageList, wx.IMAGE_LIST_SMALL)


ClearAll(self)

Deletes everything in UltimateListCtrl.



ClearColumnImage(self, col)

Clears all the images in the specified column.

Parameters

col – the column index;



ClientToScreen(self, pointOrTuple)

Converts to screen coordinates from coordinates relative to this window.

Parameters

pointOrTuple – an instance of wx.Point or a tuple representing the x, y coordinates for this point.

Returns

the coordinates relative to the screen.

Note

Overridden from wx.Control.



ClientToScreenXY(self, x, y)

Converts to screen coordinates from coordinates relative to this window.

Parameters
  • x – an integer specifying the x client coordinate;

  • y – an integer specifying the y client coordinate.

Returns

the coordinates relative to the screen.

Note

Overridden from wx.Control.



CreateOrDestroyFooterWindowAsNeeded(self)

Creates or destroys the footer window depending on the window style flags.



CreateOrDestroyHeaderWindowAsNeeded(self)

Creates or destroys the header window depending on the window style flags.



DeleteAllColumns(self)

Deletes all the column in UltimateListCtrl.



DeleteAllItems(self)

Deletes all items in the UltimateListCtrl.

Note

This function does not send the EVT_LIST_DELETE_ITEM event because deleting many items from the control would be too slow then (unlike DeleteItem).



DeleteColumn(self, col)

Deletes the specified column.

Parameters

col – the index of the column to delete.



DeleteItem(self, item)

Deletes the specified item.

Parameters

item – the index of the item to delete.

Note

This function sends the EVT_LIST_DELETE_ITEM event for the item being deleted.



DeleteItemWindow(self, itemOrId, col=0)

Deletes the window associated to an item (if any).

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



DoGetBestSize(self)

Gets the size which best suits the window: for a control, it would be the minimal size which doesn’t truncate the control, for a panel - the same size as it would have after a call to Fit().



DoLayout(self)

Layouts the header, main and footer windows. This is an auxiliary method to avoid code duplication.



EditLabel(self, item)

Starts editing an item label.

Parameters

item – the index of the item to edit.



EnableItem(self, itemOrId, col=0, enable=True)

Enables/disables an item.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • enableTrue to enable the item, False otherwise.



EnableSelectionGradient(self, enable=True)

Globally enables/disables drawing of gradient selections.

Parameters

enableTrue to enable gradient-style selections, False to disable it.

Note

Calling this method disables any Vista-style selection previously enabled.



EnableSelectionVista(self, enable=True)

Globally enables/disables drawing of Windows Vista selections.

Parameters

enableTrue to enable Vista-style selections, False to disable it.

Note

Calling this method disables any gradient-style selection previously enabled.



EnsureVisible(self, item)

Ensures this item is visible.

Parameters

index – the index of the item to scroll into view.



FindItem(self, start, str, partial=False)

Find an item whose label matches this string.

Parameters
  • start – the starting point of the input string or the beginning if start is -1;

  • string – the string to look for matches;

  • partial – if True then this method will look for items which begin with string.

Note

The string comparison is case insensitive.



FindItemAtPos(self, start, pt)

Find an item nearest this position.

Parameters

pt – an instance of wx.Point.



FindItemData(self, start, data)

Find an item whose data matches this data.

Parameters
  • start – the starting point of the input data or the beginning if start is -1;

  • data – the data to look for matches.



Focus(self, idx)

Focus and show the given item.

Parameters

idx – the index of the item to be focused.



GetAGWWindowStyleFlag(self)

Returns the UltimateListCtrl AGW-specific style flag.

See also

SetAGWWindowStyleFlag for a list of possible style flags.



GetBackgroundColour(self)

Returns the background colour of the window.

Note

Overridden from wx.Control.



GetBackgroundImage(self)

Returns the UltimateListCtrl background image (if any).

Note

At present, the background image can only be used in “tile” mode.

Todo

Support background images also in stretch and centered modes.



GetCheckedItemCount(self, col=0)

Returns the number of checked items in the given column.

Parameters

'col' – an integer specifying the column index.

Returns

the number of checked items.

Return type

int



GetClassDefaultAttributes(self, variant)

Returns the default font and colours which are used by the control. This is useful if you want to use the same font or colour in your own control as in a standard control – which is a much better idea than hard coding specific colours or fonts which might look completely out of place on the users system, especially if it uses themes.

This static method is “overridden’’ in many derived classes and so calling, for example, Button.GetClassDefaultAttributes () will typically return the values appropriate for a button which will be normally different from those returned by, say, ListCtrl.GetClassDefaultAttributes ().

Note

The VisualAttributes structure has at least the fields font, colFg and colBg. All of them may be invalid if it was not possible to determine the default control appearance or, especially for the background colour, if the field doesn’t make sense as is the case for colBg for the controls with themed background.

Note

Overridden from wx.Control.



GetColumn(self, col)

Returns information about this column.

Parameters

col – an integer specifying the column index.



GetColumnCount(self)

Returns the total number of columns in the UltimateListCtrl.



GetColumnWidth(self, col)

Returns the column width for the input column.

Parameters

col – an integer specifying the column index.



GetCountPerPage(self)

Returns the number of items that can fit vertically in the visible area of the UltimateListCtrl (list or report view) or the total number of items in the list control (icon or small icon view).



GetDefaultBorder(self)

Returns the default window border.



GetDisabledTextColour(self)

Returns the items disabled colour.



GetDropTarget(self)

Returns the associated drop target, which may be None.

Note

Overridden from wx.Control.



GetEditControl(self)

Returns a pointer to the edit UltimateListTextCtrl if the item is being edited or None otherwise (it is assumed that no more than one item may be edited simultaneously).



GetFirstGradientColour(self)

Returns the first gradient colour for gradient-style selections.



GetFirstSelected(self)

Return first selected item, or -1 when none is selected.



GetFocusedItem(self)

Returns the currently focused item or -1 if none is focused.



GetFooterHeight(self)

Returns the UltimateListHeaderWindow height, in pixels.



GetForegroundColour(self)

Returns the foreground colour of the window.

Note

Overridden from wx.Control.



GetGradientStyle(self)

Returns the gradient style for gradient-style selections.

Returns

0 for horizontal gradient-style selections, 1 for vertical gradient-style selections.



GetHeaderHeight(self)

Returns the UltimateListHeaderWindow height, in pixels.



GetHyperTextFont(self)

Returns the font used to render an hypertext item.



GetHyperTextNewColour(self)

Returns the colour used to render a non-visited hypertext item.



GetHyperTextVisitedColour(self)

Returns the colour used to render a visited hypertext item.



GetImageList(self, which)

Returns the image list associated with the control.

Parameters

which – one of wx.IMAGE_LIST_NORMAL, wx.IMAGE_LIST_SMALL, wx.IMAGE_LIST_STATE (the last is unimplemented).

Note

As UltimateListCtrl allows you to use a standard wx.ImageList or PyImageList, the returned object depends on which kind of image list you chose.



GetItem(self, itemOrId, col=0)

Returns the information about the input item.

Parameters
  • itemOrId – an instance of UltimateListItem or an integer specifying the item index;

  • col – the column to which the item belongs to.



GetItemBackgroundColour(self, item)

Returns the item background colour.

Parameters

item – the index of the item.



GetItemCount(self)

Returns the number of items in the UltimateListCtrl.



GetItemCustomRenderer(self, itemOrId, col=0)

Returns the custom renderer used to draw the input item (if any).

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



GetItemData(self, item)

Gets the application-defined data associated with this item.

Parameters

item – an integer specifying the item index.



GetItemFont(self, item)

Returns the item font.

Parameters

item – the index of the item.



GetItemKind(self, itemOrId, col=0)

Returns the item kind.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.

See also

SetItemKind for a list of valid item kinds.



GetItemOverFlow(self, itemOrId, col=0)

Returns if the item is in the overflow state.

An item/subitem may overwrite neighboring items/subitems if its text would not normally fit in the space allotted to it.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



GetItemPosition(self, item)

Returns the position of the item, in icon or small icon view.

Parameters

item – the row in which the item lives.



GetItemPyData(self, item)

Returns the data for the item, which can be any Python object.

Parameters

item – an integer specifying the item index.

Note

Please note that Python data is associated with the item and not with subitems.



GetItemRect(self, item, code=ULC_RECT_BOUNDS)

Returns the rectangle representing the item’s size and position, in physical coordinates.

Parameters
  • item – the row in which the item lives;

  • code – one of ULC_RECT_BOUNDS, ULC_RECT_ICON, ULC_RECT_LABEL.



GetItemSpacing(self, isSmall=False)

Returns the spacing between item texts and icons, in pixels.

Parameters

isSmallTrue if using a wx.IMAGE_LIST_SMALL image list, False if using a wx.IMAGE_LIST_NORMAL image list.



GetItemState(self, item, stateMask)

Returns the item state flags for the input item.

Parameters
  • item – the index of the item;

  • stateMask – the bitmask for the state flag.

See also

SetItemState for a list of valid state flags.



GetItemText(self, item)

Returns the item text.

Parameters

item – an instance of UltimateListItem or an integer specifying the item index.



GetItemTextColour(self, item)

Returns the item text colour.

Parameters

item – the index of the item.



GetItemVisited(self, itemOrId, col=0)

Returns whether an hypertext item was visited.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



GetItemWindow(self, itemOrId, col=0)

Returns the window associated to the item (if any).

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



GetItemWindowEnabled(self, itemOrId, col=0)

Returns whether the window associated to the item is enabled.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;



GetNextItem(self, item, geometry=ULC_NEXT_ALL, state=ULC_STATE_DONTCARE)

Searches for an item with the given geometry or state, starting from item but excluding the item itself.

Parameters
  • item – the item at which starting the search. If set to -1, the first item that matches the specified flags will be returned.

  • geometry – can be one of:

    Geometry Flag

    Hex Value

    Description

    ULC_NEXT_ABOVE

    0x0

    Searches for an item above the specified item

    ULC_NEXT_ALL

    0x1

    Searches for subsequent item by index

    ULC_NEXT_BELOW

    0x2

    Searches for an item below the specified item

    ULC_NEXT_LEFT

    0x3

    Searches for an item to the left of the specified item

    ULC_NEXT_RIGHT

    0x4

    Searches for an item to the right of the specified item

  • state – any combination of the following bits:

    State Bits

    Hex Value

    Description

    ULC_STATE_DONTCARE

    0x0

    Don’t care what the state is

    ULC_STATE_DROPHILITED

    0x1

    The item is highlighted to receive a drop event

    ULC_STATE_FOCUSED

    0x2

    The item has the focus

    ULC_STATE_SELECTED

    0x4

    The item is selected

    ULC_STATE_CUT

    0x8

    The item is in the cut state

    ULC_STATE_DISABLED

    0x10

    The item is disabled

    ULC_STATE_FILTERED

    0x20

    The item has been filtered

    ULC_STATE_INUSE

    0x40

    The item is in use

    ULC_STATE_PICKED

    0x80

    The item has been picked

    ULC_STATE_SOURCE

    0x100

    The item is a drag and drop source

Returns

The first item with given state following item or -1 if no such item found.

Note

This function may be used to find all selected items in the control like this:

item = -1

while 1:
    item = listctrl.GetNextItem(item, ULC_NEXT_ALL, ULC_STATE_SELECTED)

    if item == -1:
        break

    # This item is selected - do whatever is needed with it

    wx.LogMessage("Item %ld is selected."%item)


GetNextSelected(self, item)

Returns subsequent selected items, or -1 when no more are selected.

Parameters

item – the index of the item.



GetScrolledWin(self)

Returns the header window owner.



GetScrollPos(self, orientation)

Returns the scrollbar position.

Note

This method is forwarded to UltimateListMainWindow.

Parameters

orientation – May be wx.HORIZONTAL or wx.VERTICAL.



GetScrollRange(self)

Returns the scrollbar range in pixels.

Note

This method is forwarded to UltimateListMainWindow.



GetScrollThumb(self)

Returns the scrollbar size in pixels.

Note

This method is forwarded to UltimateListMainWindow.



GetSecondGradientColour(self)

Returns the second gradient colour for gradient-style selections.



GetSelectedItemCount(self)

Returns the number of selected items in UltimateListCtrl.



GetSubItemRect(self, item, subItem, code)

Returns the rectangle representing the size and position, in physical coordinates, of the given subitem, i.e. the part of the row item in the column subItem.

Parameters
  • item – the row in which the item lives;

  • subItem – the column in which the item lives. If set equal to the special value ULC_GETSUBITEMRECT_WHOLEITEM the return value is the same as for GetItemRect;

  • code – one of ULC_RECT_BOUNDS, ULC_RECT_ICON, ULC_RECT_LABEL.

Note

This method is only meaningful when the UltimateListCtrl is in the report mode.



GetTextColour(self)

Returns the UltimateListCtrl foreground colour.



GetTopItem(self)

Gets the index of the topmost visible item when in list or report view.



GetUserLineHeight(self)

Returns the custom value for the UltimateListCtrl item height, if previously set with SetUserLineHeight.

Note

This method can be used only with ULC_REPORT and ULC_USER_ROW_HEIGHT styles set.



GetViewRect(self)

Returns the rectangle taken by all items in the control. In other words, if the controls client size were equal to the size of this rectangle, no scrollbars would be needed and no free space would be left.

Note

This function only works in the icon and small icon views, not in list or report views.



GetWaterMark(self)

Returns the UltimateListCtrl watermark image (if any), displayed in the bottom right part of the window.

Todo

Better support for this is needed.



HasAGWFlag(self, flag)

Returns True if the window has the given flag bit set.

Parameters

flag – the window style to check.

See also

SetAGWWindowStyleFlag for a list of valid window styles.



HasFooter(self)

Returns True if UltimateListCtrl has a footer window.



HasHeader(self)

Returns True if UltimateListCtrl has a header window.



HitTest(self, pointOrTuple)

HitTest method for a UltimateListCtrl.

Parameters

pointOrTuple – an instance of wx.Point or a tuple representing the mouse x, y position.

See also

UltimateListMainWindow.HitTestLine() for a list of return flags.



InsertColumn(self, col, heading, format=ULC_FORMAT_LEFT, width=-1)

Inserts a column into UltimateListCtrl.

Parameters
  • col – the column index at which we wish to insert a column;

  • heading – the header text;

  • format

    the column alignment flag. This can be one of the following bits:

    Alignment Bits

    Hex Value

    Description

    ULC_FORMAT_LEFT

    0x0

    The item is left-aligned

    ULC_FORMAT_RIGHT

    0x1

    The item is right-aligned

    ULC_FORMAT_CENTRE

    0x2

    The item is centre-aligned

    ULC_FORMAT_CENTER

    0x2

    The item is center-aligned

  • width – can be a width in pixels or wx.LIST_AUTOSIZE (-1) or wx.LIST_AUTOSIZE_USEHEADER (-2) or LIST_AUTOSIZE_FILL (-3). wx.LIST_AUTOSIZE will resize the column to the length of its longest item. wx.LIST_AUTOSIZE_USEHEADER will resize the column to the length of the header (Win32) or 80 pixels (other platforms). LIST_AUTOSIZE_FILL will resize the column fill the remaining width of the window.

Returns

the index at which the column has been inserted.



InsertColumnInfo(self, col, item)

Inserts a column into UltimateListCtrl.

Parameters
  • col – the column index at which we wish to insert a column;

  • item – an instance of UltimateListItem.

Returns

the index at which the column has been inserted.



InsertImageItem(self, index, imageIds, it_kind=0)

Inserts an image item at the given location.

Parameters
  • index – the index at which we wish to insert the item;

  • imageIds – a Python list containing the image indexes for the images associated to this item;

  • it_kind – the item kind.

See also

SetStringItem for a list of valid item kinds.



InsertImageStringItem(self, index, label, imageIds, it_kind=0)

Inserts an image+string item at the given location.

Parameters
  • index – the index at which we wish to insert the item;

  • label – the item text;

  • imageIds – a Python list containing the image indexes for the images associated to this item;

  • it_kind – the item kind.

See also

SetStringItem for a list of valid item kinds.



InsertItem(self, info)

Inserts an item into UltimateListCtrl.

Parameters

info – an instance of UltimateListItem.



InsertStringItem(self, index, label, it_kind=0)

Inserts a string item at the given location.

Parameters
  • index – the index at which we wish to insert the item;

  • label – the item text;

  • it_kind – the item kind.

See also

SetStringItem for a list of valid item kinds.



IsColumnShown(self, column)

Returns True if the input column is shown, False if it is hidden.

Parameters

column – an integer specifying the column index.



IsItemChecked(self, itemOrId, col=0)

Returns whether an item is checked or not.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



IsItemEnabled(self, itemOrId, col=0)

Returns whether an item is enabled or not.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



IsItemHyperText(self, itemOrId, col=0)

Returns whether an item is hypertext or not.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to.



IsSelected(self, idx)

Returns True if the item is selected.

Parameters

idx – the index of the item to check for selection.



IsVirtual(self)

Returns True if the UltimateListCtrl has the ULC_VIRTUAL style set.



OnGetItemAttr(self, item)

This function may be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return the attribute for the specified item or None to use the default appearance parameters.

Parameters

item – an integer specifying the item index.

Note

UltimateListCtrl will not delete the pointer or keep a reference of it. You can return the same UltimateListItemAttr pointer for every OnGetItemAttr call.

Note

The base class version always returns None.



OnGetItemCheck(self, item)

This function may be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return whether a checkbox-like item or a radiobutton-like item is checked or unchecked.

Parameters

item – an integer specifying the item index.

Note

The base class version always returns an empty list.



OnGetItemColumnCheck(self, item, column=0)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL and ULC_REPORT style. It should return whether a checkbox-like item or a radiobutton-like item in the column header is checked or unchecked.

Parameters

item – an integer specifying the item index.

Note

The base class version always returns an empty Python list.



OnGetItemColumnImage(self, item, column=0)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL and ULC_REPORT style. It should return a Python list of indexes representing the images associated to the input item or an empty list for no images.

Parameters

item – an integer specifying the item index.

Note

The base class version always returns an empty Python list.



OnGetItemColumnKind(self, item, column=0)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return the item kind for the input item in the header window.

Parameters
  • item – an integer specifying the item index;

  • column – the column index.

Note

The base class version always returns 0 (a standard item).

See also

SetItemKind for a list of valid item kinds.



OnGetItemImage(self, item)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL style having an image list (if the control doesn’t have an image list, it is not necessary to overload it). It should return a Python list of indexes representing the images associated to the input item or an empty list for no images.

Parameters

item – an integer specifying the item index;

Note

In a control with ULC_REPORT style, OnGetItemImage only gets called for the first column of each line.

Note

The base class version always returns an empty Python list.



OnGetItemKind(self, item)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return the item kind for the input item.

Parameters

item – an integer specifying the item index.

Note

The base class version always returns 0 (a standard item).

See also

SetItemKind for a list of valid item kinds.



OnGetItemText(self, item, col)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return the string containing the text of the given column for the specified item.

Parameters
  • item – an integer specifying the item index;

  • col – the column index to which the item belongs to.



OnGetItemTextColour(self, item, col)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return a wx.Colour object or None for the default color.

Parameters
  • item – an integer specifying the item index;

  • col – the column index to which the item belongs to.



OnGetItemToolTip(self, item, col)

This function must be overloaded in the derived class for a control with ULC_VIRTUAL style. It should return the string containing the text of the tooltip for the specified item.

Parameters
  • item – an integer specifying the item index;

  • col – the column index to which the item belongs to.



OnInternalIdle(self)

This method is normally only used internally, but sometimes an application may need it to implement functionality that should not be disabled by an application defining an OnIdle handler in a derived class.

This method may be used to do delayed painting, for example, and most implementations call wx.Window.UpdateWindowUI in order to send update events to the window in idle time.



OnSetFocus(self, event)

Handles the wx.EVT_SET_FOCUS event for UltimateListCtrl.

Parameters

event – a FocusEvent event to be processed.



OnSize(self, event)

Handles the wx.EVT_SIZE event for UltimateListCtrl.

Parameters

event – a wx.SizeEvent event to be processed.



PopupMenu(self, menu, pos=wx.DefaultPosition)

Pops up the given menu at the specified coordinates, relative to this window, and returns control when the user has dismissed the menu. If a menu item is selected, the corresponding menu event is generated and will be processed as usual. If the coordinates are not specified, the current mouse cursor position is used.

Parameters
  • menu – an instance of wx.Menu to pop up;

  • pos – the position where the menu will appear.

Note

Overridden from wx.Control.



Refresh(self, eraseBackground=True, rect=None)

Causes this window, and all of its children recursively (except under wxGTK1 where this is not implemented), to be repainted.

Parameters
  • eraseBackground – If True, the background will be erased;

  • rect – If not None, only the given rectangle will be treated as damaged.

Note

Note that repainting doesn’t happen immediately but only during the next event loop iteration, if you need to update the window immediately you should use Update instead.

Note

Overridden from wx.Control.



RefreshItem(self, item)

Redraws the given item.

Parameters

item – an integer specifying the item index;

Note

This is only useful for the virtual list controls as without calling this function the displayed value of the item doesn’t change even when the underlying data does change.



RefreshItems(self, itemFrom, itemTo)

Redraws the items between itemFrom and itemTo. The starting item must be less than or equal to the ending one.

Just as RefreshItem this is only useful for virtual list controls

Parameters
  • itemFrom – the first index of the refresh range;

  • itemTo – the last index of the refresh range.



ScreenToClient(self, pointOrTuple)

Converts from screen to client window coordinates.

Parameters

pointOrTuple – an instance of wx.Point or a tuple representing the x, y coordinates for this point.

Returns

the coordinates relative to this window.

Note

Overridden from wx.Control.



ScreenToClientXY(self, x, y)

Converts from screen to client window coordinates.

Parameters
  • x – an integer specifying the x screen coordinate;

  • y – an integer specifying the y screen coordinate.

Returns

the coordinates relative to this window.

Note

Overridden from wx.Control.



ScrollList(self, dx, dy)

Scrolls the UltimateListCtrl.

Parameters
  • dx – if in icon, small icon or report view mode, specifies the number of pixels to scroll. If in list view mode, dx specifies the number of columns to scroll.

  • dy – always specifies the number of pixels to scroll vertically.



Select(self, idx, on=True)

Selects/deselects an item.

Parameters
  • idx – the index of the item to select;

  • onTrue to select the item, False to deselect it.



SetAGWWindowStyleFlag(self, style)

Sets the UltimateListCtrl AGW-specific style flag.

Parameters

style

the AGW-specific window style; can be almost any combination of the following bits:

Window Styles

Hex Value

Description

ULC_VRULES

0x1

Draws light vertical rules between rows in report mode.

ULC_HRULES

0x2

Draws light horizontal rules between rows in report mode.

ULC_ICON

0x4

Large icon view, with optional labels.

ULC_SMALL_ICON

0x8

Small icon view, with optional labels.

ULC_LIST

0x10

Multicolumn list view, with optional small icons. Columns are computed automatically, i.e. you don’t set columns as in ULC_REPORT. In other words, the list wraps, unlike a ListBox.

ULC_REPORT

0x20

Single or multicolumn report view, with optional header.

ULC_ALIGN_TOP

0x40

Icons align to the top. Win32 default, Win32 only.

ULC_ALIGN_LEFT

0x80

Icons align to the left.

ULC_AUTOARRANGE

0x100

Icons arrange themselves. Win32 only.

ULC_VIRTUAL

0x200

The application provides items text on demand. May only be used with ULC_REPORT.

ULC_EDIT_LABELS

0x400

Labels are editable: the application will be notified when editing starts.

ULC_NO_HEADER

0x800

No header in report mode.

ULC_NO_SORT_HEADER

0x1000

No Docs.

ULC_SINGLE_SEL

0x2000

Single selection (default is multiple).

ULC_SORT_ASCENDING

0x4000

Sort in ascending order. (You must still supply a comparison callback in ListCtrl.SortItems.)

ULC_SORT_DESCENDING

0x8000

Sort in descending order. (You must still supply a comparison callback in ListCtrl.SortItems.)

ULC_TILE

0x10000

Each item appears as a full-sized icon with a label of one or more lines beside it (partially implemented).

ULC_NO_HIGHLIGHT

0x20000

No highlight when an item is selected.

ULC_STICKY_HIGHLIGHT

0x40000

Items are selected by simply hovering on them, with no need to click on them.

ULC_STICKY_NOSELEVENT

0x80000

Don’t send a selection event when using ULC_STICKY_HIGHLIGHT style.

ULC_SEND_LEFTCLICK

0x100000

Send a left click event when an item is selected.

ULC_HAS_VARIABLE_ROW_HEIGHT

0x200000

The list has variable row heights.

ULC_AUTO_CHECK_CHILD

0x400000

When a column header has a checkbox associated, auto-check all the subitems in that column.

ULC_AUTO_TOGGLE_CHILD

0x800000

When a column header has a checkbox associated, toggle all the subitems in that column.

ULC_AUTO_CHECK_PARENT

0x1000000

Only meaningful foe checkbox-type items: when an item is checked/unchecked its column header item is checked/unchecked as well.

ULC_SHOW_TOOLTIPS

0x2000000

Show tooltips for ellipsized items/subitems (text too long to be shown in the available space) containing the full item/subitem text.

ULC_HOT_TRACKING

0x4000000

Enable hot tracking of items on mouse motion.

ULC_BORDER_SELECT

0x8000000

Changes border colour whan an item is selected, instead of highlighting the item.

ULC_TRACK_SELECT

0x10000000

Enables hot-track selection in a list control. Hot track selection means that an item is automatically selected when the cursor remains over the item for a certain period of time. The delay is retrieved on Windows using the win32api call win32gui.SystemParametersInfo(win32con.SPI_GETMOUSEHOVERTIME), and is defaulted to 400ms on other platforms. This style applies to all views of UltimateListCtrl.

ULC_HEADER_IN_ALL_VIEWS

0x20000000

Show column headers in all view modes.

ULC_NO_FULL_ROW_SELECT

0x40000000

When an item is selected, the only the item in the first column is highlighted.

ULC_FOOTER

0x80000000

Show a footer too (only when header is present).

ULC_USER_ROW_HEIGHT

0x100000000

Allows to set a custom row height (one value for all the items, only in report mode).



SetBackgroundColour(self, colour)

Changes the background colour of UltimateListCtrl.

Parameters

colour – the colour to be used as the background colour, pass NullColour to reset to the default colour.

Note

The background colour is usually painted by the default EraseEvent event handler function under Windows and automatically under GTK.

Note

Setting the background colour does not cause an immediate refresh, so you may wish to call wx.Window.ClearBackground or wx.Window.Refresh after calling this function.

Note

Overridden from wx.Control.



SetBackgroundImage(self, image=None)

Sets the UltimateListCtrl background image.

Parameters

image – if not None, an instance of wx.Bitmap.

Note

At present, the background image can only be used in “tile” mode.

Todo

Support background images also in stretch and centered modes.



SetColumn(self, col, item)

Sets information about this column.

Parameters
  • col – an integer specifying the column index;

  • item – an instance of UltimateListItem.



SetColumnCustomRenderer(self, col=0, renderer=None)

Associate a custom renderer to this column’s header.

Parameters
  • col – the column index.

  • renderer – a class able to correctly render the input item.

Note

the renderer class must implement the methods DrawHeaderButton and GetForegroundColor.



SetColumnImage(self, col, image)

Sets one or more images to the specified column.

Parameters
  • col – the column index;

  • image – a Python list containing the image indexes for the images associated to this column item.



SetColumnShown(self, column, shown=True)

Sets the specified column as shown or hidden.

Parameters
  • column – an integer specifying the column index;

  • shownTrue to show the column, False to hide it.



SetColumnToolTip(self, col, tip)

Sets the tooltip for the column header

Parameters
  • col – the column index;

  • tip – the tooltip text



SetColumnWidth(self, col, width)

Sets the column width.

Parameters

width – can be a width in pixels or wx.LIST_AUTOSIZE (-1) or wx.LIST_AUTOSIZE_USEHEADER (-2) or LIST_AUTOSIZE_FILL (-3). wx.LIST_AUTOSIZE will resize the column to the length of its longest item. wx.LIST_AUTOSIZE_USEHEADER will resize the column to the length of the header (Win32) or 80 pixels (other platforms). LIST_AUTOSIZE_FILL will resize the column fill the remaining width of the window.

Note

In small or normal icon view, col must be -1, and the column width is set for all columns.



SetCursor(self, cursor)

Sets the window’s cursor.

Parameters

cursor – specifies the cursor that the window should normally display. The cursor may be NullCursor in which case the window cursor will be reset back to default.

Note

The window cursor also sets it for the children of the window implicitly.

Note

Overridden from wx.Control.



SetDisabledTextColour(self, colour)

Sets the items disabled colour.

Parameters

colour – an instance of wx.Colour.



SetDropTarget(self, dropTarget)

Associates a drop target with this window. If the window already has a drop target, it is deleted.

Parameters

dropTarget – an instance of DropTarget.

Note

Overridden from wx.Control.



SetFirstGradientColour(self, colour=None)

Sets the first gradient colour for gradient-style selections.

Parameters

colour – if not None, a valid wx.Colour instance. Otherwise, the colour is taken from the system value wx.SYS_COLOUR_HIGHLIGHT.



SetFocus(self)

This sets the window to receive keyboard input.



SetFont(self, font)

Sets the UltimateListCtrl font.

Parameters

font – a valid wx.Font instance.

Note

Overridden from wx.Control.



SetFooterCustomRenderer(self, renderer=None)

Associate a custom renderer with the footer - all columns will use it.

Parameters

renderer – a class able to correctly render header buttons

Note

the renderer class must implement the methods DrawHeaderButton and GetForegroundColor.



SetFooterHeight(self, height)

Sets the UltimateListHeaderWindow height, in pixels. This overrides the default footer window size derived from RendererNative. If height is None, the default behaviour is restored.

Parameters

height – the footer window height, in pixels (if it is None, the default height obtained using RendererNative is used).



SetForegroundColour(self, colour)

Changes the foreground colour of UltimateListCtrl.

Parameters

colour – the colour to be used as the foreground colour, pass NullColour to reset to the default colour.

Note

Overridden from wx.Control.



SetGradientStyle(self, vertical=0)

Sets the gradient style for gradient-style selections.

Parameters

vertical – 0 for horizontal gradient-style selections, 1 for vertical gradient-style selections.



SetHeaderCustomRenderer(self, renderer=None)

Associate a custom renderer with the header - all columns will use it.

Parameters

renderer – a class able to correctly render header buttons

Note

the renderer class must implement the methods DrawHeaderButton and GetForegroundColor.



SetHeaderHeight(self, height)

Sets the UltimateListHeaderWindow height, in pixels. This overrides the default header window size derived from RendererNative. If height is None, the default behaviour is restored.

Parameters

height – the header window height, in pixels (if it is None, the default height obtained using RendererNative is used).



SetHyperTextFont(self, font)

Sets the font used to render hypertext items.

Parameters

font – a valid wx.Font instance.



SetHyperTextNewColour(self, colour)

Sets the colour used to render a non-visited hypertext item.

Parameters

colour – a valid wx.Colour instance.



SetHyperTextVisitedColour(self, colour)

Sets the colour used to render a visited hypertext item.

Parameters

colour – a valid wx.Colour instance.



SetImageList(self, imageList, which)

Sets the image list associated with the control.

Parameters
  • imageList – an instance of wx.ImageList or an instance of PyImageList;

  • which – one of wx.IMAGE_LIST_NORMAL, wx.IMAGE_LIST_SMALL, wx.IMAGE_LIST_STATE (the last is unimplemented).

Note

Using PyImageList enables you to have images of different size inside the image list. In your derived class, instead of doing this:

imageList = wx.ImageList(16, 16)
imageList.Add(someBitmap)
self.SetImageList(imageList, wx.IMAGE_LIST_SMALL)

You should do this:

imageList = PyImageList(16, 16)
imageList.Add(someBitmap)
self.SetImageList(imageList, wx.IMAGE_LIST_SMALL)


SetItem(self, info)

Sets the information about the input item.

Parameters

info – an instance of UltimateListItem.



SetItemBackgroundColour(self, item, col)

Sets the item background colour.

Parameters
  • item – the index of the item;

  • col – a valid wx.Colour object.



SetItemColumnImage(self, item, column, image)

Sets a Python list of image indexes associated with the item in the input column.

Parameters
  • item – an integer specifying the item index;

  • column – the column to which the item belongs to;

  • image – a Python list of indexes into the image list associated with the UltimateListCtrl.



SetItemCount(self, count)

Sets the total number of items we handle.

Parameters

count – the total number of items we handle.



SetItemCustomRenderer(self, itemOrId, col=0, renderer=None)

Associate a custom renderer to this item.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • renderer – a class able to correctly render the input item.

Note

the renderer class must implement the methods DrawSubItem, GetLineHeight and GetSubItemWidth.



SetItemData(self, item, data)

Sets the application-defined data associated with this item.

Parameters
  • item – an integer specifying the item index;

  • data – the data to be associated with the input item.

Note

This function cannot be used to associate pointers with the control items, use SetItemPyData instead.



SetItemFont(self, item, f)

Sets the item font.

Parameters
  • item – the index of the item;

  • f – a valid wx.Font object.



SetItemHyperText(self, itemOrId, col=0, hyper=True)

Sets whether the item is hypertext or not.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • hyperTrue to have an item with hypertext behaviour, False otherwise.



SetItemImage(self, item, image, selImage=-1)

Sets a Python list of image indexes associated with the item.

Parameters
  • item – an integer specifying the item index;

  • image – a Python list of indexes into the image list associated with the UltimateListCtrl. In report view, this only sets the images for the first column;

  • selImage – not used at present.



SetItemKind(self, itemOrId, col=0, kind=0)

Sets the item kind.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • kind – may be one of the following integers:

    Item Kind

    Description

    0

    A normal item

    1

    A checkbox-like item

    2

    A radiobutton-type item



SetItemOverFlow(self, itemOrId, col=0, over=True)

Sets the item in the overflow/non overflow state.

An item/subitem may overwrite neighboring items/subitems if its text would not normally fit in the space allotted to it.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • overTrue to set the item in a overflow state, False otherwise.



SetItemPosition(self, item, pos)

Sets the position of the item, in icon or small icon view.

Parameters
  • item – the row in which the item lives;

  • pos – the item position.

Note

This method is currently unimplemented and does nothing.



SetItemPyData(self, item, pyData)

Sets the data for the item, which can be any Python object.

Parameters
  • item – an integer specifying the item index;

  • pyData – any Python object.

Note

Please note that Python data is associated with the item and not with subitems.



SetItemSpacing(self, spacing, isSmall=False)

Sets the spacing between item texts and icons.

Parameters
  • spacing – the spacing between item texts and icons, in pixels;

  • isSmallTrue if using a wx.IMAGE_LIST_SMALL image list, False if using a wx.IMAGE_LIST_NORMAL image list.



SetItemState(self, item, state, stateMask)

Sets the item state flags for the input item.

Parameters
  • item – the index of the item; if defaulted to -1, the state flag will be set for all the items;

  • state – any combination of the following bits:

    State Bits

    Hex Value

    Description

    ULC_STATE_DONTCARE

    0x0

    Don’t care what the state is

    ULC_STATE_DROPHILITED

    0x1

    The item is highlighted to receive a drop event

    ULC_STATE_FOCUSED

    0x2

    The item has the focus

    ULC_STATE_SELECTED

    0x4

    The item is selected

    ULC_STATE_CUT

    0x8

    The item is in the cut state

    ULC_STATE_DISABLED

    0x10

    The item is disabled

    ULC_STATE_FILTERED

    0x20

    The item has been filtered

    ULC_STATE_INUSE

    0x40

    The item is in use

    ULC_STATE_PICKED

    0x80

    The item has been picked

    ULC_STATE_SOURCE

    0x100

    The item is a drag and drop source

  • stateMask – the bitmask for the state flag.



SetItemText(self, item, text)

Sets the item text.

Parameters
  • item – an instance of UltimateListItem or an integer specifying the item index;

  • text – the new item text.



SetItemTextColour(self, item, col)

Sets the item text colour.

Parameters
  • item – the index of the item;

  • col – a valid wx.Colour object.



SetItemVisited(self, itemOrId, col=0, visited=True)

Sets whether an hypertext item was visited or not.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • visitedTrue to mark an hypertext item as visited, False otherwise.



SetItemWindow(self, itemOrId, col=0, wnd=None, expand=False)

Sets the window for the given item.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • wnd – a non-toplevel window to be displayed next to the item;

  • expandTrue to expand the column where the item/subitem lives, so that the window will be fully visible.



SetItemWindowEnabled(self, itemOrId, col=0, enable=True)

Enables/disables the window associated to the item.

Parameters
  • itemOrId – an instance of UltimateListItem or the item index;

  • col – the column index to which the input item belongs to;

  • enableTrue to enable the associated window, False to disable it.



SetScrollPos(self, orientation, pos, refresh=True)

Sets the scrollbar position.

Parameters
  • orientation – determines the scrollbar whose position is to be set. May be wx.HORIZONTAL or wx.VERTICAL;

  • pos – the scrollbar position in scroll units;

  • refreshTrue to redraw the scrollbar, False otherwise.

Note

This method is forwarded to UltimateListMainWindow.



SetSecondGradientColour(self, colour=None)

Sets the second gradient colour for gradient-style selections.

Parameters

colour – if not None, a valid wx.Colour instance. Otherwise, the colour generated is a slightly darker version of the UltimateListCtrl background colour.



SetSingleStyle(self, style, add=True)

Adds or removes a single window style.

Parameters
  • style – can be one of the following bits:

    Window Styles

    Hex Value

    Description

    ULC_VRULES

    0x1

    Draws light vertical rules between rows in report mode.

    ULC_HRULES

    0x2

    Draws light horizontal rules between rows in report mode.

    ULC_ICON

    0x4

    Large icon view, with optional labels.

    ULC_SMALL_ICON

    0x8

    Small icon view, with optional labels.

    ULC_LIST

    0x10

    Multicolumn list view, with optional small icons. Columns are computed automatically, i.e. you don’t set columns as in ULC_REPORT. In other words, the list wraps, unlike a ListBox.

    ULC_REPORT

    0x20

    Single or multicolumn report view, with optional header.

    ULC_ALIGN_TOP

    0x40

    Icons align to the top. Win32 default, Win32 only.

    ULC_ALIGN_LEFT

    0x80

    Icons align to the left.

    ULC_AUTOARRANGE

    0x100

    Icons arrange themselves. Win32 only.

    ULC_VIRTUAL

    0x200

    The application provides items text on demand. May only be used with ULC_REPORT.

    ULC_EDIT_LABELS

    0x400

    Labels are editable: the application will be notified when editing starts.

    ULC_NO_HEADER

    0x800

    No header in report mode.

    ULC_NO_SORT_HEADER

    0x1000

    No Docs.

    ULC_SINGLE_SEL

    0x2000

    Single selection (default is multiple).

    ULC_SORT_ASCENDING

    0x4000

    Sort in ascending order. (You must still supply a comparison callback in ListCtrl.SortItems.)

    ULC_SORT_DESCENDING

    0x8000

    Sort in descending order. (You must still supply a comparison callback in ListCtrl.SortItems.)

    ULC_TILE

    0x10000

    Each item appears as a full-sized icon with a label of one or more lines beside it (partially implemented).

    ULC_NO_HIGHLIGHT

    0x20000

    No highlight when an item is selected.

    ULC_STICKY_HIGHLIGHT

    0x40000

    Items are selected by simply hovering on them, with no need to click on them.

    ULC_STICKY_NOSELEVENT

    0x80000

    Don’t send a selection event when using ULC_STICKY_HIGHLIGHT style.

    ULC_SEND_LEFTCLICK

    0x100000

    Send a left click event when an item is selected.

    ULC_HAS_VARIABLE_ROW_HEIGHT

    0x200000

    The list has variable row heights.

    ULC_AUTO_CHECK_CHILD

    0x400000

    When a column header has a checkbox associated, auto-check all the subitems in that column.

    ULC_AUTO_TOGGLE_CHILD

    0x800000

    When a column header has a checkbox associated, toggle all the subitems in that column.

    ULC_AUTO_CHECK_PARENT

    0x1000000

    Only meaningful foe checkbox-type items: when an item is checked/unchecked its column header item is checked/unchecked as well.

    ULC_SHOW_TOOLTIPS

    0x2000000

    Show tooltips for ellipsized items/subitems (text too long to be shown in the available space) containing the full item/subitem text.

    ULC_HOT_TRACKING

    0x4000000

    Enable hot tracking of items on mouse motion.

    ULC_BORDER_SELECT

    0x8000000

    Changes border colour whan an item is selected, instead of highlighting the item.

    ULC_TRACK_SELECT

    0x10000000

    Enables hot-track selection in a list control. Hot track selection means that an item is automatically selected when the cursor remains over the item for a certain period of time. The delay is retrieved on Windows using the win32api call win32gui.SystemParametersInfo(win32con.SPI_GETMOUSEHOVERTIME), and is defaulted to 400ms on other platforms. This style applies to all views of UltimateListCtrl.

    ULC_HEADER_IN_ALL_VIEWS

    0x20000000

    Show column headers in all view modes.

    ULC_NO_FULL_ROW_SELECT

    0x40000000

    When an item is selected, the only the item in the first column is highlighted.

    ULC_FOOTER

    0x80000000

    Show a footer too (only when header is present).

  • addTrue to add the window style, False to remove it.

Note

The style ULC_VIRTUAL can not be set/unset after construction.



SetStringItem(self, index, col, label, imageIds=[], it_kind=0)

Sets a string or image at the given location.

Parameters
  • index – the item index;

  • col – the column to which the item belongs to;

  • label – the item text;

  • imageIds – a Python list containing the image indexes for the images associated to this item;

  • it_kind – the item kind. May be one of the following integers:

    Item Kind

    Description

    0

    A normal item

    1

    A checkbox-like item

    2

    A radiobutton-type item



SetTextColour(self, col)

Sets the UltimateListCtrl foreground colour.

Parameters

col – a valid wx.Colour object.



SetUserLineHeight(self, height)

Sets a custom value for the UltimateListCtrl item height.

Parameters

height – the custom height for all the items, in pixels.

Note

This method can be used only with ULC_REPORT and ULC_USER_ROW_HEIGHT styles set.



SetWaterMark(self, watermark=None)

Sets the UltimateListCtrl watermark image to be displayed in the bottom right part of the window.

Parameters

watermark – if not None, an instance of wx.Bitmap.

Todo

Better support for this is needed.



SortItems(self, func=None)

Call this function to sort the items in the UltimateListCtrl. Sorting is done using the specified function func. This function must have the following prototype:

def OnCompareItems(self, line1, line2):

    DoSomething(line1, line2)
    # function code

It is called each time when the two items must be compared and should return 0 if the items are equal, negative value if the first item is less than the second one and positive value if the first one is greater than the second one.

Parameters

func – the method to use to sort the items. The default is to use the UltimateListMainWindow.OnCompareItems() method.



Update(self)

Calling this method immediately repaints the invalidated area of the window and all of its children recursively while this would usually only happen when the flow of control returns to the event loop.

Note

This function doesn’t invalidate any area of the window so nothing happens if nothing has been invalidated (i.e. marked as requiring a redraw). Use Refresh first if you want to immediately redraw the window unconditionally.

Note

Overridden from wx.Control.
