wx.lib.agw.speedmeter.SpeedMeter

SpeedMeter tries to reproduce the behavior of some car controls (but not only), by creating an “angular” control (actually, circular).

This is the main class implementation.

Class Hierarchy

Inheritance diagram for class SpeedMeter:

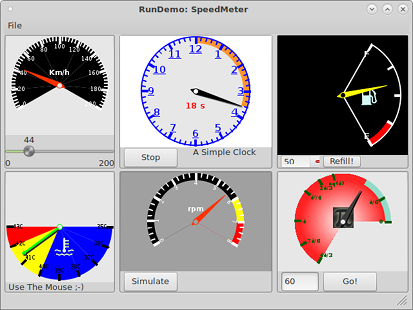

Control Appearance

wxMSW

wxMAC

wxGTK

Known Superclasses

wx.lib.agw.speedmeter.BufferedWindow

Methods Summary

__init__	Default class constructor.
CircleCoords	Converts the input values into logical x, y coordinates.
Draw	Draws everything on the empty bitmap.
DrawExternalArc	Specify whether or not you wish to draw the external (thicker) arc.
GetAngleRange	Returns the range of existence for SpeedMeter.
GetArcColour	Returns the external arc colour.
GetDirection	Returns the direction of advancing SpeedMeter value.
GetFillerColour	Returns the partial filler colour.
GetFirstGradientColour	Returns the first gradient colour (near the ticks).
GetHandColour	Returns the hand (arrow indicator) colour.
GetHandStyle	Returns the style for the hand (arrow indicator).
GetIntersection	Used internally.
GetIntervalColours	Returns the colours for the intervals.
GetIntervals	Returns the intervals for SpeedMeter, a Python list of main ticks displayed.
GetMiddleIcon	Returns the icon to be drawn near the center of SpeedMeter.
GetMiddleIconDimens	Used internally.
GetMiddleText	Returns the text to be drawn near the center of SpeedMeter.
GetMiddleTextColour	Returns the colour for the text in the middle.
GetMiddleTextFont	Returns the font for the text in the middle.
GetNumberOfSecondaryTicks	Returns the number of secondary (intermediate) ticks.
GetSecondGradientColour	Returns the first gradient colour (near the center).
GetShadowColour	Returns the hand’s shadow colour.
GetSpeedBackground	Returns the background colour outside the SpeedMeter control.
GetSpeedStyle	Returns a list of strings and a list of integers containing the styles.
GetSpeedValue	Returns the current value for SpeedMeter.
GetTicks	Returns the ticks for SpeedMeter intervals (main ticks string values).
GetTicksColour	Returns the ticks colour.
GetTicksFont	Returns the ticks font.
OnMouseMotion	Handles the wx.EVT_MOUSE_EVENTS event for SpeedMeter.
SetAngleRange	Sets the range of existence for SpeedMeter.
SetArcColour	Sets the external arc colour (thicker line).
SetDirection	Sets the direction of advancing SpeedMeter value.
SetFillerColour	Sets the partial filler colour.
SetFirstGradientColour	Sets the first gradient colour (near the ticks).
SetHandColour	Sets the hand (arrow indicator) colour.
SetHandStyle	Sets the style for the hand (arrow indicator).
SetIntervalColours	Sets the colours for the intervals.
SetIntervals	Sets the intervals for SpeedMeter (main ticks numeric values).
SetMiddleIcon	Sets the icon to be drawn near the center of SpeedMeter.
SetMiddleText	Sets the text to be drawn near the center of SpeedMeter.
SetMiddleTextColour	Sets the colour for the text in the middle.
SetMiddleTextFont	Sets the font for the text in the middle.
SetNumberOfSecondaryTicks	Sets the number of secondary (intermediate) ticks.
SetSecondGradientColour	Sets the second gradient colour (near the center).
SetShadowColour	Sets the hand’s shadow colour.
SetSpeedBackground	Sets the background colour outside the SpeedMeter control.
SetSpeedValue	Sets the current value for SpeedMeter.
SetTicks	Sets the ticks for SpeedMeter intervals (main ticks string values).
SetTicksColour	Sets the ticks colour.
SetTicksFont	Sets the ticks font.

Class API

class SpeedMeter(BufferedWindow)

SpeedMeter tries to reproduce the behavior of some car controls (but not only), by creating an “angular” control (actually, circular).

This is the main class implementation.

Methods

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, agwStyle=SM_DRAW_HAND, bufferedstyle=SM_BUFFERED_DC, mousestyle=0)

Default class constructor.

Parameters:

• parent – parent window. Must not be None;

• id – window identifier. A value of -1 indicates a default value;

• pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

• size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

• agwStyle –

  this value specifies the SpeedMeter styles, and can be a combination of the following bits:

  Window Styles	Hex Value	Description
  SM_ROTATE_TEXT	0x1	Draws the ticks rotated: the ticks are rotated accordingly to the tick marks positions.
  SM_DRAW_SECTORS	0x2	Different intervals are painted in different colours (every sector of the circle has its own colour).
  SM_DRAW_PARTIAL_SECTORS	0x4	Every interval has its own colour, but only a circle corona is painted near the ticks.
  SM_DRAW_HAND	0x8	The hand (arrow indicator) is drawn.
  SM_DRAW_SHADOW	0x10	A shadow for the hand is drawn.
  SM_DRAW_PARTIAL_FILLER	0x20	A circle corona that follows the hand position is drawn near the ticks.
  SM_DRAW_SECONDARY_TICKS	0x40	Intermediate (smaller) ticks are drawn between principal ticks.
  SM_DRAW_MIDDLE_TEXT	0x80	Some text is printed in the middle of the control near the center.
  SM_DRAW_MIDDLE_ICON	0x100	An icon is drawn in the middle of the control near the center.
  SM_DRAW_GRADIENT	0x200	A gradient of colours will fill the control.
  SM_DRAW_FANCY_TICKS	0x400	With this style you can use xml tags to create some custom text and draw it at the ticks position. See lib.fancytext for the tags.

• bufferedstyle –

  this value allows you to use the normal PaintDC or the double buffered drawing options:

  Buffered Styles	Hex Value	Description
  SM_NORMAL_DC	0x0	Uses the normal PaintDC
  SM_BUFFERED_DC	0x1	Uses the double buffered drawing style

• mousestyle – this value allows you to use the mouse to change the SpeedMeter value interactively with left click/drag events. If set to SM_MOUSE_TRACK, the mouse left click/drag allow you to change the SpeedMeter value interactively.

---

CircleCoords(self, radius, angle, centerX, centerY)

Converts the input values into logical x, y coordinates.

Parameters:

• radius – the SpeedMeter radius;

• angle – the angular position of the mouse;

• centerX – the x position of the SpeedMeter center;

• centerX – the y position of the SpeedMeter center.

---

Draw(self, dc)

Draws everything on the empty bitmap. Here all the chosen styles are applied.

Parameters:

dc – an instance of wx.DC.

---

DrawExternalArc(self, draw=True)

Specify whether or not you wish to draw the external (thicker) arc.

Parameters:

draw – True to draw the external arc, False otherwise.

---

GetAngleRange(self)

Returns the range of existence for SpeedMeter. The returned values are in radians.

---

GetArcColour(self)

Returns the external arc colour.

---

GetDirection(self)

Returns the direction of advancing SpeedMeter value.

---

GetFillerColour(self)

Returns the partial filler colour.

---

GetFirstGradientColour(self)

Returns the first gradient colour (near the ticks).

---

GetHandColour(self)

Returns the hand (arrow indicator) colour.

---

GetHandStyle(self)

Returns the style for the hand (arrow indicator).

---

GetIntersection(self, current, intervals)

Used internally.

---

GetIntervalColours(self)

Returns the colours for the intervals.

---

GetIntervals(self)

Returns the intervals for SpeedMeter, a Python list of main ticks displayed.

---

GetMiddleIcon(self)

Returns the icon to be drawn near the center of SpeedMeter.

---

GetMiddleIconDimens(self)

Used internally.

---

GetMiddleText(self)

Returns the text to be drawn near the center of SpeedMeter.

---

GetMiddleTextColour(self)

Returns the colour for the text in the middle.

---

GetMiddleTextFont(self)

Returns the font for the text in the middle.

---

GetNumberOfSecondaryTicks(self)

Returns the number of secondary (intermediate) ticks.

---

GetSecondGradientColour(self)

Returns the first gradient colour (near the center).

---

GetShadowColour(self)

Returns the hand’s shadow colour.

---

GetSpeedBackground(self)

Returns the background colour outside the SpeedMeter control.

---

GetSpeedStyle(self)

Returns a list of strings and a list of integers containing the styles.

---

GetSpeedValue(self)

Returns the current value for SpeedMeter.

---

GetTicks(self)

Returns the ticks for SpeedMeter intervals (main ticks string values).

---

GetTicksColour(self)

Returns the ticks colour.

---

GetTicksFont(self)

Returns the ticks font.

---

OnMouseMotion(self, event)

Handles the wx.EVT_MOUSE_EVENTS event for SpeedMeter.

Parameters:

event – a MouseEvent event to be processed.

Note

Here only left clicks/drags are involved. Should SpeedMeter have something more?

---

SetAngleRange(self, start=0, end=pi)

Sets the range of existence for SpeedMeter.

Parameters:

• start – the starting angle, in radians;

• end – the ending angle, in radians.

---

SetArcColour(self, colour=None)

Sets the external arc colour (thicker line).

Parameters:

colour – a valid wx.Colour object. If defaulted to None, the arc colour will be black.

---

SetDirection(self, direction=None)

Sets the direction of advancing SpeedMeter value.

Parameters:

direction – specifying “advance” will move the hand in clock-wise direction (like normal car speed control), while using “reverse” will move it counterclock-wise direction. If defaulted to None, then “advance” will be used.

---

SetFillerColour(self, colour=None)

Sets the partial filler colour.

A circle corona near the ticks will be filled with this colour, from the starting value to the current value of SpeedMeter.

Parameters:

colour – a valid wx.Colour object.

---

SetFirstGradientColour(self, colour=None)

Sets the first gradient colour (near the ticks).

Parameters:

colour – a valid wx.Colour object.

---

SetHandColour(self, colour=None)

Sets the hand (arrow indicator) colour.

Parameters:

colour – a valid wx.Colour object. If defaulted to None, the arrow indicator will be red.

---

SetHandStyle(self, style=None)

Sets the style for the hand (arrow indicator).

Parameters:

style – by specifying “Hand”, SpeedMeter will draw a polygon that simulates the car speed control indicator. Using “Arrow” will force SpeedMeter to draw a simple arrow. If defaulted to None, “Hand” will be used.

---

SetIntervalColours(self, colours=None)

Sets the colours for the intervals.

Parameters:

colours – a Python list of colours. The length of this list should be the same as the number of circle sectors in SpeedMeter. If defaulted to None, all the intervals will have a white colour.

Note

Every interval (circle sector) should have a colour.

---

SetIntervals(self, intervals=None)

Sets the intervals for SpeedMeter (main ticks numeric values).

Parameters:

intervals – a Python list of main ticks to be displayed. If defaulted to None, the list [0, 50, 100] is used.

---

SetMiddleIcon(self, icon)

Sets the icon to be drawn near the center of SpeedMeter.

Parameters:

icon – a valid wx.Bitmap object.

---

SetMiddleText(self, text=None)

Sets the text to be drawn near the center of SpeedMeter.

Parameters:

text – the text to be drawn near the center of SpeedMeter. If defaulted to None, an empty string will be used.

---

SetMiddleTextColour(self, colour=None)

Sets the colour for the text in the middle.

Parameters:

colour – a valid wx.Colour object. If defaulted to None, the text in the middle will be painted in blue.

---

SetMiddleTextFont(self, font=None)

Sets the font for the text in the middle.

Parameters:

font – a valid wx.Font object. If defaulted to None, some standard font will be generated.

---

SetNumberOfSecondaryTicks(self, ticknum=None)

Sets the number of secondary (intermediate) ticks.

Parameters:

ticknum – the number of intermediate ticks. If defaulted to None, 3 ticks are used.

---

SetSecondGradientColour(self, colour=None)

Sets the second gradient colour (near the center).

Parameters:

colour – a valid wx.Colour object.

---

SetShadowColour(self, colour=None)

Sets the hand’s shadow colour.

Parameters:

colour – a valid wx.Colour object. If defaulted to None, the shadow colour will be light grey.

---

SetSpeedBackground(self, colour=None)

Sets the background colour outside the SpeedMeter control.

Parameters:

colour – a valid wx.Colour object. If defaulted to None, the SpeedMeter background will be taken from the system default.

---

SetSpeedValue(self, value=None)

Sets the current value for SpeedMeter.

Parameters:

value – a floating point number representing the current value. If defaulted to None, the SpeedMeter value will be the middle point of the control range.

---

SetTicks(self, ticks=None)

Sets the ticks for SpeedMeter intervals (main ticks string values).

Parameters:

ticks – a Python list of strings, representing the ticks values. If defaulted to None, the ticks will be taken from the interval values.

---

SetTicksColour(self, colour=None)

Sets the ticks colour.

Parameters:

colour – a valid wx.Colour object. If defaulted to None, the ticks colour will be set as blue.

---

SetTicksFont(self, font=None)

Sets the ticks font.

Parameters:

font – a valid wx.Font object. If defaulted to None, some standard font will be chosen automatically.
