wx.lib.agw.shapedbutton.SBitmapButton

Subclass of SButton which displays a bitmap, acting like a wx.BitmapButton.

Class Hierarchy

Inheritance diagram for class SBitmapButton:

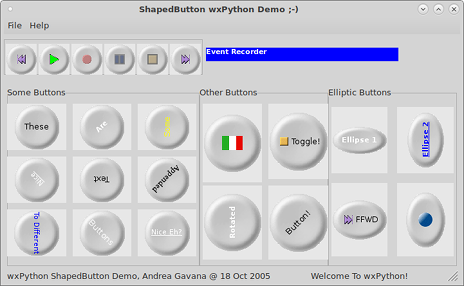

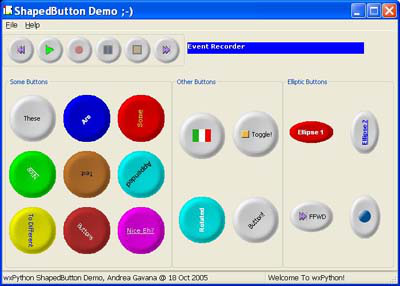

Control Appearance

wxMSW

wxMAC

wxGTK

Known Subclasses

wx.lib.agw.shapedbutton.SBitmapTextButton, wx.lib.agw.shapedbutton.SBitmapToggleButton

Known Superclasses

wx.lib.agw.shapedbutton.SButton

Methods Summary

__init__	Default class constructor.
DrawLabel	Draws the bitmap in the middle of the button.
GetBitmapDisabled	Returns the bitmap displayed when the button is disabled.
GetBitmapFocus	Returns the bitmap displayed when the button has the focus.
GetBitmapLabel	Returns the bitmap associated with the button in the normal state.
GetBitmapSelected	Returns the bitmap displayed when the button is selected (pressed).
SetBitmapDisabled	Sets the bitmap to display when the button is disabled.
SetBitmapFocus	Sets the bitmap to display when the button has the focus.
SetBitmapLabel	Sets the bitmap to display normally. This is the only one that is
SetBitmapSelected	Sets the bitmap to display when the button is selected (pressed).

Class API

class SBitmapButton(SButton)

Subclass of SButton which displays a bitmap, acting like a wx.BitmapButton.

Methods

__init__(self, parent, id, bitmap, pos=wx.DefaultPosition, size=wx.DefaultSize)

Default class constructor.

Parameters:

• parent – the SBitmapButton parent. Must not be None;

• id – window identifier. A value of -1 indicates a default value;

• bitmap – the button bitmap (if any);

• pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

• size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform.

---

DrawLabel(self, dc, width, height, dw=0, dh=0)

Draws the bitmap in the middle of the button.

Parameters:

• dc – an instance of wx.DC;

• width – the button width;

• height – the button height;

• dw – width differential, to show a 3D effect;

• dh – height differential, to show a 3D effect.

---

GetBitmapDisabled(self)

Returns the bitmap displayed when the button is disabled.

---

GetBitmapFocus(self)

Returns the bitmap displayed when the button has the focus.

---

GetBitmapLabel(self)

Returns the bitmap associated with the button in the normal state.

---

GetBitmapSelected(self)

Returns the bitmap displayed when the button is selected (pressed).

---

SetBitmapDisabled(self, bitmap)

Sets the bitmap to display when the button is disabled.

Parameters:

bitmap – a valid wx.Bitmap object.

---

SetBitmapFocus(self, bitmap)

Sets the bitmap to display when the button has the focus.

Parameters:

bitmap – a valid wx.Bitmap object.

---

SetBitmapLabel(self, bitmap, createothers=True)

Sets the bitmap to display normally. This is the only one that is required.

Parameters:

• bitmap – a valid wx.Bitmap object;

• createothers – if set to True, then the other bitmaps will be generated on the fly. Currently, only the disabled bitmap is generated.

---

SetBitmapSelected(self, bitmap)

Sets the bitmap to display when the button is selected (pressed).

Parameters:

bitmap – a valid wx.Bitmap object.
