wx.lib.agw.labelbook.FlatImageBook¶

Default implementation of the image book, it is like a Notebook, except that images are used to control the different pages. This container is usually used for configuration dialogs etc.

Note

Currently, this control works properly for images of size 32x32 and bigger.

Class Hierarchy¶

Inheritance diagram for class FlatImageBook:

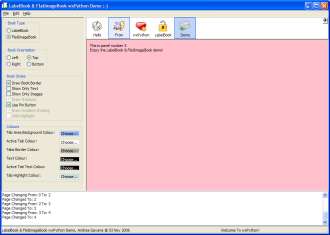

Control Appearance¶

Known Superclasses¶

wx.lib.agw.labelbook.FlatBookBase

Methods Summary¶

`__init__`	Default class constructor.
`CreateImageContainer`	Creates the image container class for `FlatImageBook`.

Class API¶

class FlatImageBook(FlatBookBase)¶

Default implementation of the image book, it is like a Notebook, except that images are used to control the different pages. This container is usually used for configuration dialogs etc.

Note

Currently, this control works properly for images of size 32x32 and bigger.

Methods¶

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0, agwStyle=0, name="FlatImageBook")¶

Default class constructor.

Parameters:

parent – parent window. Must not be None;
id – window identifier. A value of -1 indicates a default value;
pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;
size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;
style – the underlying Panel window style;

agwStyle –

the AGW-specific window style. This can be a combination of the following bits:

Window Styles	Hex Value	Description
`INB_BOTTOM`	0x1	Place labels below the page area. Available only for `FlatImageBook`.
`INB_LEFT`	0x2	Place labels on the left side. Available only for `FlatImageBook`.
`INB_RIGHT`	0x4	Place labels on the right side.
`INB_TOP`	0x8	Place labels above the page area.
`INB_BORDER`	0x10	Draws a border around `LabelBook` or `FlatImageBook`.
`INB_SHOW_ONLY_TEXT`	0x20	Shows only text labels and no images. Available only for `LabelBook`.
`INB_SHOW_ONLY_IMAGES`	0x40	Shows only tab images and no label texts. Available only for `LabelBook`.
`INB_FIT_BUTTON`	0x80	Displays a pin button to show/hide the book control.
`INB_DRAW_SHADOW`	0x100	Draw shadows below the book tabs. Available only for `LabelBook`.
`INB_USE_PIN_BUTTON`	0x200	Displays a pin button to show/hide the book control.
`INB_GRADIENT_BACKGROUND`	0x400	Draws a gradient shading on the tabs background. Available only for `LabelBook`.
`INB_WEB_HILITE`	0x800	On mouse hovering, tabs behave like html hyperlinks. Available only for `LabelBook`.
`INB_NO_RESIZE`	0x1000	Don’t allow resizing of the tab area.
`INB_FIT_LABELTEXT`	0x2000	Will fit the tab area to the longest text (or text+image if you have images) in all the tabs.
`INB_BOLD_TAB_SELECTION`	0x4000	Show the selected tab text using a bold font.

name – the window name.

CreateImageContainer(self)¶: Creates the image container class for FlatImageBook.
