phoenix_title wx.lib.agw.fourwaysplitter.FourWaySplitter

This class is very similar to SplitterWindow except that it allows for four windows and two sashes. Many of the same styles, constants, and methods behave the same as in SplitterWindow. However, in addition of the ability to drag the vertical and the horizontal sash, by dragging at the intersection between the two sashes, it is possible to resize the four windows at the same time.

Note

These things are not yet supported:

  • Minimum pane size (minimum of what? Width? Height?);

  • Using negative sash positions to indicate a position offset from the end;

  • User controlled unsplitting with double clicks on the sash (but supported via the FourWaySplitter.SetExpanded() method);

  • Sash gravity.


class_hierarchy Class Hierarchy

Inheritance diagram for class FourWaySplitter:

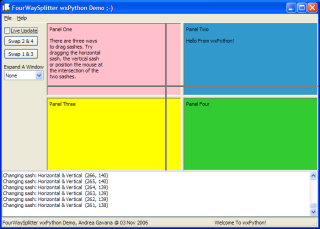

appearance Control Appearance


wxMSW

wxMSW

wxMAC

wxMAC

wxGTK

wxGTK


super_classes Known Superclasses

wx.Panel


method_summary Methods Summary

__init__

Default class constructor.

AdjustLayout

Adjust layout of FourWaySplitter. Mainly used to recalculate the

AppendWindow

Add a new window to the splitter at the right side or bottom

DetachWindow

Removes the window from the stack of windows managed by the splitter. The

DoGetBestSize

Gets the size which best suits the window: for a control, it would be the

DoSendChangingEvent

Sends a EVT_SPLITTER_SASH_POS_CHANGING event.

DrawSplitter

Actually draws the sashes.

DrawTrackSplitter

Draws a fake sash in case we don’t have wx.SP_LIVE_UPDATE style.

ExchangeWindows

Trade the positions in the splitter of the two windows.

GetAGWWindowStyleFlag

Returns the FourWaySplitter window style.

GetBottomLeft

Returns the bottom left window (window index: 2).

GetBottomRight

Returns the bottom right window (window index: 3).

GetMode

Determines the split mode for FourWaySplitter.

GetTopLeft

Returns the top left window (window index: 0).

GetTopRight

Returns the top right window (window index: 1).

GetWindow

Returns the window at the index idx.

InsertWindow

Insert a new window into the splitter at the position given in idx.

MoveSplit

Moves the split accordingly to user action.

OnEnterWindow

Handles the wx.EVT_ENTER_WINDOW event for FourWaySplitter.

OnLeaveWindow

Handles the wx.EVT_LEAVE_WINDOW event for FourWaySplitter.

OnLeftDown

Handles the wx.EVT_LEFT_DOWN event for FourWaySplitter.

OnLeftUp

Handles the wx.EVT_LEFT_UP event for FourWaySplitter.

OnMotion

Handles the wx.EVT_MOTION event for FourWaySplitter.

OnPaint

Handles the wx.EVT_PAINT event for FourWaySplitter.

OnSize

Handles the wx.EVT_SIZE event for FourWaySplitter.

ReplaceWindow

Replaces oldWindow (which is currently being managed by the

SetAGWWindowStyleFlag

Sets the FourWaySplitter window style flags.

SetExpanded

This method is used to expand one of the four window to fill the

SetHSplit

Change horizontal split fraction.

SetVSplit

Change vertical split fraction.

api Class API

class FourWaySplitter(wx.Panel)

This class is very similar to SplitterWindow except that it allows for four windows and two sashes. Many of the same styles, constants, and methods behave the same as in SplitterWindow. However, in addition of the ability to drag the vertical and the horizontal sash, by dragging at the intersection between the two sashes, it is possible to resize the four windows at the same time.

Note

These things are not yet supported:

  • Minimum pane size (minimum of what? Width? Height?);

  • Using negative sash positions to indicate a position offset from the end;

  • User controlled unsplitting with double clicks on the sash (but supported via the FourWaySplitter.SetExpanded() method);

  • Sash gravity.


Methods

__init__(self, parent, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0, agwStyle=0, name="FourWaySplitter")

Default class constructor.

Parameters:

  • parent – parent window. Must not be None;

  • id – window identifier. A value of -1 indicates a default value;

  • pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

  • size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

  • style – the underlying Panel window style;

  • agwStyle –

    the AGW-specific window style. It can be a combination of the following bits:

    Window Styles

    Hex Value

    Description

    SP_NOSASH

    0x10

    No sash will be drawn on FourWaySplitter.

    SP_LIVE_UPDATE

    0x80

    Don’t draw XOR line but resize the child windows immediately.

    SP_3DBORDER

    0x200

    Draws a 3D effect border.

  • name – the window name.


AdjustLayout(self)

Adjust layout of FourWaySplitter. Mainly used to recalculate the correct values for split fractions.


AppendWindow(self, window)

Add a new window to the splitter at the right side or bottom of the window stack.

Parameters:

window – an instance of wx.Window.


DetachWindow(self, window)

Removes the window from the stack of windows managed by the splitter. The window will still exist so you should Hide or Destroy it as needed.

Parameters:

window – an instance of wx.Window.


DoGetBestSize(self)

Gets the size which best suits the window: for a control, it would be the minimal size which doesn’t truncate the control, for a panel - the same size as it would have after a call to Fit().

Note

Overridden from Panel.


DoSendChangingEvent(self, pt)

Sends a EVT_SPLITTER_SASH_POS_CHANGING event.

Parameters:

pt – the point at which the splitter is being positioned.


DrawSplitter(self, dc)

Actually draws the sashes.

Parameters:

dc – an instance of wx.DC.


DrawTrackSplitter(self, x, y)

Draws a fake sash in case we don’t have wx.SP_LIVE_UPDATE style.

Parameters:

  • x – the x position of the sash;

  • y – the y position of the sash.

Note

This method relies on ScreenDC which is currently unavailable on wxMac.


ExchangeWindows(self, window1, window2)

Trade the positions in the splitter of the two windows.

Parameters:

GetAGWWindowStyleFlag(self)

Returns the FourWaySplitter window style.

See also

SetAGWWindowStyleFlag for a list of possible window styles.


GetBottomLeft(self)

Returns the bottom left window (window index: 2).


GetBottomRight(self)

Returns the bottom right window (window index: 3).


GetMode(self, pt)

Determines the split mode for FourWaySplitter.

Parameters:

pt – the point at which the mouse has been clicked, an instance of wx.Point.

Returns:

One of the following 3 split modes:

Split Mode

Description

wx.HORIZONTAL

the user has clicked on the horizontal sash

wx.VERTICAL

The user has clicked on the vertical sash

wx.BOTH

The user has clicked at the intersection between the 2 sashes


GetTopLeft(self)

Returns the top left window (window index: 0).


GetTopRight(self)

Returns the top right window (window index: 1).


GetWindow(self, idx)

Returns the window at the index idx.

Parameters:

idx – the index at which the window is located.


InsertWindow(self, idx, window, sashPos=-1)

Insert a new window into the splitter at the position given in idx.

Parameters:

  • idx – the index at which the window will be inserted;

  • window – an instance of wx.Window;

  • sashPos – the sash position after the window insertion.


MoveSplit(self, x, y)

Moves the split accordingly to user action.

Parameters:

  • x – the new splitter x coordinate;

  • y – the new splitter y coordinate.


OnEnterWindow(self, event)

Handles the wx.EVT_ENTER_WINDOW event for FourWaySplitter.

Parameters:

event – a MouseEvent event to be processed.


OnLeaveWindow(self, event)

Handles the wx.EVT_LEAVE_WINDOW event for FourWaySplitter.

Parameters:

event – a MouseEvent event to be processed.


OnLeftDown(self, event)

Handles the wx.EVT_LEFT_DOWN event for FourWaySplitter.

Parameters:

event – a MouseEvent event to be processed.


OnLeftUp(self, event)

Handles the wx.EVT_LEFT_UP event for FourWaySplitter.

Parameters:

event – a MouseEvent event to be processed.


OnMotion(self, event)

Handles the wx.EVT_MOTION event for FourWaySplitter.

Parameters:

event – a MouseEvent event to be processed.


OnPaint(self, event)

Handles the wx.EVT_PAINT event for FourWaySplitter.

Parameters:

event – a PaintEvent event to be processed.


OnSize(self, event)

Handles the wx.EVT_SIZE event for FourWaySplitter.

Parameters:

event – a wx.SizeEvent event to be processed.


ReplaceWindow(self, oldWindow, newWindow)

Replaces oldWindow (which is currently being managed by the splitter) with newWindow. The oldWindow window will still exist so you should Hide or Destroy it as needed.

Parameters:

SetAGWWindowStyleFlag(self, agwStyle)

Sets the FourWaySplitter window style flags.

Parameters:

agwStyle –

the AGW-specific window style. This can be a combination of the following bits:

Window Styles

Hex Value

Description

SP_NOSASH

0x10

No sash will be drawn on FourWaySplitter.

SP_LIVE_UPDATE

0x80

Don’t draw XOR line but resize the child windows immediately.

SP_3DBORDER

0x200

Draws a 3D effect border.


SetExpanded(self, expanded)

This method is used to expand one of the four window to fill the whole client size (when expanded >= 0) or to return to the four-window view (when expanded < 0).

Parameters:

expanded – an integer >= 0 to expand a window to fill the whole client size, or an integer < 0 to return to the four-window view.


SetHSplit(self, s)

Change horizontal split fraction.

Parameters:

s –

the split fraction, which is an integer value between 0 and 10000 (inclusive), indicating how much space to allocate to the leftmost panes. For example, to split the panes at 35 percent, use:

fourSplitter.SetHSplit(3500)


SetVSplit(self, s)

Change vertical split fraction.

Parameters:

s –

the split fraction, which is an integer value between 0 and 10000 (inclusive), indicating how much space to allocate to the topmost panes. For example, to split the panes at 35 percent, use:

fourSplitter.SetVSplit(3500)
