wx.dataview.DataViewTreeCtrl¶

This class is a wx.dataview.DataViewCtrl which internally uses a wx.dataview.DataViewTreeStore and forwards most of its API to that class.

Additionally, it uses a wx.ImageList to store a list of icons.

The main purpose of this class is to provide a simple upgrade path for code using wx.TreeCtrl.

^^

Window Styles¶

This class supports the following styles:

See wx.dataview.DataViewCtrl for the list of supported styles. ^^

^^

Events Emitted by this Class¶

Event macros for events emitted by this class:

See wx.dataview.DataViewCtrl for the list of events emitted by this class. ^^

New in version 2.9.0.

Class Hierarchy¶

Inheritance diagram for class DataViewTreeCtrl:

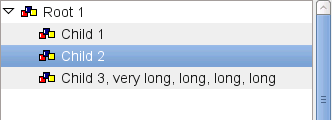

Control Appearance¶

Methods Summary¶

`__init__`	Default constructor.
`AppendContainer`	Appends a container to the given parent.
`AppendItem`	Appends an item to the given parent.
`Create`	Creates the control and a wx.dataview.DataViewTreeStore as its internal model.
`DeleteAllItems`	Calls the identical method from wx.dataview.DataViewTreeStore.
`DeleteChildren`	Calls the identical method from wx.dataview.DataViewTreeStore.
`DeleteItem`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetChildCount`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetClassDefaultAttributes`
`GetImageList`	Returns the image list.
`GetItemData`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetItemExpandedIcon`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetItemIcon`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetItemParent`	Returns the item’s parent.
`GetItemText`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetNthChild`	Calls the identical method from wx.dataview.DataViewTreeStore.
`GetStore`	Returns the store.
`InsertContainer`	Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.
`InsertItem`	Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.
`IsContainer`	Returns `True` if item is a container.
`PrependContainer`	Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.
`PrependItem`	Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.
`SetImageList`	Sets the image list.
`SetItemData`	Calls the identical method from wx.dataview.DataViewTreeStore.
`SetItemExpandedIcon`	Calls the identical method from wx.dataview.DataViewTreeStore.
`SetItemIcon`	Calls the identical method from wx.dataview.DataViewTreeStore.
`SetItemText`	Calls the identical method from wx.dataview.DataViewTreeStore.

Properties Summary¶

`ImageList`	See `GetImageList` and `SetImageList`
`Store`	See `GetStore`

Class API¶

class wx.dataview.DataViewTreeCtrl(DataViewCtrl)¶

Possible constructors:

DataViewTreeCtrl()

DataViewTreeCtrl(parent, id=ID_ANY, pos=DefaultPosition,
                 size=DefaultSize, style=DV_NO_HEADER|DV_ROW_LINES,
                 validator=DefaultValidator)

This class is a DataViewCtrl which internally uses a DataViewTreeStore and forwards most of its API to that class.

Methods¶

__init__(self, *args, **kw)¶

Overloaded Implementations:

__init__ (self)

Default constructor.

__init__ (self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=DV_NO_HEADER|DV_ROW_LINES, validator=DefaultValidator)

Constructor.

Calls Create .

Parameters:

parent (wx.Window) –
id (wx.WindowID) –
pos (wx.Point) –
size (wx.Size) –
style (long) –
validator (wx.Validator) –

AppendContainer(self, parent, text, icon=-1, expanded=-1, data=None)¶

Appends a container to the given parent.

Parameters:

parent (wx.dataview.DataViewItem) –
text (string) –
icon (int) –
expanded (int) –
data (ClientData) –

Return type:

wx.dataview.DataViewItem

AppendItem(self, parent, text, icon=-1, data=None)¶

Appends an item to the given parent.

Parameters:

parent (wx.dataview.DataViewItem) –
text (string) –
icon (int) –
data (ClientData) –

Return type:

wx.dataview.DataViewItem

Create(self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=DV_NO_HEADER|DV_ROW_LINES, validator=DefaultValidator)¶

Creates the control and a wx.dataview.DataViewTreeStore as its internal model.

The default tree column created by this method is an editable column using wx.dataview.DataViewIconTextRenderer as its renderer.

Parameters:

parent (wx.Window) –
id (wx.WindowID) –
pos (wx.Point) –
size (wx.Size) –
style (long) –
validator (wx.Validator) –

Return type:

bool

DeleteAllItems(self)¶: Calls the identical method from wx.dataview.DataViewTreeStore.

DeleteChildren(self, item)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: item (wx.dataview.DataViewItem) –

DeleteItem(self, item)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: item (wx.dataview.DataViewItem) –

GetChildCount(self, parent)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: parent (wx.dataview.DataViewItem) –
Return type:: int

static GetClassDefaultAttributes(variant=WINDOW_VARIANT_NORMAL)¶

Parameters:: variant (WindowVariant) –
Return type:: VisualAttributes

GetImageList(self)¶

Returns the image list.

Return type:: ImageList

GetItemData(self, item)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: item (wx.dataview.DataViewItem) –
Return type:: ClientData

GetItemExpandedIcon(self, item)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: item (wx.dataview.DataViewItem) –
Return type:: Icon

GetItemIcon(self, item)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: item (wx.dataview.DataViewItem) –
Return type:: Icon

GetItemParent(self, item)¶

Returns the item’s parent.

Parameters:: item (wx.dataview.DataViewItem) –
Return type:: wx.dataview.DataViewItem

New in version 4.1/wxWidgets-3.1.6.

GetItemText(self, item)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:: item (wx.dataview.DataViewItem) –
Return type:: string

GetNthChild(self, parent, pos)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:

parent (wx.dataview.DataViewItem) –
pos (int) –

Return type:

wx.dataview.DataViewItem

GetStore(self)¶

Returns the store.

Return type:: wx.dataview.DataViewTreeStore

InsertContainer(self, parent, previous, text, icon=-1, expanded=-1, data=None)¶

Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.

Parameters:

parent (wx.dataview.DataViewItem) –
previous (wx.dataview.DataViewItem) –
text (string) –
icon (int) –
expanded (int) –
data (ClientData) –

Return type:

wx.dataview.DataViewItem

InsertItem(self, parent, previous, text, icon=-1, data=None)¶

Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.

Parameters:

parent (wx.dataview.DataViewItem) –
previous (wx.dataview.DataViewItem) –
text (string) –
icon (int) –
data (ClientData) –

Return type:

wx.dataview.DataViewItem

IsContainer(self, item)¶

Returns True if item is a container.

Parameters:: item (wx.dataview.DataViewItem) –
Return type:: bool

PrependContainer(self, parent, text, icon=-1, expanded=-1, data=None)¶

Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.

Parameters:

parent (wx.dataview.DataViewItem) –
text (string) –
icon (int) –
expanded (int) –
data (ClientData) –

Return type:

wx.dataview.DataViewItem

PrependItem(self, parent, text, icon=-1, data=None)¶

Calls the same method from wx.dataview.DataViewTreeStore but uses an index position in the image list instead of a wx.Icon.

Parameters:

parent (wx.dataview.DataViewItem) –
text (string) –
icon (int) –
data (ClientData) –

Return type:

wx.dataview.DataViewItem

SetImageList(self, imagelist)¶

Sets the image list.

Parameters:: imagelist (wx.ImageList) –

SetItemData(self, item, data)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:

item (wx.dataview.DataViewItem) –
data (ClientData) –

SetItemExpandedIcon(self, item, icon)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:

item (wx.dataview.DataViewItem) –
icon (wx.BitmapBundle) –

SetItemIcon(self, item, icon)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:

item (wx.dataview.DataViewItem) –
icon (wx.BitmapBundle) –

SetItemText(self, item, text)¶

Calls the identical method from wx.dataview.DataViewTreeStore.

Parameters:

item (wx.dataview.DataViewItem) –
text (string) –

Properties¶

ImageList¶: See GetImageList and SetImageList

Store¶: See GetStore
