phoenix_title wx.dataview.DataViewCtrl

wx.dataview.DataViewCtrl is a control to display data either in a tree like fashion or in a tabular form or both.

If you only need to display a simple tree structure with an API more like the older wx.TreeCtrl class, then the specialized wx.dataview.DataViewTreeCtrl can be used. Likewise, if you only want to display simple table structure you can use the specialized wx.dataview.DataViewListCtrl class. Both wx.dataview.DataViewTreeCtrl and wx.dataview.DataViewListCtrl can be used without defining your own wx.dataview.DataViewModel.

A wx.dataview.DataViewItem is used to represent a (visible) item in the control.

Unlike wx.ListCtrl, wx.dataview.DataViewCtrl doesn’t get its data from the user through virtual functions or by setting it directly. Instead you need to write your own wx.dataview.DataViewModel and associate it with this control. Then you need to add a number of wx.dataview.DataViewColumn to this control to define what each column shall display. Each wx.dataview.DataViewColumn in turn owns 1 instance of a wx.dataview.DataViewRenderer to render its cells.

A number of standard renderers for rendering text, dates, images, toggle, a progress bar etc. are provided. Additionally, the user can write custom renderers deriving from wx.dataview.DataViewCustomRenderer for displaying anything.

All data transfer from the control to the model and the user code is done through Variant which can be extended to support more data formats as necessary. Accordingly, all type information uses the strings returned from Variant.GetType .

This control supports single column sorting and on some platforms (currently only those using the generic version, i.e. not wxGTK nor wxOSX) also sorting by multiple columns at once. The latter must be explicitly enabled using AllowMultiColumnSort, which will also indicate whether this feature is supported, as it changes the default behaviour of right clicking the column header to add or remove it to the set of columns used for sorting. If this behaviour is not appropriate, you may handle wxEVT_DATAVIEW_COLUMN_HEADER_RIGHT_CLICK event yourself to prevent it from happening. In this case you would presumably call ToggleSortByColumn from some other event handler to still allow the user to configure sort order somehow.

styles Window Styles

This class supports the following styles:

  • wx.dataview.DV_SINGLE: Single selection mode. This is the default.

  • wx.dataview.DV_MULTIPLE: Multiple selection mode.

  • wx.dataview.DV_ROW_LINES: Use alternating colours for odd and even rows.

  • wx.dataview.DV_HORIZ_RULES: Display the separator lines between rows.

  • wx.dataview.DV_VERT_RULES: Display the separator lines between columns.

  • wx.dataview.DV_VARIABLE_LINE_HEIGHT: Allow variable line heights. This can be inefficient when displaying large number of items.

  • wx.dataview.DV_NO_HEADER: Do not show column headers (which are shown by default).

events Events Emitted by this Class

Handlers bound for the following event types will receive a wx.dataview.DataViewEvent parameter.

  • EVT_DATAVIEW_SELECTION_CHANGED: Process a wxEVT_DATAVIEW_SELECTION_CHANGED event.

  • EVT_DATAVIEW_ITEM_ACTIVATED: Process a wxEVT_DATAVIEW_ITEM_ACTIVATED event. This event is triggered by double clicking an item or pressing some special key (usually “Enter”) when it is focused.

  • EVT_DATAVIEW_ITEM_START_EDITING: Process a wxEVT_DATAVIEW_ITEM_START_EDITING event. This event can be vetoed in order to prevent editing on an item by item basis.

  • EVT_DATAVIEW_ITEM_EDITING_STARTED: Process a wxEVT_DATAVIEW_ITEM_EDITING_STARTED event.

  • EVT_DATAVIEW_ITEM_EDITING_DONE: Process a wxEVT_DATAVIEW_ITEM_EDITING_DONE event.

  • EVT_DATAVIEW_ITEM_COLLAPSING: Process a wxEVT_DATAVIEW_ITEM_COLLAPSING event.

  • EVT_DATAVIEW_ITEM_COLLAPSED: Process a wxEVT_DATAVIEW_ITEM_COLLAPSED event.

  • EVT_DATAVIEW_ITEM_EXPANDING: Process a wxEVT_DATAVIEW_ITEM_EXPANDING event.

  • EVT_DATAVIEW_ITEM_EXPANDED: Process a wxEVT_DATAVIEW_ITEM_EXPANDED event.

  • EVT_DATAVIEW_ITEM_VALUE_CHANGED: Process a wxEVT_DATAVIEW_ITEM_VALUE_CHANGED event.

  • EVT_DATAVIEW_ITEM_CONTEXT_MENU: Process a wxEVT_DATAVIEW_ITEM_CONTEXT_MENU event generated when the user right clicks inside the control. Notice that this menu is generated even if the click didn’t occur on any valid item, in this case wx.dataview.DataViewEvent.GetItem simply returns an invalid item.

  • EVT_DATAVIEW_COLUMN_HEADER_CLICK: Process a wxEVT_DATAVIEW_COLUMN_HEADER_CLICK event.

  • EVT_DATAVIEW_COLUMN_HEADER_RIGHT_CLICK: Process a wxEVT_DATAVIEW_COLUMN_HEADER_RIGHT_CLICK event. Notice that currently this event is not generated in the native macOS versions of the control.

  • EVT_DATAVIEW_COLUMN_SORTED: Process a wxEVT_DATAVIEW_COLUMN_SORTED event.

  • EVT_DATAVIEW_COLUMN_REORDERED: Process a wxEVT_DATAVIEW_COLUMN_REORDERED event.

  • EVT_DATAVIEW_ITEM_BEGIN_DRAG: Process a wxEVT_DATAVIEW_ITEM_BEGIN_DRAG event which is generated when the user starts dragging a valid item. This event must be processed and wx.dataview.DataViewEvent.SetDataObject must be called to actually start dragging the item.

  • EVT_DATAVIEW_ITEM_DROP_POSSIBLE: Process a wxEVT_DATAVIEW_ITEM_DROP_POSSIBLE event.

  • EVT_DATAVIEW_ITEM_DROP: Process a wxEVT_DATAVIEW_ITEM_DROP event.

Notice that this control doesn’t allow to process generic mouse events such as

wxEVT_LEFT_DOWN in all ports (notably it doesn’t work in wxGTK). If you need to handle any mouse events not covered by the ones above, consider using a custom renderer for the cells that must handle them.

Note

Under wxMSW this control uses SystemThemedControl for an explorer style appearance by default since wxWidgets 3.1.0. If this is not desired, you can call SystemThemedControl.EnableSystemTheme with false argument to disable this.


class_hierarchy Class Hierarchy

Inheritance diagram for class DataViewCtrl:

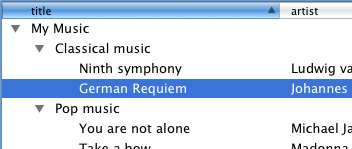

appearance Control Appearance


wxMSW

wxMSW

wxMAC

wxMAC

wxGTK

wxGTK


method_summary Methods Summary

__init__

Default Constructor.

AllowMultiColumnSort

Call to allow using multiple columns for sorting.

AppendBitmapColumn

Appends a column for rendering a bitmap.

AppendColumn

Appends a wx.dataview.DataViewColumn to the control.

AppendDateColumn

Appends a column for rendering a date.

AppendIconTextColumn

Appends a column for rendering text with an icon.

AppendProgressColumn

Appends a column for rendering a progress indicator.

AppendTextColumn

Appends a column for rendering text.

AppendToggleColumn

Appends a column for rendering a toggle.

_AssociateModel

Associates a wx.dataview.DataViewModel with the control.

AssociateModel

Associates a DataViewModel with the control.

ClearColumns

Removes all columns.

Collapse

Collapses the item.

Create

Create the control.

DeleteColumn

Deletes given column.

EditItem

Programmatically starts editing given cell of item.

EnableDragSource

Enable drag operations using the given format.

EnableDropTarget

Enable drop operations using the given format.

EnableSystemTheme

Can be used to disable the system theme of controls using it by default.

EnsureVisible

Call this to ensure that the given item is visible.

Expand

Expands the item.

ExpandAncestors

Expands all ancestors of the item.

GetClassDefaultAttributes

GetColumn

Returns pointer to the column.

GetColumnCount

Returns the number of columns.

GetColumnPosition

Returns the position of the column or -1 if not found in the control.

GetColumns

Returns a list of column objects.

GetCountPerPage

Return the number of items that can fit vertically in the visible area of the control.

GetCurrentColumn

Returns the column that currently has focus.

GetCurrentItem

Returns the currently focused item.

GetExpanderColumn

Returns column containing the expanders.

GetIndent

Returns indentation.

GetItemRect

Returns item rectangle.

GetMainWindow

Returns the window corresponding to the main area of the control.

GetModel

Returns pointer to the data model associated with the control (if any).

GetSelectedItemsCount

Returns the number of currently selected items.

GetSelection

Returns first selected item or an invalid item if none is selected.

GetSelections

Returns a list of the currently selected items.

GetSortingColumn

Returns the wx.dataview.DataViewColumn currently responsible for sorting or None if none has been selected.

GetTopItem

Return the topmost visible item.

HasSelection

Returns True if any items are currently selected.

HitTest

HitTest(point) . (item, col)

InsertColumn

Inserts a wx.dataview.DataViewColumn to the control.

IsExpanded

Return True if the item is expanded.

IsMultiColumnSortAllowed

Return True if using more than one column for sorting is allowed.

IsSelected

Return True if the item is selected.

PrependBitmapColumn

Prepends a column for rendering a bitmap.

PrependColumn

Prepends a wx.dataview.DataViewColumn to the control.

PrependDateColumn

Prepends a column for rendering a date.

PrependIconTextColumn

Prepends a column for rendering text with an icon.

PrependProgressColumn

Prepends a column for rendering a progress indicator.

PrependTextColumn

Prepends a column for rendering text.

PrependToggleColumn

Prepends a column for rendering a toggle.

Select

Select the given item.

SelectAll

Select all items.

SetAlternateRowColour

Set custom colour for the alternate rows used with wx.dataview.DV_ROW_LINES style.

SetCurrentItem

Changes the currently focused item.

SetExpanderColumn

Set which column shall contain the tree-like expanders.

SetHeaderAttr

Set custom colours and/or font to use for the header.

SetIndent

Sets the indentation.

SetRowHeight

Sets the row height.

SetSelections

Sets the selection to the array of DataViewItems.

ToggleSortByColumn

Toggle sorting by the given column.

Unselect

Unselect the given item.

UnselectAll

Unselect all item.


api Class API

class wx.dataview.DataViewCtrl(Control)

Possible constructors:

DataViewCtrl()

DataViewCtrl(parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize,
             style=0, validator=DefaultValidator, name=DataViewCtrlNameStr)

DataViewCtrl is a control to display data either in a tree like fashion or in a tabular form or both.


Methods

__init__(self, *args, **kw)

overload Overloaded Implementations:



__init__ (self)

Default Constructor.



__init__ (self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=0, validator=DefaultValidator, name=DataViewCtrlNameStr)

Constructor.

Calls Create .

Parameters





AllowMultiColumnSort(self, allow)

Call to allow using multiple columns for sorting.

When using multiple column for sorting, GetSortingColumns method should be used to retrieve all the columns which should be used to effectively sort the data when processing the sorted event.

Currently multiple column sort is only implemented in the generic version, i.e. this functionality is not available when using the native wx.dataview.DataViewCtrl implementation in wxGTK nor wxOSX.

Parameters

allow (bool) –

Return type

bool

Returns

True if sorting by multiple columns could be enabled, False otherwise, typically because this feature is not supported.

New in version 4.1/wxWidgets-3.1.0.



AppendBitmapColumn(self, *args, **kw)

Appends a column for rendering a bitmap.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

overload Overloaded Implementations:



AppendBitmapColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



AppendBitmapColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





AppendColumn(self, col)

Appends a wx.dataview.DataViewColumn to the control.

Returns True on success.

Note that there is a number of short cut methods which implicitly create a wx.dataview.DataViewColumn and a wx.dataview.DataViewRenderer for it (see below).

Parameters

col (wx.dataview.DataViewColumn) –

Return type

bool



AppendDateColumn(self, *args, **kw)

Appends a column for rendering a date.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



AppendDateColumn (self, label, model_column, mode=DATAVIEW_CELL_ACTIVATABLE, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



AppendDateColumn (self, label, model_column, mode=DATAVIEW_CELL_ACTIVATABLE, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





AppendIconTextColumn(self, *args, **kw)

Appends a column for rendering text with an icon.

Returns the wx.dataview.DataViewColumn created in the function or None on failure. This method uses the wx.dataview.DataViewIconTextRenderer class.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



AppendIconTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



AppendIconTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





AppendProgressColumn(self, *args, **kw)

Appends a column for rendering a progress indicator.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



AppendProgressColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=80, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



AppendProgressColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=80, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





AppendTextColumn(self, *args, **kw)

Appends a column for rendering text.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



AppendTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



AppendTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





AppendToggleColumn(self, *args, **kw)

Appends a column for rendering a toggle.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



AppendToggleColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=30, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



AppendToggleColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=30, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





_AssociateModel(self, model)

Associates a wx.dataview.DataViewModel with the control.

This increases the reference count of the model by 1.

Parameters

model (wx.dataview.DataViewModel) –

Return type

bool



AssociateModel(self, model)

Associates a DataViewModel with the control. Ownership of the model object is passed to C++, however it is reference counted so it can be shared with other views.



ClearColumns(self)

Removes all columns.

Return type

bool



Collapse(self, item)

Collapses the item.

Parameters

item (wx.dataview.DataViewItem) –



Create(self, parent, id=ID_ANY, pos=DefaultPosition, size=DefaultSize, style=0, validator=DefaultValidator, name=DataViewCtrlNameStr)

Create the control.

Useful for two step creation.

Parameters
Return type

bool



DeleteColumn(self, column)

Deletes given column.

Parameters

column (wx.dataview.DataViewColumn) –

Return type

bool



EditItem(self, item, column)

Programmatically starts editing given cell of item.

Doesn’t do anything if the item or this column is not editable.

Parameters

New in version 2.9.4.



EnableDragSource(self, format)

Enable drag operations using the given format.

Parameters

format (wx.DataFormat) –

Return type

bool



EnableDropTarget(self, format)

Enable drop operations using the given format.

Parameters

format (wx.DataFormat) –

Return type

bool



EnableSystemTheme(self, enable=True)

Can be used to disable the system theme of controls using it by default.

On Windows there an alternative theme available for the list and list-like controls since Windows Vista. This theme is used by Windows Explorer list and tree view and so is arguably more familiar to the users than the standard appearance of these controls. This class automatically uses the new theme, but if that is not desired then this method can be used to turn it off.

Please note that this method should be called before the widget is actually created, using the 2-phase create pattern. Something like this:

# This creates the object, but not the window
widget = wx.dataview.DataViewCtrl()

# Disable the system theme
widget.EnableSystemTheme(False)

# Now create the window
widget.Create(parent, wx.``wx.ID_ANY``)

This method has no effect on other platorms

Parameters

enable (bool) –



EnsureVisible(self, item, column=None)

Call this to ensure that the given item is visible.

Parameters


Expand(self, item)

Expands the item.

Parameters

item (wx.dataview.DataViewItem) –



ExpandAncestors(self, item)

Expands all ancestors of the item.

This method also ensures that the item itself as well as all ancestor items have been read from the model by the control.

Parameters

item (wx.dataview.DataViewItem) –



static GetClassDefaultAttributes(variant=WINDOW_VARIANT_NORMAL)
Parameters

variant (WindowVariant) –

Return type

VisualAttributes



GetColumn(self, pos)

Returns pointer to the column.

pos refers to the position in the control which may change after reordering columns by the user.

Parameters

pos (int) –

Return type

wx.dataview.DataViewColumn



GetColumnCount(self)

Returns the number of columns.

Return type

int



GetColumnPosition(self, column)

Returns the position of the column or -1 if not found in the control.

Parameters

column (wx.dataview.DataViewColumn) –

Return type

int



GetColumns(self)

Returns a list of column objects.



GetCountPerPage(self)

Return the number of items that can fit vertically in the visible area of the control.

Returns -1 if the number of items per page couldn’t be determined. On wxGTK this method can only determine the number of items per page if there is at least one item in the control.

Return type

int

New in version 4.1/wxWidgets-3.1.1.



GetCurrentColumn(self)

Returns the column that currently has focus.

If the focus is set to individual cell within the currently focused item (as opposed to being on the item as a whole), then this is the column that the focus is on.

Returns None if no column currently has focus.

Return type

wx.dataview.DataViewColumn

New in version 2.9.4.

See also

GetCurrentItem



GetCurrentItem(self)

Returns the currently focused item.

This is the item that the keyboard commands apply to. It may be invalid if there is no focus currently.

This method is mostly useful for the controls with DV_MULTIPLE style as in the case of single selection it returns the same thing as GetSelection .

Notice that under all platforms except macOS the currently focused item may be selected or not but under macOS the current item is always selected.

Return type

wx.dataview.DataViewItem

New in version 2.9.2.



GetExpanderColumn(self)

Returns column containing the expanders.

Return type

wx.dataview.DataViewColumn



GetIndent(self)

Returns indentation.

Return type

int



GetItemRect(self, item, col=None)

Returns item rectangle.

If item is not currently visible, either because its parent is collapsed or it is outside of the visible part of the control due to the current vertical scrollbar position, return an empty rectangle.

Coordinates of the rectangle are specified in wx.dataview.DataViewCtrl client area coordinates.

Parameters
Return type

Rect



GetMainWindow(self)

Returns the window corresponding to the main area of the control.

This is the window that actually shows the control items and may be different from wx.dataview.DataViewCtrl window itself in some ports (currently this is only the case for the generic implementation used by default under MSW).

Return type

Window



GetModel(self)

Returns pointer to the data model associated with the control (if any).

Return type

wx.dataview.DataViewModel



GetSelectedItemsCount(self)

Returns the number of currently selected items.

This method may be called for both the controls with single and multiple selections and returns the number of selected item, possibly 0, in any case.

Return type

int

New in version 2.9.3.



GetSelection(self)

Returns first selected item or an invalid item if none is selected.

This method may be called for both the controls with single and multiple selections but returns an invalid item if more than one item is selected in the latter case, use HasSelection to determine if there are any selected items when using multiple selection.

Return type

wx.dataview.DataViewItem



GetSelections(self)

Returns a list of the currently selected items.

Return type

DataViewItemArray



GetSortingColumn(self)

Returns the wx.dataview.DataViewColumn currently responsible for sorting or None if none has been selected.

Return type

wx.dataview.DataViewColumn



GetTopItem(self)

Return the topmost visible item.

Returns an invalid item if there is no topmost visible item or if the method is not implemented for the current platform.

Return type

wx.dataview.DataViewItem

New in version 4.1/wxWidgets-3.1.1.



HasSelection(self)

Returns True if any items are currently selected.

This method may be called for both the controls with single and multiple selections.

Calling this method is equivalent to calling GetSelectedItemsCount and comparing its result with 0 but is more clear and might also be implemented more efficiently in the future.

Return type

bool

New in version 2.9.3.



HitTest(self, point)

HitTest(point) . (item, col)

Returns the item and column located at point, as a 2 element tuple.

Return type

PyObject



InsertColumn(self, pos, col)

Inserts a wx.dataview.DataViewColumn to the control.

Returns True on success.

Parameters
Return type

bool



IsExpanded(self, item)

Return True if the item is expanded.

Parameters

item (wx.dataview.DataViewItem) –

Return type

bool

Note

When using the native macOS version this method has a bug which may result in returning True even for items without children.



IsMultiColumnSortAllowed(self)

Return True if using more than one column for sorting is allowed.

See AllowMultiColumnSort and GetSortingColumns .

Return type

bool

New in version 4.1/wxWidgets-3.1.0.



IsSelected(self, item)

Return True if the item is selected.

Parameters

item (wx.dataview.DataViewItem) –

Return type

bool



PrependBitmapColumn(self, *args, **kw)

Prepends a column for rendering a bitmap.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

overload Overloaded Implementations:



PrependBitmapColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



PrependBitmapColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





PrependColumn(self, col)

Prepends a wx.dataview.DataViewColumn to the control.

Returns True on success.

Note that there is a number of short cut methods which implicitly create a wx.dataview.DataViewColumn and a wx.dataview.DataViewRenderer for it.

Parameters

col (wx.dataview.DataViewColumn) –

Return type

bool



PrependDateColumn(self, *args, **kw)

Prepends a column for rendering a date.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



PrependDateColumn (self, label, model_column, mode=DATAVIEW_CELL_ACTIVATABLE, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



PrependDateColumn (self, label, model_column, mode=DATAVIEW_CELL_ACTIVATABLE, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





PrependIconTextColumn(self, *args, **kw)

Prepends a column for rendering text with an icon.

Returns the wx.dataview.DataViewColumn created in the function or None on failure. This method uses the wx.dataview.DataViewIconTextRenderer class.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



PrependIconTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



PrependIconTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





PrependProgressColumn(self, *args, **kw)

Prepends a column for rendering a progress indicator.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



PrependProgressColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=80, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



PrependProgressColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=80, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





PrependTextColumn(self, *args, **kw)

Prepends a column for rendering text.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



PrependTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



PrependTextColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=-1, align=ALIGN_NOT, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





PrependToggleColumn(self, *args, **kw)

Prepends a column for rendering a toggle.

Returns the wx.dataview.DataViewColumn created in the function or None on failure.

Note

The align parameter is applied to both the column header and the column renderer.

overload Overloaded Implementations:



PrependToggleColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=30, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
  • label (string) –

  • model_column (int) –

  • mode (DataViewCellMode) –

  • width (int) –

  • align (Alignment) –

  • flags (int) –

Return type

wx.dataview.DataViewColumn



PrependToggleColumn (self, label, model_column, mode=DATAVIEW_CELL_INERT, width=30, align=ALIGN_CENTER, flags=DATAVIEW_COL_RESIZABLE)

Parameters
Return type

wx.dataview.DataViewColumn





Select(self, item)

Select the given item.

In single selection mode this changes the (unique) currently selected item. In multi selection mode, the item is selected and the previously selected items remain selected.

Parameters

item (wx.dataview.DataViewItem) –



SelectAll(self)

Select all items.



SetAlternateRowColour(self, colour)

Set custom colour for the alternate rows used with wx.dataview.DV_ROW_LINES style.

Note that calling this method has no effect if wx.dataview.DV_ROW_LINES is off.

Parameters

colour (wx.Colour) – The colour to use for the alternate rows.

Return type

bool

Returns

True if customizing this colour is supported (currently only in the generic version), False if this method is not implemented under this platform.

New in version 4.1/wxWidgets-3.1.1.



SetCurrentItem(self, item)

Changes the currently focused item.

The item parameter must be valid, there is no way to remove the current item from the control.

In single selection mode, calling this method is the same as calling Select and is thus not very useful. In multiple selection mode this method only moves the current item however without changing the selection except under macOS where the current item is always selected, so calling SetCurrentItem selects item if it hadn’t been selected before.

Parameters

item (wx.dataview.DataViewItem) –

New in version 2.9.2.

See also

GetCurrentItem



SetExpanderColumn(self, col)

Set which column shall contain the tree-like expanders.

Parameters

col (wx.dataview.DataViewColumn) –



SetHeaderAttr(self, attr)

Set custom colours and/or font to use for the header.

This method allows customizing the display of the control header (it does nothing if DV_NO_HEADER style is used).

Currently it is only implemented in the generic version and just returns False without doing anything elsewhere.

Parameters

attr (wx.ItemAttr) – The attribute defining the colour(s) and font to use. It can be default, in which case the attributes are reset to their default values.

Return type

bool

Returns

True if the attributes were updated, False if the method is not implemented or failed.

New in version 4.1/wxWidgets-3.1.1.



SetIndent(self, indent)

Sets the indentation.

Parameters

indent (int) –



SetRowHeight(self, rowHeight)

Sets the row height.

This function can only be used when all rows have the same height, i.e. when wx.dataview.DV_VARIABLE_LINE_HEIGHT flag is not used.

Currently this is implemented in the generic and native GTK and macOS (since 3.1.1) versions.

Also notice that this method can only be used to increase the row height compared with the default one (as determined by the return value of DataViewRenderer.GetSize()), if it is set to a too small value then the minimum required by the renderers will be used.

Parameters

rowHeight (int) –

Return type

bool

Returns

True if the line height was changed or False otherwise.

New in version 2.9.2.



SetSelections(self, sel)

Sets the selection to the array of DataViewItems.

Parameters

sel (DataViewItemArray) –



ToggleSortByColumn(self, column)

Toggle sorting by the given column.

This method should only be used when sorting by multiple columns is allowed, see AllowMultiColumnSort , and does nothing otherwise.

Parameters

column (int) –

New in version 4.1/wxWidgets-3.1.0.



Unselect(self, item)

Unselect the given item.

Parameters

item (wx.dataview.DataViewItem) –



UnselectAll(self)

Unselect all item.

This method only has effect if multiple selections are allowed.


Properties

ColumnCount

See GetColumnCount



Columns

See GetColumns



CountPerPage

See GetCountPerPage



CurrentColumn

See GetCurrentColumn



CurrentItem

See GetCurrentItem and SetCurrentItem



ExpanderColumn

See GetExpanderColumn and SetExpanderColumn



Indent

See GetIndent and SetIndent



MainWindow

See GetMainWindow



Model

See GetModel



SelectedItemsCount

See GetSelectedItemsCount



Selection

See GetSelection



Selections

See GetSelections and SetSelections



SortingColumn

See GetSortingColumn



TopItem

See GetTopItem
