wx.lib.agw.piectrl.ProgressPie

ProgressPie tries to emulate the behavior of ProgressDialog, but using a pie chart instead of a gauge.

Class Hierarchy

Inheritance diagram for class ProgressPie:

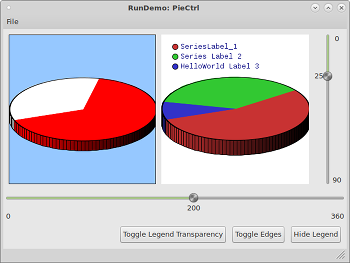

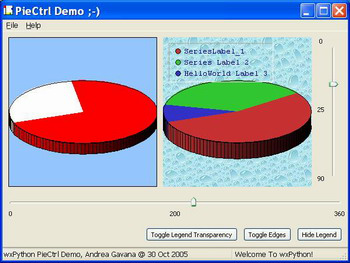

Control Appearance

wxMSW

wxMAC

wxGTK

Known Superclasses

wx.lib.agw.piectrl.PieCtrl

Methods Summary

__init__	Default class constructor.
GetFilledColour	Returns the colour that progressively fills the ProgressPie.
GetMaxValue	Returns the ProgressPie maximum value.
GetUnfilledColour	Returns the colour that is filled.
GetValue	Returns the ProgressPie value.
SetFilledColour	Sets the colour that progressively fills the ProgressPie .
SetMaxValue	Sets the ProgressPie maximum value.
SetUnfilledColour	Sets the colour that is filled.
SetValue	Sets the ProgressPie value.

Class API

class ProgressPie(PieCtrl)

ProgressPie tries to emulate the behavior of ProgressDialog, but using a pie chart instead of a gauge.

Methods

__init__(self, parent, maxvalue, value, id=wx.ID_ANY, pos=wx.DefaultPosition, size=wx.DefaultSize, style=0)

Default class constructor.

Parameters:

• parent – the PieCtrl parent. Must not be None;

• id – window identifier. A value of -1 indicates a default value;

• pos – the control position. A value of (-1, -1) indicates a default position, chosen by either the windowing system or wxPython, depending on platform;

• size – the control size. A value of (-1, -1) indicates a default size, chosen by either the windowing system or wxPython, depending on platform;

• style – the window style (unused);

• name – the window name.

---

GetFilledColour(self)

Returns the colour that progressively fills the ProgressPie.

---

GetMaxValue(self)

Returns the ProgressPie maximum value.

---

GetUnfilledColour(self)

Returns the colour that is filled.

---

GetValue(self)

Returns the ProgressPie value.

---

SetFilledColour(self, colour)

Sets the colour that progressively fills the ProgressPie .

Parameters:

colour – a valid wx.Colour object.

---

SetMaxValue(self, value)

Sets the ProgressPie maximum value.

Parameters:

value – a floating point number representing the maximum value.

---

SetUnfilledColour(self, colour)

Sets the colour that is filled.

Parameters:

colour – a valid wx.Colour object.

---

SetValue(self, value)

Sets the ProgressPie value.

Parameters:

value – a floating point number representing the new value.
