wx.lib.agw.cubecolourdialog.CubeColourDialog

This is the CubeColourDialog main class implementation.

Class Hierarchy

Inheritance diagram for class CubeColourDialog:

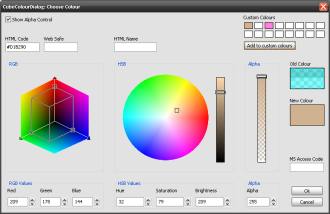

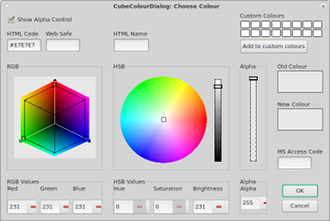

Control Appearance

wxMSW

wxMAC

wxGTK

Known Superclasses

wx.Dialog

Methods Summary

__init__	Default class constructor.
AssignColourValue	Common code to handle spin control changes.
CalcCuboid	Calculates the RGB colour cube vertices.
CalcRects	Calculates the brightness control user-selected rect.
CalcSlopes	Calculates the line slopes in the RGB colour cube.
DoLayout	Layouts all the controls in the CubeColourDialog.
DrawAll	Draws all the custom controls after a colour change.
DrawAlpha	Refreshes the alpha channel control.
DrawBright	Refreshes the brightness control.
DrawHSB	Refreshes the HSB colour wheel.
DrawMarkers	Draws the markers for all the controls.
DrawRGB	Refreshes the RGB colour cube.
GetAGWWindowStyleFlag	Returns the CubeColourDialog window style flags.
GetColourData	Returns a wxPython compatible wx.ColourData.
GetHSVAColour	Returns a 4-elements tuple of hue, saturation, brightness, alpha components.
GetRGBAColour	Returns a 4-elements tuple of red, green, blue, alpha components.
InitDialog	Initialize the CubeColourDialog.
OnAddCustom	Handles the Add Custom wx.EVT_BUTTON event for CubeColourDialog.
OnAlphaSpin	Handles the wx.EVT_SPINCTRL event for the alpha channel.
OnCancel	Handles the Cancel wx.EVT_BUTTON event for CubeColourDialog.
OnCloseWindow	Handles the wx.EVT_CLOSE event for CubeColourDialog.
OnKeyUp	Handles the wx.EVT_CHAR_HOOK event for CubeColourDialog.
OnOk	Handles the Ok wx.EVT_BUTTON event for CubeColourDialog.
OnShowAlpha	Shows/hides the alpha channel control in CubeColourDialog.
OnSpinCtrl	Handles the wx.EVT_SPINCTRL event for RGB and HSB colours.
SetAGWWindowStyleFlag	Sets the CubeColourDialog window style flags.
SetCodes	Sets the HTML/MS Access codes (if any) in the text controls.
SetPanelColours	Assigns colours to the colour panels.
SetProperties	Sets some initial properties for CubeColourDialog (sizes, values).
SetSpinVals	Sets the values for all the spin controls.
ShowModal	Shows CubeColourDialog as a modal dialog. Program flow does

Class API

class CubeColourDialog(wx.Dialog)

This is the CubeColourDialog main class implementation.

Methods

__init__(self, parent, colourData=None, agwStyle=CCD_SHOW_ALPHA)

Default class constructor.

Parameters:

• colourData – a standard wx.ColourData (as used in wx.ColourDialog);

• agwStyle – can be either None or CCD_SHOW_ALPHA, depending if you want to hide the alpha channel control or not.

---

AssignColourValue(self, attribute, colourVal, maxVal, position)

Common code to handle spin control changes.

---

CalcCuboid(self)

Calculates the RGB colour cube vertices.

---

CalcRects(self)

Calculates the brightness control user-selected rect.

---

CalcSlopes(self)

Calculates the line slopes in the RGB colour cube.

---

DoLayout(self)

Layouts all the controls in the CubeColourDialog.

---

DrawAll(self)

Draws all the custom controls after a colour change.

---

DrawAlpha(self)

Refreshes the alpha channel control.

---

DrawBright(self)

Refreshes the brightness control.

---

DrawHSB(self)

Refreshes the HSB colour wheel.

---

DrawMarkers(self, dc=None)

Draws the markers for all the controls.

Parameters:

dc – an instance of wx.DC. If dc is None, a ClientDC is created on the fly.

---

DrawRGB(self)

Refreshes the RGB colour cube.

---

GetAGWWindowStyleFlag(self)

Returns the CubeColourDialog window style flags.

See also

SetAGWWindowStyleFlag for a list of possible flags.

---

GetColourData(self)

Returns a wxPython compatible wx.ColourData.

---

GetHSVAColour(self)

Returns a 4-elements tuple of hue, saturation, brightness, alpha components.

---

GetRGBAColour(self)

Returns a 4-elements tuple of red, green, blue, alpha components.

---

InitDialog(self)

Initialize the CubeColourDialog.

---

OnAddCustom(self, event)

Handles the Add Custom wx.EVT_BUTTON event for CubeColourDialog.

Parameters:

event – a CommandEvent event to be processed.

---

OnAlphaSpin(self, event)

Handles the wx.EVT_SPINCTRL event for the alpha channel.

Parameters:

event – a SpinEvent event to be processed.

---

OnCancel(self, event)

Handles the Cancel wx.EVT_BUTTON event for CubeColourDialog.

Parameters:

event – a CommandEvent event to be processed.

---

OnCloseWindow(self, event)

Handles the wx.EVT_CLOSE event for CubeColourDialog.

Parameters:

event – a CloseEvent event to be processed.

---

OnKeyUp(self, event)

Handles the wx.EVT_CHAR_HOOK event for CubeColourDialog.

Parameters:

event – a KeyEvent event to be processed.

---

OnOk(self, event)

Handles the Ok wx.EVT_BUTTON event for CubeColourDialog.

Parameters:

event – a CommandEvent event to be processed.

---

OnShowAlpha(self, event)

Shows/hides the alpha channel control in CubeColourDialog.

Parameters:

event – a CommandEvent event to be processed.

---

OnSpinCtrl(self, event)

Handles the wx.EVT_SPINCTRL event for RGB and HSB colours.

Parameters:

event – a SpinEvent event to be processed.

---

SetAGWWindowStyleFlag(self, agwStyle)

Sets the CubeColourDialog window style flags.

Parameters:

agwStyle – can only be CCD_SHOW_ALPHA or None.

---

SetCodes(self)

Sets the HTML/MS Access codes (if any) in the text controls.

---

SetPanelColours(self)

Assigns colours to the colour panels.

---

SetProperties(self)

Sets some initial properties for CubeColourDialog (sizes, values).

---

SetSpinVals(self)

Sets the values for all the spin controls.

---

ShowModal(self)

Shows CubeColourDialog as a modal dialog. Program flow does not return until the dialog has been dismissed with EndModal.

Note

Overridden from Dialog.
