wx.html.HtmlContainerCell¶

The wx.html.HtmlContainerCell class is an implementation of a cell that may contain more cells in it.

It is heavily used in the HTML layout algorithm.

Class Hierarchy¶

Inheritance diagram for class HtmlContainerCell:

Methods Summary¶

`__init__`	Constructor.
`Detach`	Detach a child cell.
`GetAlignHor`	Returns container’s horizontal alignment.
`GetAlignVer`	Returns container’s vertical alignment.
`GetBackgroundColour`	Returns the background colour of the container or `NullColour` if no background colour is set.
`GetIndent`	Returns the indentation.
`GetIndentUnits`	Returns the units of indentation for ind where ind is one of the `HTML_INDENT_` constants.
`InsertCell`	Inserts a new cell into the container.
`SetAlign`	Sets the container’s alignment (both horizontal and vertical) according to the values stored in tag.
`SetAlignHor`	Sets the container’s horizontal alignment.
`SetAlignVer`	Sets the container’s vertical alignment.
`SetBackgroundColour`	Sets the background colour for this container.
`SetBorder`	Sets the border (frame) colours.
`SetIndent`	Sets the indentation (free space between borders of container and subcells).
`SetMinHeight`	Sets minimal height of the container.
`SetWidthFloat`	Sets floating width adjustment.

Properties Summary¶

`AlignHor`	See `GetAlignHor` and `SetAlignHor`
`AlignVer`	See `GetAlignVer` and `SetAlignVer`
`BackgroundColour`	See `GetBackgroundColour` and `SetBackgroundColour`

Class API¶

class wx.html.HtmlContainerCell(HtmlCell)¶

Possible constructors:

HtmlContainerCell(parent)

The HtmlContainerCell class is an implementation of a cell that may contain more cells in it.

Methods¶

__init__(self, parent)¶

Constructor.

parent is pointer to parent container or None.

Parameters:: parent (wx.html.HtmlContainerCell) –

Detach(self, cell)¶

Detach a child cell.

Detaching a cell removes it from this container and allows reattaching it to another one by using InsertCell . Alternatively, this method can be used to selectively remove some elements of the HTML document tree by deleting the cell after calling it.

Parameters:: cell (wx.html.HtmlCell) – Must be non-null and an immediate child of this cell.

New in version 4.1/wxWidgets-3.1.2.

GetAlignHor(self)¶

Returns container’s horizontal alignment.

Return type:: int

GetAlignVer(self)¶

Returns container’s vertical alignment.

Return type:: int

GetBackgroundColour(self)¶

Returns the background colour of the container or NullColour if no background colour is set.

Return type:: Colour

GetIndent(self, ind)¶

Returns the indentation.

ind is one of the HTML_INDENT_ constants.

Parameters:: ind (int) –
Return type:: int

Note

You must call GetIndentUnits with same ind parameter in order to correctly interpret the returned integer value. It is NOT always in pixels!

GetIndentUnits(self, ind)¶

Returns the units of indentation for ind where ind is one of the HTML_INDENT_ constants.

Parameters:: ind (int) –
Return type:: int

InsertCell(self, cell)¶

Inserts a new cell into the container.

Note that the container takes ownership of the cell and will delete it when it itself is destroyed.

Parameters:: cell (wx.html.HtmlCell) –

SetAlign(self, tag)¶

Sets the container’s alignment (both horizontal and vertical) according to the values stored in tag.

(Tags ALIGN parameter is extracted.) In fact it is only a front-end to SetAlignHor and SetAlignVer .

Parameters:: tag (wx.html.HtmlTag) –

SetAlignHor(self, al)¶

Sets the container’s horizontal alignment.

During wx.html.HtmlCell.Layout each line is aligned according to al value.

Parameters:

al (int) – new horizontal alignment. May be one of these values:

wx.html.HTML_ALIGN_LEFT: lines are left-aligned (default)
wx.html.HTML_ALIGN_JUSTIFY: lines are justified
wx.html.HTML_ALIGN_CENTER: lines are centered
wx.html.HTML_ALIGN_RIGHT: lines are right-aligned

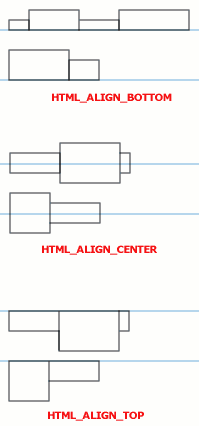

SetAlignVer(self, al)¶

Sets the container’s vertical alignment.

This is per-line alignment!

Parameters:

al (int) – new vertical alignment. May be one of these values:

wx.html.HTML_ALIGN_BOTTOM: cells are over the line (default)
wx.html.HTML_ALIGN_CENTER: cells are centered on line
wx.html.HTML_ALIGN_TOP: cells are under the line

SetBackgroundColour(self, clr)¶

Sets the background colour for this container.

Parameters:: clr (wx.Colour) –

SetBorder(self, clr1, clr2, border=1)¶

Sets the border (frame) colours.

A border is a rectangle around the container.

Parameters:

clr1 (wx.Colour) – Colour of top and left lines
clr2 (wx.Colour) – Colour of bottom and right lines
border (int) – Size of the border in pixels

SetIndent(self, i, what, units=HTML_UNITS_PIXELS)¶

Sets the indentation (free space between borders of container and subcells).

Parameters:

i (int) – Indentation value.
what (int) – Determines which of the four borders we’re setting. It is wx.OR combination of following constants:
- wx.html.HTML_INDENT_TOP: top border
- wx.html.HTML_INDENT_BOTTOM: bottom
- wx.html.HTML_INDENT_LEFT: left
- wx.html.HTML_INDENT_RIGHT: right
- wx.html.HTML_INDENT_HORIZONTAL: left and right
- wx.html.HTML_INDENT_VERTICAL: top and bottom
- wx.html.HTML_INDENT_ALL: all 4 borders
units (int) – Units of i. This parameter affects interpretation of value.
- wx.html.HTML_UNITS_PIXELS: i is number of pixels
- wx.html.HTML_UNITS_PERCENT: i is interpreted as percents of width of parent container

SetMinHeight(self, h, align=HTML_ALIGN_TOP)¶

Sets minimal height of the container.

When container’s wx.html.HtmlCell.Layout is called, m_Height is set depending on layout of subcells to the height of area covered by layed-out subcells. Calling this method guarantees you that the height of container is never smaller than h - even if the subcells cover much smaller area.

Parameters:

h (int) – The minimal height.
align (int) – If height of the container is lower than the minimum height, empty space must be inserted somewhere in order to ensure minimal height. This parameter is one of HTML_ALIGN_TOP , HTML_ALIGN_BOTTOM , HTML_ALIGN_CENTER . It refers to the contents, not to the empty place.

SetWidthFloat(self, *args, **kw)¶

Overloaded Implementations:

SetWidthFloat (self, w, units)

Sets floating width adjustment.

The normal behaviour of container is that its width is the same as the width of parent container (and thus you can have only one sub-container per line). You can change this by setting the floating width adjustment.

Parameters:

w (int) – Width of the container. If the value is negative it means complement to full width of parent container. E.g.:
```
SetWidthFloat(-50, wx.html.HTML_UNITS_PIXELS)
```
sets the width of container to parent’s width minus 50 pixels. This is useful when creating tables - you can call SetWidthFloat(50) and SetWidthFloat(-50).
units (int) – Units of w This parameter affects the interpretation of value.
- wx.html.HTML_UNITS_PIXELS: w is number of pixels
- wx.html.HTML_UNITS_PERCENT: w is interpreted as percents of width of parent container

SetWidthFloat (self, tag, pixel_scale=1.0)

Sets floating width adjustment.

The normal behaviour of container is that its width is the same as the width of parent container (and thus you can have only one sub-container per line). You can change this by setting the floating width adjustment.

Parameters:

tag (wx.html.HtmlTag) – In the second version of method, w and units info is extracted from tag’s WIDTH parameter.
pixel_scale (float) – This is number of real pixels that equals to 1 HTML pixel.

Properties¶

AlignHor¶: See GetAlignHor and SetAlignHor

AlignVer¶: See GetAlignVer and SetAlignVer

BackgroundColour¶: See GetBackgroundColour and SetBackgroundColour
