phoenix_title wx.PageSetupDialog

This class represents the page setup common dialog.

The page setup dialog contains controls for paper size (letter, A4, A5 etc.), orientation (landscape or portrait), and, only under Windows currently, controls for setting left, top, right and bottom margin sizes in millimetres.

The exact appearance of this dialog varies among the platforms as a native dialog is used when available (currently the case for all major platforms).

When the dialog has been closed, you need to query the wx.PageSetupDialogData object associated with the dialog.

Note that the wx.OK and Cancel buttons do not destroy the dialog; this must be done by the application.

See also

Printing Framework Overview, wx.PrintDialog, wx.PageSetupDialogData


class_hierarchy Class Hierarchy

Inheritance diagram for class PageSetupDialog:

appearance Control Appearance

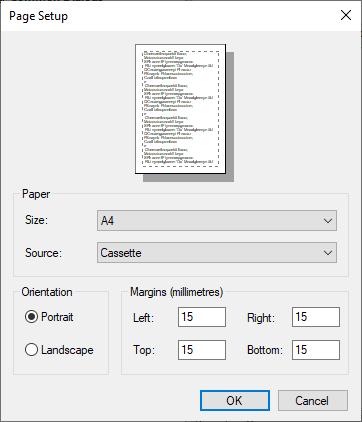

wxMSW

wxMSW

wxMAC

wxMAC

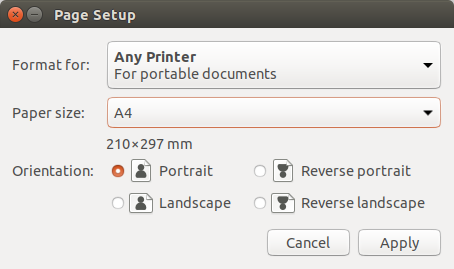

wxGTK

wxGTK


method_summary Methods Summary

__init__

Constructor.

GetPageSetupData

Returns the wx.PageSetupDialogData object associated with the dialog.

ShowModal

Shows the dialog, returning ID_OK if the user pressed wx.OK, and ID_CANCEL otherwise.


property_summary Properties Summary

PageSetupData

See GetPageSetupData


api Class API

class wx.PageSetupDialog(Object)

Possible constructors:

PageSetupDialog(parent, data=None)

This class represents the page setup common dialog.


Methods

__init__(self, parent, data=None)

Constructor.

Pass a parent window, and optionally a pointer to a block of page setup data, which will be copied to the print dialog’s internal data.

Parameters:


GetPageSetupData(self)

Returns the wx.PageSetupDialogData object associated with the dialog.

Return type:

wx.PageSetupDialogData



ShowModal(self)

Shows the dialog, returning ID_OK if the user pressed wx.OK, and ID_CANCEL otherwise.

Return type:

int


Properties

PageSetupData

See GetPageSetupData
